Overview

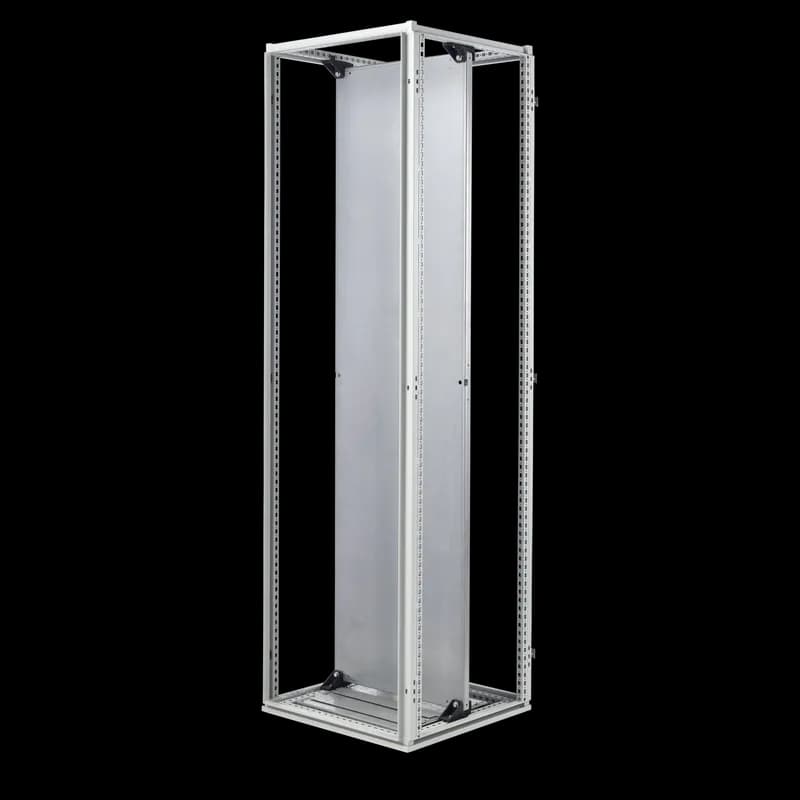

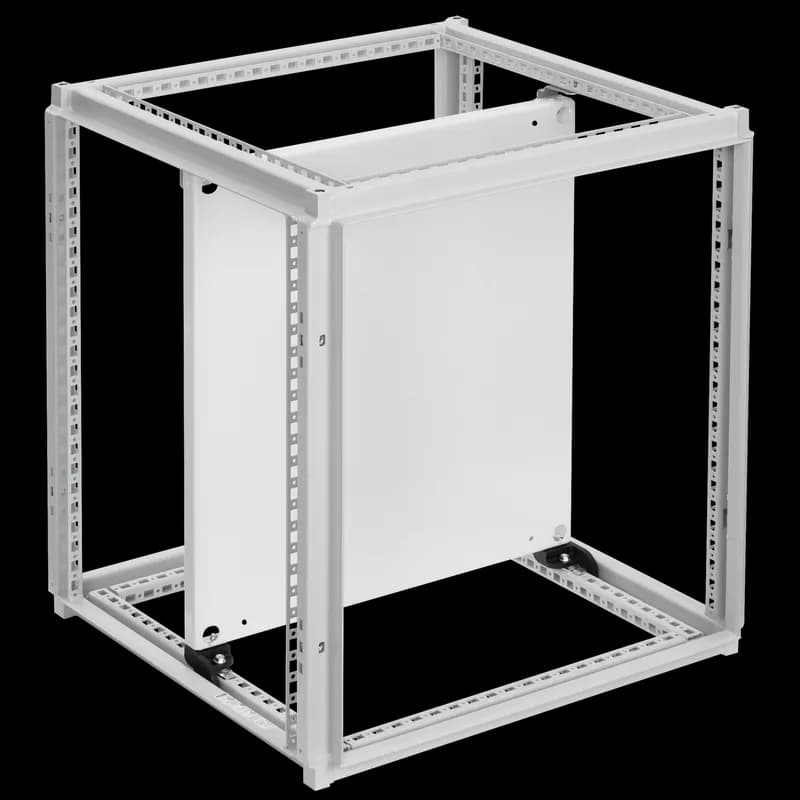

- Accommodates five loading options: vertical front, vertical side, vertical rear, horizontal front (frame over subpanel), horizontal rear (subpanel lowered into frame)
- High space efficiency ratio (HxW of subpanel)/(HxW of frame) of 84 percent
- Mounting subpanel is securely fastened at the top and bottom of the enclosure; subpanels less than 1200mm wide include four sets of EZ-Load Glide Blocks, four BV-M6 fasteners (block to frame) and four M12 Hex Bolts (subpanel to block); Subpanels 1200mm an
- Subpanels greater than 1000mm wide are 11 gauge (3.0 mm) mild steel, while subpanels 100mm or narrower are 12 gauge (2.5mm); conductive or white painted finish available
- Subpanels can be mounted at any depth in 25-mm increments (front to back); accommodates back-to-back and fully recessed rear positions
- Side-mount panels must be used for the sides of the enclosure; they can be installed on the interior sides of frames
- Optional panel support bracket available for applications requiring more support in the center of the subpanel; this is required if the enclosure will be tipped in transit or if the panel is not located at the bottom of the enclosure on the glide blocks
- Panels can be installed in the rearmost position, or positioned so joined enclosures provide a continuous mounting surface without requiring joining panels
- High space efficiency ratio (HxW of subpanel)/(HxW of frame) of 84 percent
- Side-mount panels must be used for the sides of the enclosure; they can be installed on the interior sides of frames
Specifications
Application | Controls and Drives; Power Distribution |
Color | Unpainted |
Finish | Galvanized |
Fits Frame | 1400x800 mm |
Material | Mild Steel |
Material | Conductive Material |
Mounting Type | EZ-Load Mounting System |
Product Family | ProLine |
Series | ProLine G2 |
Size | 1400x800 mm |
Thickness | 12 ga |
Thickness | 2.66 mm |
Type | Galvanized |
Weight | 58 lb |
Package Dimensions (L x W x H) | 59 IN x 34 IN x 2.5 IN |
Package Dimensions (L x W x H) | 149.86 cm x 86.36 cm x 6.35 cm |
Package Weight (Imperial) | 58.000 L |
Package Weight (Metric) | 26.309 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
How to Install the P2P148G PROLINE G2 Enclosure
Installation guide for mounting and securing the P2P148G PROLINE G2 enclosure.
Estimated time: 1h
Tools needed:
Measuring tape, Level, Drill, Screwdriver, Wrench
Supplies needed:
Mounting hardware, Gasket, Sealing screws
- Prepare the Mounting Location
Select a suitable location for the enclosure. Ensure the mounting surface is level and can support the weight of the enclosure. Use a measuring tape to mark the desired mounting points.
- Drill Mounting Holes
Using the enclosure as a template, mark the drill hole locations on the mounting surface. Drill the holes according to the size of the mounting hardware. Ensure the holes are perpendicular to the surface.
- Mount the Enclosure
Position the enclosure over the drilled holes. Insert the mounting hardware through the enclosure's mounting brackets and into the holes on the surface. Secure the enclosure using a wrench or screwdriver, ensuring it is firmly attached and level.
- Install the Gasket
If not pre-installed, carefully install the gasket around the perimeter of the enclosure door or opening. Ensure a tight and even seal to maintain the enclosure's environmental rating. Refer to the datasheet for specific gasket installation instructions.
- Secure the Door and Sealing Screws
Close the enclosure door and secure it using the provided latches or locking mechanism. Install any sealing screws as indicated in the manual to ensure a proper seal. Verify that all fasteners are tightened appropriately, but do not overtighten.
