Overview

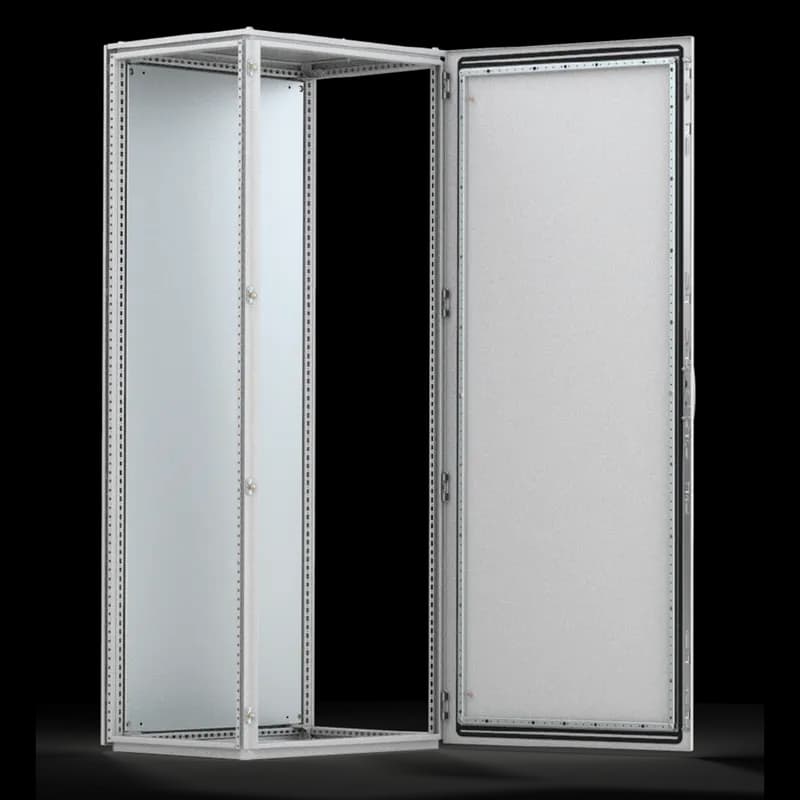

- Comprehensive, ready-to-use industrial enclosure package
- Durable light gray painted steel construction
- Type 12 rating for protection against dust and water
- Includes frame, 2 solid doors, lock, subpanel, gland plate, lifting eyes
- Generous dimensions: 2200x1000x600mm for ample component space
- Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
- 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
- Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
- Two grounding studs present on each door
- Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
Specifications
Application | Power Distribution; Controls and Drives |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 23.82 |
Depth | 605 |
Door Quantity | 2 |
Finish | Powder Coated |
Height | 86.69 |
Height | 2,202 |
Material | Mild Steel |
Max Rack Mount Unit | 47 |
Max Subpanel Size | 82.9 x 36.5 in |
Max Subpanel Size | 2106 x 928 mm |
Product Family | ProLine |
Type | Mild Steel Modular Industrial Enclosures |
Width | 39.67 |
Width | 1,008 |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
