Contact for Pricing

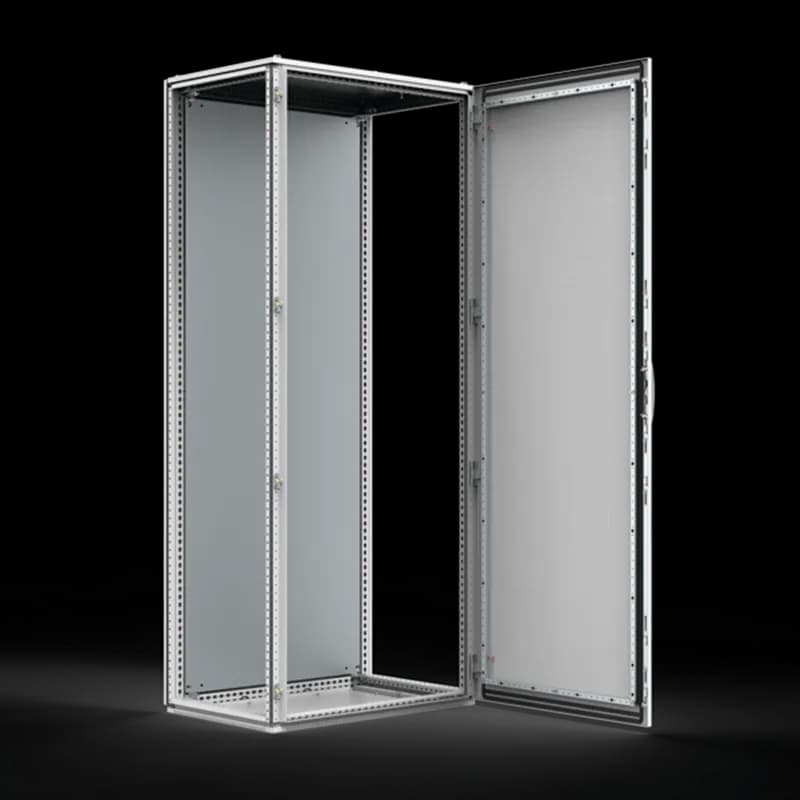

Overview
- 12-gauge (2.5 mm) roll-formed steel with welded corners, and hybrid frame profile for superior performance under load
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Enclosures with a width of 1200mm or less have a single-piece rear cover, and can accommodate a fully-recessed mounting subpanel; enclosures with a width of greater than 1200mm have two rear covers that affix to a removable center upright/vertical combina
- Gasket is seamless polyurethane providing a water-tight, dust-tight seal against moisture and contaminants; UL component recognized, CSA compliant
- Door bar system present on all doors (including window doors)
- Single/primary door includes Smooth Glide Latching System, 3-point roller latch system with timed latch engagement, for enclosures greater than or equal to 1000 mm in height; system ensures a solid and repeatable seal with a low closure force
- 2-door enclosures include overlapping double doors to provide full-width open front, with a secondary door that latches with two levers
- Reversible hinging on single doors (default left hinge), and on overlapping double doors (default right door primary door)
- Two grounding studs present on each door
- Low-Profile Flush Swing Handle with key lock on standard versions; double bit lock on 'E' versions; other handle options available (sold separately)
Specifications
Application | Power Distribution; Controls and Drives |
Color | Light Gray |
Color | Lt Gray |
Color Code | RAL 7035 |
Depth | 23.82 |
Depth | 605 |
Door Quantity | 1 |
Finish | Powder Coated |
Height | 70.94 |
Height | 1,802 |
Material | Steel |
Material | Mild Steel |
Max Rack Mount Unit | 38 |
Max Subpanel Size | 1706 x 728 mm |
Max Subpanel Size | 67.2 x 28.7 in |
Nema Rating | Type 12 |
Product Family | ProLine |
Series | ProLine G2 Industrial Packages |
Size | 1800x800x600 |
Type | Mild Steel Modular Industrial Enclosures |
Weight | 341 lb |
Width | 31.8 |
Width | 808 |
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
LN20DA
1/2 Inch, 90 Degree, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
Frequently Asked Questions
What are the available frame sizes for ProLine G2?
Frame heights range from 600 mm to 2200 mm, with various widths and depths.
What frame sizes are available for ProLine G2?
Available frame heights range from 600 mm to 2200 mm, with various widths and depths.
What materials are used for the ProLine G2 frame?
The frame is made from 12 gauge (2.5 mm) roll-formed steel.
What materials are used for the ProLine G2 frame?
The frame is made of 12 gauge (2.5 mm) roll-formed steel with welded corner blocks.
What is the load rating of the ProLine G2 frame?
The ProLine G2 frame has a 15% higher load rating than the competition.
What types of applications does ProLine G2 support?
ProLine G2 supports industrial applications, Type 3R, and Seismic applications.
How do I configure my ProLine G2 enclosure?
Select components from the configuration handbook and send it to your nVent representative.
What accessories are available for cable management?
Accessories include cable entry cabinets, tie-down brackets, and wire management rails.
How do I contact nVent for support?
You can contact nVent via email at [email protected] or call their support numbers.
What is the load rating of the ProLine G2 frame?
The ProLine G2 frame has a 15% higher load rating than the competition.
