Contact for Pricing
Overview

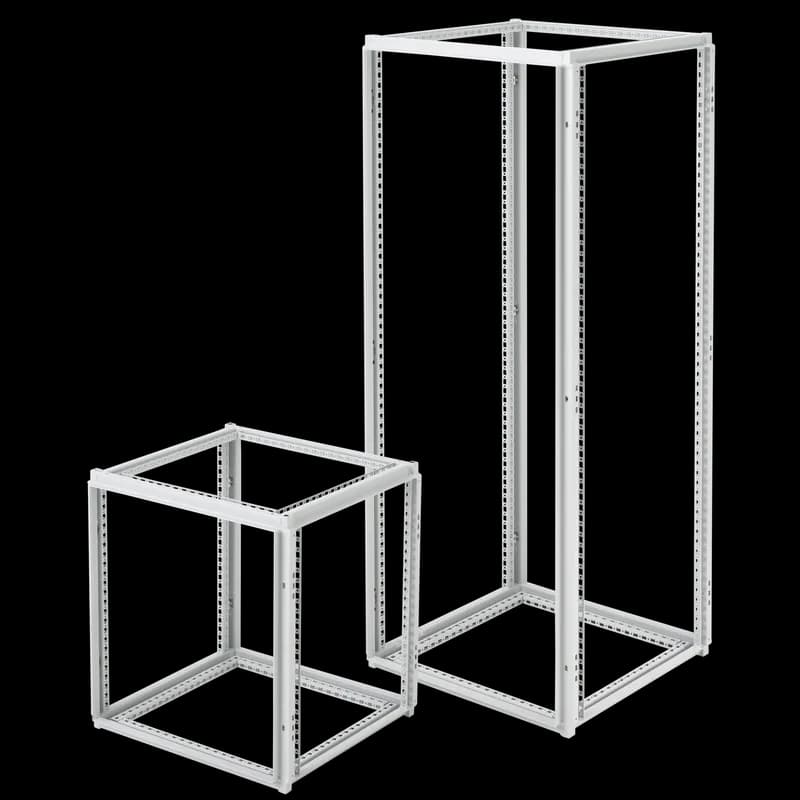

- 12 gauge (2.5mm), roll-formed steel frame with welded steel corners and hybrid frame profile for superior performance under load
- RAL 7035 textured light-gray polyester powder paint finish
- Frame features a 25-mm DIN standard, alternating rectangular and round hole pattern
- Flange trough collar on door and side openings deflect dust and debris away from the enclosure interior
- Removable rear center vertical/support for frames greater than 1200-mm in width; there is no front center vertical, providing full access for subpanel installation
- Integral frame channels support the full weight of the mounting subpanel, which comes with the EZ Load Glide Block system for multiple subpanel installation methods
- Individual frames designed for joining/baying in multiple directions with the inclusion of joining kits
- Provisions for mounting subpanel, rack mounting and grid/rail system mounting to support many unique customer applications
- Appropriate gasketed door(s) and covers are required to maintain a Type-12 environmental rating, sold separately
- Accommodates 25-mm DIN standard; rectangular frame holes designed for BV-M6 fastener or metric cage nut fasteners; round frame holes accommodate M5 self-tapping screws and allow numerous grounding locations using M5 thread-forming screws
Specifications
Application | Controls and Drives; Power Distribution |
Color | Light Gray |
Color Code | RAL 7035 |
Finish | Powder Coated |
Material | Mild Steel |
Max Rack Mount Unit | 28 |
Max Subpanel Size | 51.4 x 44.4 in |
Max Subpanel Size | 1306 x 1128 mm |
Product Family | ProLine |
Thickness | 12 ga |
Thickness | 2.66 mm |
Type | Internal Mounting for ProLine Industrial Enclosures |
Weight | 84 lb |
Package Dimensions (L x W x H) | 63 IN x 54 IN x 26 IN |
Package Dimensions (L x W x H) | 160.02 cm x 137.16 cm x 66.04 cm |
Package Weight (Imperial) | 130.0000 L |
Package Weight (Metric) | 58.9680 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the PF1885 Enclosure
This guide provides step-by-step instructions for safely installing the PF1885 enclosure, ensuring proper handling and setup.
Estimated time: 1h
Tools needed:
Forklift, Screwdriver, Multimeter
Supplies needed:
3000 lb-rated chain or strap, Mounting screws
- Prepare the installation area
Clear the installation route of all obstructions and ensure that workers are positioned at a safe distance from the enclosure's height.
- Secure the enclosure for transport
Using a forklift, insert a 3000 lb-rated chain or strap through the eye bolts on top of the enclosure and securely fasten it to the forklift mast to prevent tipping during transport.
- Lift and position the enclosure
Carefully lift the enclosure with the forklift, ensuring it is clear of the ground. Position it at the designated installation site, maintaining caution to avoid contact with fixed objects.
- Mount the enclosure
Secure the enclosure to the mounting surface using the provided mounting screws, ensuring it is level and firmly attached.
- Verify installation
Check that the enclosure is stable and securely mounted. Use a multimeter to verify any electrical connections if applicable.
