Overview

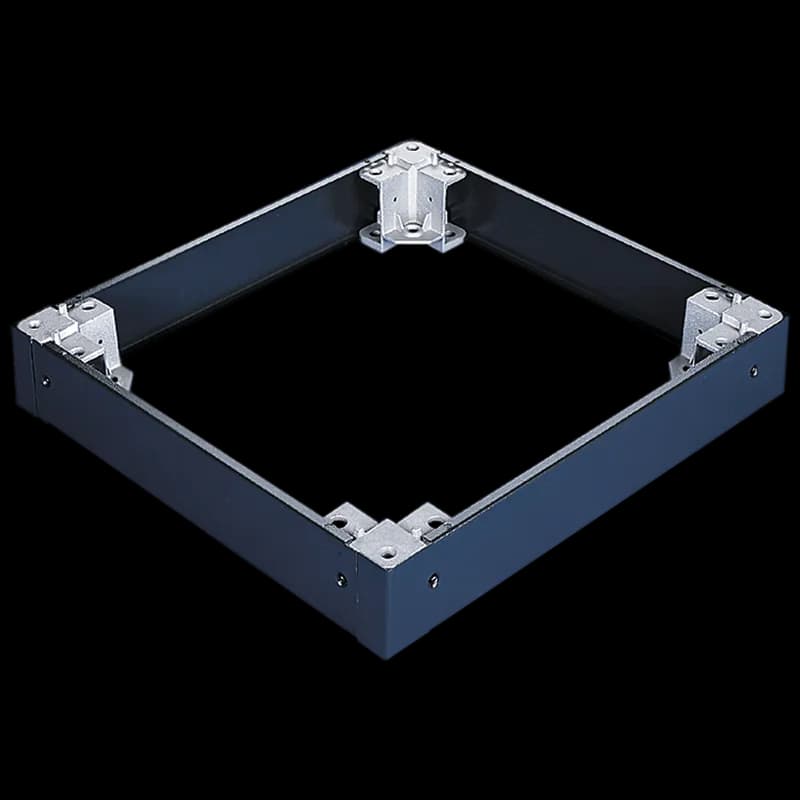

- Four access panels for cable management options at the base of the enclosure
- Sturdy cast aluminum corner supports for superior performance under load
- Corner blocks can be installed onto the base of the frame independent of the cover plates, enabling the cover plates to be attached after integration and just prior to shipment
- Stackable up to 400mm in height using Plinth Base Stacking Kit (not included)
- 100 mm or 200 mm options
- To maintain a NEMA Type 12 environmental rating, gland plate must also be used in the base of the enclosure
- Installation hardware included
- Cover plates are 16-gauge (1.5 mm) steel
Specifications
Application | Power Distribution; Controls and Drives |
Color | Black |
Color | Jet Black |
Color Code | RAL 9005 |
Depth | 14.33 |
Depth | 364 |
Finish | Powder Coated |
Fits Frame | 1600x400 mm |
Height | 3.94 |
Height | 100 |
Material | Steel |
Material | Mild Steel |
Product Family | ProLine |
Series | ProLine G2 |
Size | 1600x400mm |
Thickness | 1.52 mm |
Thickness | 16 ga |
Type | 100mm |
Weight | 20 lb |
Width | 62.95 |
Width | 1,599 |
Package Dimensions (L x W x H) | 73.75 IN x 7.5 IN x 6.75 IN |
Package Dimensions (L x W x H) | 187.325 cm x 19.05 cm x 17.145 cm |
Package Weight (Imperial) | 20.000 L |
Package Weight (Metric) | 9.072 kg |
