Overview
- Narrow design accommodates 12-inch (300-mm) deep cabinets
- Level 1 Protection Includes: Protective coatings only applied to copper tubing and coils on the condenser (exterior facing) side as well as thermostat coatings
- Attractive industrial design with minimal use of visible fasteners
- Level 2 Protection Include: Everything that was coated in Level 1, plus protective coatings applied to the evaporator (interior facing ) side and an additional wrap around the thermostat
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Narrow design accommodates 12-inch deep cabinets
- R407C, R513A or R134a refrigerants
- Models for 115, 230 and 400/460 3-phase VAC power input
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C (125 F/52 C on N28 Series)
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
Specifications
Ambient Temperature | 40 Deg C |
Ambient Temperature | -40-131 °F |
Amperage Rating | 3.4/3.6 A |
Application | Controls and Drives;Power Distribution |
Btu Rating | 11,000 |
Color | Gray |
Color | Lt Gray |
Color | Light Gray |
Color Code | RAL 7035 |
Corrosion Resistant | No |
Depth | 356 mm |
Depth | 14 in |
Finish | Powder Coated |
Frequency Rating | 50/60 Hz |
Frequency Rating, Maximum | 60 Hz |
Frequency Rating, Minimum | 50 Hz |
Height | 1,092 mm |
Height | 43 in |
Material | Mild Steel |
Material | Steel |
Max Current | 3.6 A |
Mechanical Advantage | Galvanized Sheet Metal Standard (Optional: Stainless Steel) |
Mounting | Side wall |
Mounting Type | Floor and Wall Mount |
NEMA Rating | 4 Watertight |
Nominal Capacity Btu/h | 11,000 Btu/h |
Nominal Capacity Watts | 3,223 W |
Nominal Voltage | 460 V |
Number Of Phases | 3 |
Operating Temperature | -40-55 °C |
Operating Temperature | -40-131 |
Operating Temperature | -40-55 |
Outdoor Installation | Yes |
Phase | 3 |
Power | 1678/2107 W |
Product Family | SpectraCool |
Protection Rating | NEMA Type 4 |
Refrigerant | R513A |
Remote Access Control | No |
Series | SpectraCool Narrow |
Size | 11000BTU |
Thickness | 1.21 mm |
Thickness | 18 ga |
Thickness | 51.40mm (2.024") |
Type | Air Conditioners |
Voltage AC | 400-460 V |
Voltage Rating | 460 V |
Weight | 62.6 kg |
Weight | 138 lb |
Width | 292 mm |
Width | 11.5 in |
Package Dimensions (L x W x H) | 17.75 IN x 13.5 IN x 45.5 IN |
Package Dimensions (L x W x H) | 45.085 cm x 34.29 cm x 115.57 cm |
Package Weight (Imperial) | 138.000 L |
Package Weight (Metric) | 62.597 kg |
N431246G360

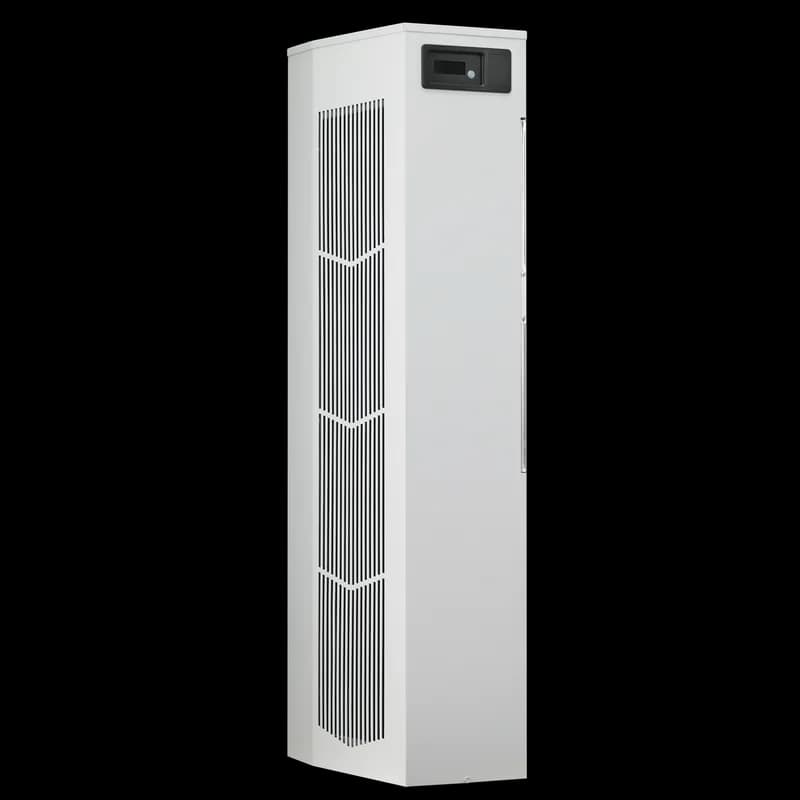

SpectraCool Narrow Advanced Corrosion Protection Lvl 1 RAC, 12000BTU 460V, Lt Gray, Steel
How to Install the N431246G050 Air Conditioner
This guide provides step-by-step instructions for installing and configuring the N431246G050 air conditioner, ensuring proper functionality and safety.
Estimated time: 45m
Tools needed:
Screwdriver, Wrench, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Gaskets, Wire connectors
- Inspect the air conditioner
Check for any visible damage and ensure the unit is functioning correctly before proceeding with the installation.
- Install mounting gaskets
Using the provided gasket kit, attach the gaskets to the air conditioner to ensure a watertight seal.
- Mount the air conditioner
Securely mount the air conditioner to the enclosure, ensuring not to damage the gaskets. Start bolts by hand to avoid cross-threading.
- Wire the unit
Refer to the nameplate for electrical requirements and connect the unit to a properly grounded power supply using copper conductors.
- Connect the thermostat
If required, wire the remote thermostat outputs to the appropriate terminals on the 24 VAC terminal strip according to the wiring diagram.
- Set the thermostat
Adjust the thermostat to the desired cabinet temperature, referencing the Sequence of Operation for proper settings.
- Power on the unit
Allow the unit to remain upright for at least five minutes before energizing. After powering on, verify that the evaporator blower starts running.
- Test functionality
Run the air conditioner for 5-10 minutes to ensure proper operation, checking that the compressor and fans are functioning as expected.
