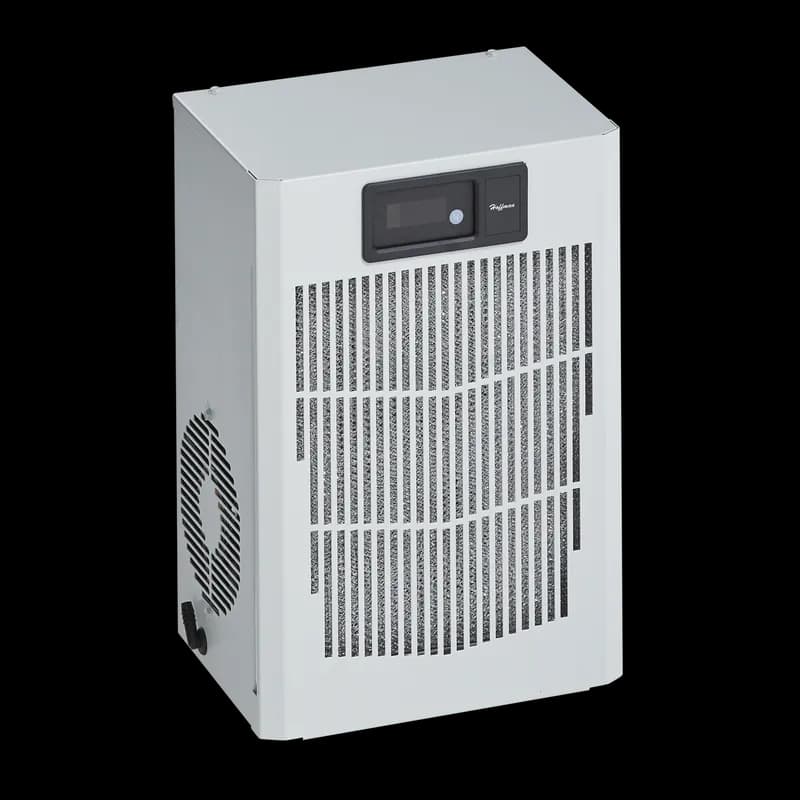

Overview
- Narrow design accommodates 12-inch (300 mm) deep cabinets
- Attractive industrial design with minimal use of visible fasteners
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- R513A or R134a refrigerant
- Models for 115, 230 and 400/460 VAC power input
- Operating temperature range from 50 F/10 C to 125 F/52 C
- Reliable mechanical thermostat is located behind the cover of the unit; air conditioner models include digital display on ambient side
- Dust-resistant condenser coil allows the unit to be run filterless in most applications
- Galvanized sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
Specifications
Application | Controls and Drives;Power Distribution |
Color | Light Gray |
Color | Gray |
Color Code | RAL 7035 |
Depth | 213 mm |
Depth | 8.4 in |
Finish | Powder Coated |
Frequency | 50-60 Hz |
Height | 562 mm |
Height | 22.14 in |
Material | Steel |
Material | Mild Steel |
Max Current | 2 A |
Mechanical Advantage | Galvanized sheet metal standard |
Mounting Type | Wall-mount or floor-mount |
Mounting Type | Floor and Wall Mount |
NEMA Rating | 12 Indoor, dust-resistant |
Nominal Capacity Btu/h | 1,800 Btu/h |
Nominal Capacity Watts | 527 W |
Nominal Voltage | 460 V |
Number Of Phases | 1 |
Operating Temperature | 10-52 °C |
Operating Temperature | 50-125 |
Operating Temperature | 10-52 |
Product Family | SpectraCool |
Protection Rating | NEMA Type 12 |
Remote Access Control | No |

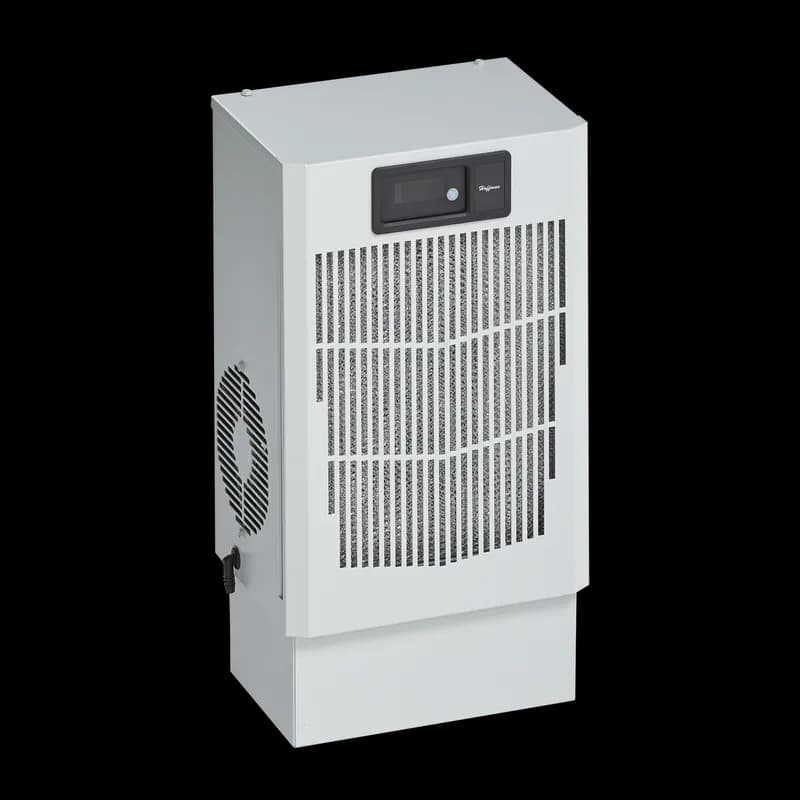

Series | SpectraCool Narrow Compact Indoor |
Series | SpectraCool N17 |
Size | Compact (12-inch/300-mm deep) |
Thickness | 1.21 mm |
Thickness | 18 ga |
Thickness | 51.40mm (2.024") |
Type | Air Conditioners |
Voltage AC | 400-460 V |
Voltage Rating | 400 - 460 VAC |
Voltage Rating | 460 V |
Weight | 33 kg |
Weight | 72.3 lb |
Width | 12 IN |
Width | 305 mm |
Package Dimensions (L x W x H) | 15.4 IN x 12 IN x 25.3 IN |
Package Dimensions (L x W x H) | 39.116 cm x 30.48 cm x 64.262 cm |
Package Weight (Imperial) | 72.300 L |
Package Weight (Metric) | 32.795 kg |
How to Install the N170246G010 Air Conditioner
This guide provides step-by-step instructions for installing and configuring the N170246G010 air conditioner, ensuring proper functionality and safety.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Mounting gasket kit
- Inspect the air conditioner
Check for any visible damage and ensure the unit is functioning correctly before installation. Do not operate the unit if it has been in a horizontal position for more than five minutes.
- Install the mounting gasket
Using the mounting gasket kit provided, attach the gaskets to the air conditioner to ensure a watertight seal.
- Mount the air conditioner
Securely mount the air conditioner to the enclosure, ensuring not to damage the gasket. Start bolts by hand to avoid cross-threading before tightening with a wrench.
- Wire the unit to power supply
Refer to the nameplate for electrical requirements and connect the unit to a properly grounded power supply using copper conductors only. Ensure the circuit includes a slow-blow fuse or HACR circuit breaker.
- Connect the thermostat
If required, wire the remote mounted thermostat outputs to the appropriate terminals on the 24 VAC terminal strip, following the wiring diagram.
- Set the thermostat
Adjust the thermostat to the desired cabinet temperature, ensuring it is set above 70°F to prevent coil freeze-ups.
- Test the air conditioner
Power on the unit and verify that the evaporator blower starts running. Allow the compressor to run for 5-10 minutes and check for proper operation.
