nVent MPGDA01 - Depth adjust kit MP console

nVent MPGDA01 Depth adjust kit MP console

UPC: 783510512613


Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent MP Console Depth Adjust Kit (SKU: MPGDA01) provides adjustable mounting depth for nVent MP consoles. Constructed from 2 mm galvanized steel, this kit enables precise depth adjustment of mounting plates, 19" profiles, and inner doors. It is designed to accommodate various accessory sizes and configurations, enhancing flexibility within the enclosure. This kit is not suitable for AFS enclosures. All measurements are in millimeters.
  • Description: To provide depth adjustment for mounting plate.
  • Material: 2 mm galvanized steel.
  • Pack quantity: 1 set with mounting accessories.
  • Allows for the mounting plate to be fitted at the depth required by the equipment, e.g. for when equipment needs to be flush with the external door, or when two mounting plates are fitted back to back, if front and rear doors are used
  • Not suitable for AFS enclosures

Specifications

Depth
64 mm
Depth
2.52 in
Enclosure Material
Mild Steel
Finish
Galvanized
Height
44 IN
Height
3.94 in
Material
Galvanized Steel
Mounting Type
Depth adjustment for mounting plates
Product Family
Human Machine Interface
Thickness
51.40mm (2.024")
Thickness
0.08 in
Type
Fixing
Width
1.26 in
Width
32 mm
Works With
IEC
Package Dimensions (L x W x H)
3.5433 IN x 1.5748 IN x 12.9921 IN
Package Dimensions (L x W x H)
90 mm x 40 mm x 330 mm
Package Weight (Imperial)
1.8739 L
Package Weight (Metric)
0.8500 kg

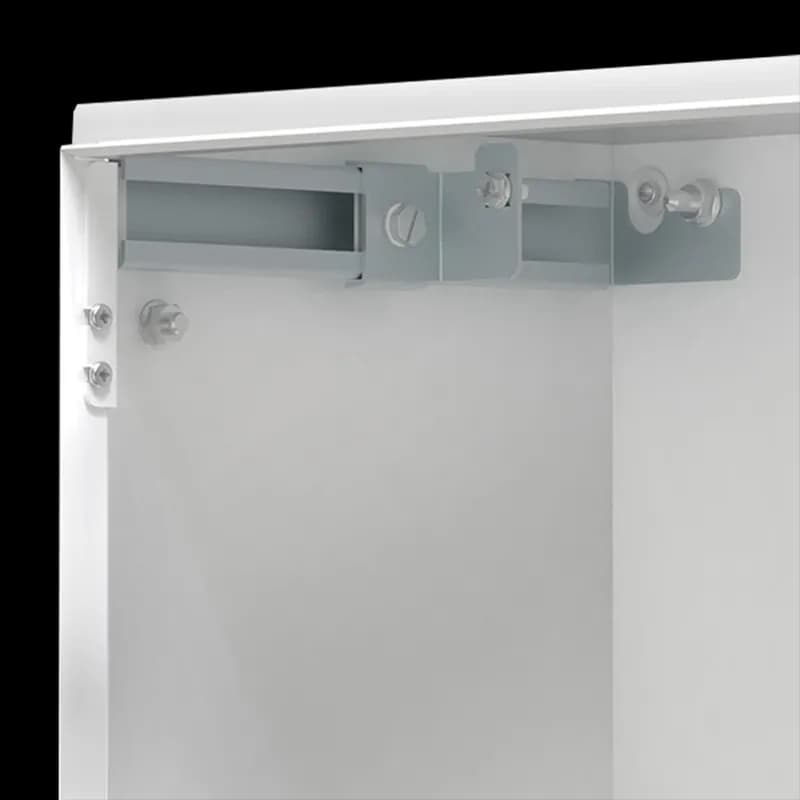

Depth Adjustment Kit Wall Mount Enclosures, AMG, 97x65x137mm, Galvanized, Steel

AMG155

Depth Adjustment Kit Wall Mount Enclosures, AMG, 97x65x137mm, Galvanized, Steel
Pole Mount Kit for 24 x 24 enclosure

APMK24

Pole Mount Kit for 24 x 24 enclosure
Old Work Box Support Clip. Clips Lock Old-Work Steel Switch Boxes Tightly To Wall Plaster, Dry Wall, Concrete Block, Brick Or Concrete. Adapts To Any Wall Thickness Up To 3/4 Inch

OWC

Old Work Box Support Clip. Clips Lock Old-Work Steel Switch Boxes Tightly To Wall Plaster, Dry Wall, Concrete Block, Brick Or Concrete. Adapts To Any Wall Thickness Up To 3/4 Inch
NEXT ENC 84HX30WX11D N1 PAINTED

ER8430A

NEXT ENC 84HX30WX11D N1 PAINTED
Gland plate Gray for 11.75 x 2.31 opening - Steel/Lt Gray

GP134LG

Gland plate Gray for 11.75 x 2.31 opening - Steel/Lt Gray
STEEL SQUARES 25X25X19 WITH HOLES 7MM

50000045

STEEL SQUARES 25X25X19 WITH HOLES 7MM
Front plate, 305x355, Aluminium

OIFP3439

Front plate, 305x355, Aluminium
Front plate, 358x485, Aluminium

OIFP3952

Front plate, 358x485, Aluminium

Frequently Asked Questions

What is the purpose of the MPGDA01 depth adjust kit?

The MPGDA01 depth adjust kit provides depth adjustment for the mounting plate, maximizing mounting flexibility.

What material is the MPGDA01 depth adjust kit made from?

The MPGDA01 depth adjust kit is made from 2 mm galvanized steel.

What are the dimensions of the MPGDA01 depth adjust kit?

The MPGDA01 depth adjust kit has a height of 3.94 inches, a width of 1.26 inches, and a depth of 2.52 inches.

What is the thickness of the MPGDA01 depth adjust kit?

The thickness of the MPGDA01 depth adjust kit is 0.08 inches.

What is the finish of the MPGDA01 depth adjust kit?

The finish of the MPGDA01 depth adjust kit is galvanized.

What is the pack quantity for the MPGDA01 depth adjust kit?

The MPGDA01 depth adjust kit is packed as 1 set with mounting accessories.
