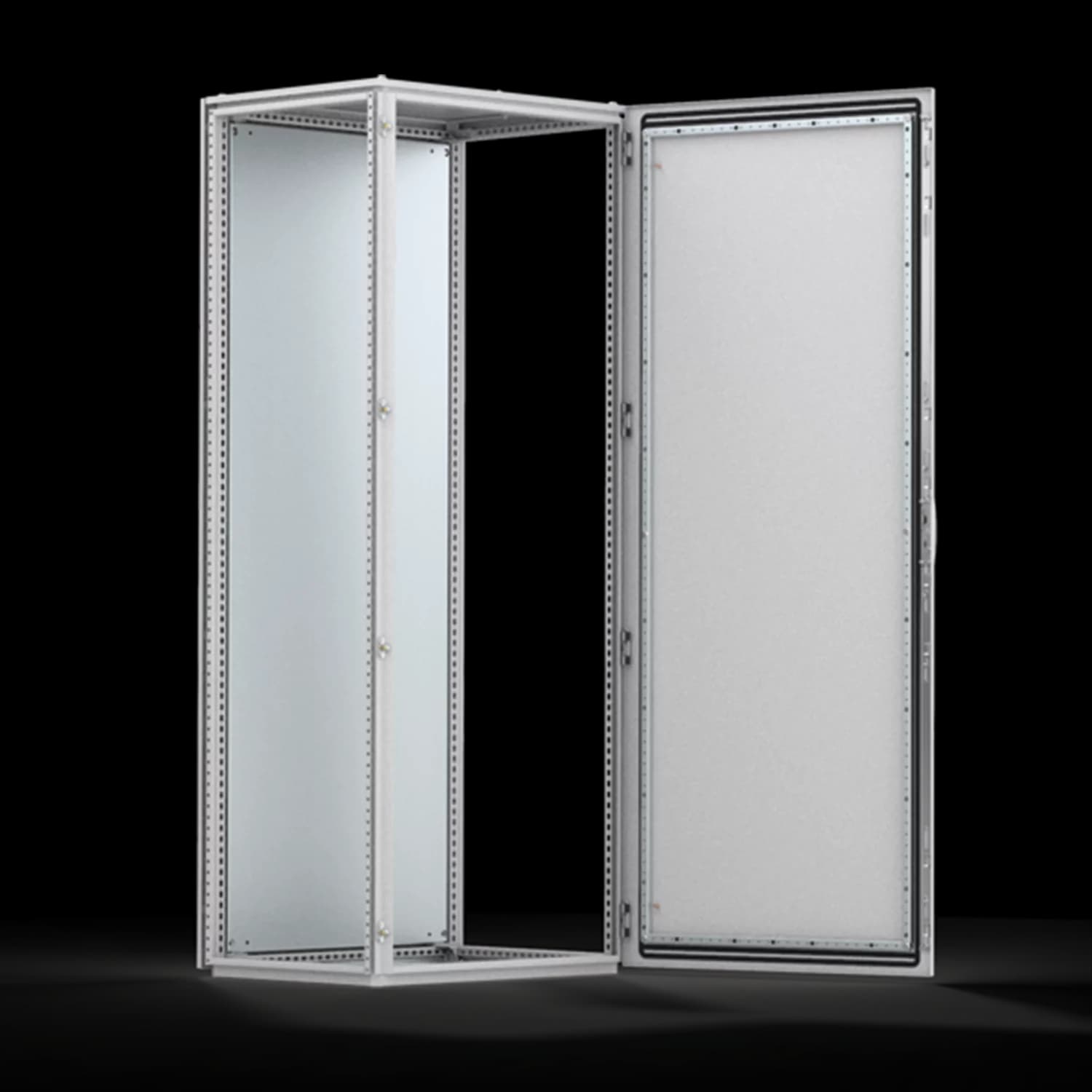

nVent MCS16085PER5 The nVent MCS16085PER5 is a DIN rail mounting accessory designed for nVent Hoffman…
UPC: 783510592578
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Material: Frame: 1.5 mm painted steel. Door: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
- Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
- Door: Mounted with four hinges allowing left or right hand opening. Including door frame with 25 mm hole pattern.
- Rear panel: Fitted by M6 torx screws. Standard facilities for rear door mounting. RD version comes with rear door instead of rear panel.
- Side panels: Supplied as an accessory.
- Roof panel: Removable.
- Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
- Bottom plates: Consists of three or four (D>600) pieces.
- Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
- Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud.
Specifications
Application | Controls and Drives |
Body Thickness | 16 ga |
Cable Enclosures Included | No |
Color | Grey |
Color Code | RAL 7035 |
Depth | 19.68 in |
Depth | 500 mm |
Door Thickness | 14 ga |
Finish | Powder Coating |
Height | 62.99 in |
Height | 1,600 mm |
Material | Mild Steel |
Mounting Plate Included | No |
Protection Rating | NEMA Type 12 |
Rear Door Included | No |
Rear Panel Included | Yes |
Type | Mild Steel Modular Industrial Enclosures |
Width | 31.5 in |
Width | 800 mm |
Package Dimensions (L x W x H) | 32 IN x 20 IN x 65 IN |
Package Dimensions (L x W x H) | 81.28 cm x 50.8 cm x 165.1 cm |
Package Weight (Imperial) | 96.200 L |
Package Weight (Metric) | 43.636 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
