nVent MCI20066R5 - Floor standing, combinable, 2000x600x600, 1-door, Mild steel, Zinc plated, IP55
nVent

MCI20066R5

UPC: 783510493448

Contact for Pricing

Overview

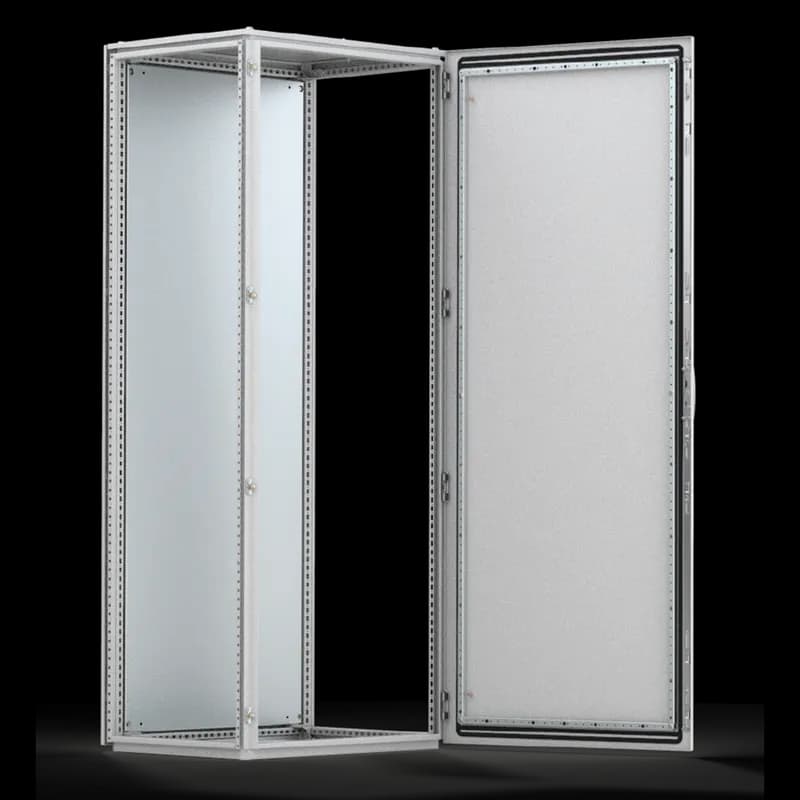

The nVent MCI20066R5 is a floor-standing, combinable enclosure designed for industrial and ICT applications. Constructed from 1.5 mm steel plate for the frame and 2 mm steel plate for the door, it offers robust protection. This mild steel enclosure features a zinc-plated finish and achieves an IP55 rating, safeguarding against dust and water ingress. With dimensions of 2000x600x600 mm, it provides ample space for equipment. The MCI series is engineered for efficiency, featuring pre-mounted 19" profiles to reduce assembly time. Its combinable design allows for scalable solutions by joining multiple units. The single front door offers convenient access, and a rear door is included for enhanced maintenance and cable management. The frame utilizes seam-welded reversed open profiles with a 25 mm hole pattern according to DIN 43660, including an integrated external hole pattern. The lock system is an Espagnolette 4-point locking system. Ideal for data centers, telecommunications, server rooms, and general industrial environments requiring protection.
  • Mild steel construction with zinc-plated 19" profiles
  • IP55 rated for dust and water protection
  • Combinable floor-standing design
  • Dimensions: 2000x600x600 mm
  • Includes single front door and rear door
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories
  • Bottom plates: Consists of three or four (D>600) pieces
  • 19" profiles: Provides front and side universal 19" hole pattern. Adjustable in depth by steps of 25 mm
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud
  • Finish: Frame, rear door and roof plate: RAL 7035 structured powder coating. 19" profiles: zinc plated steel

Specifications

Body Thickness
16 ga
Body Thickness
0.06 in
Color
Gray
Color
Grey
Color Code
RAL 7035
Depth
23.62 in
Depth
600 mm
Door Thickness
14 ga
Door Thickness
0.08 in
Finish
Powder Coating
Height
78.74 in
Height
2,000 mm
Material
Mild Steel
Protection Rating
IP55
Rack Units
42 U
Type
Mild Steel Modular Industrial Enclosures
Weight
32 lbs./100ft
Weight
154.32 lb
Width
600 mm
Width
23.62 in
Package Dimensions (L x W x H)
79.12 IN x 24 IN x 24.25 IN
Package Dimensions (L x W x H)
200.9648 cm x 60.96 cm x 61.595 cm
Package Weight (Imperial)
170.600 L
Package Weight (Metric)
77.384 kg
