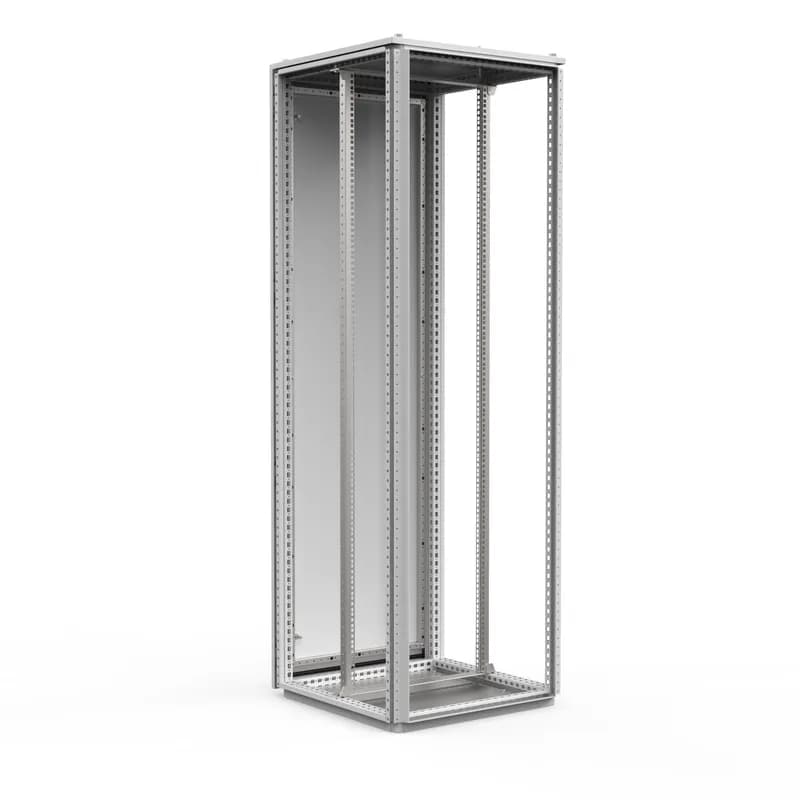

nVent MCI16066R5 - Floor standing, combinable, 1600x600x600, 1-door, Mild steel, Zinc plated, IP55
nVent

MCI16066R5

UPC: 783510493257

Contact for Pricing

Overview

The nVent MCI16066R5 is a robust, floor-standing enclosure designed for 19" ICT equipment. Constructed from 1.5 mm mild steel plate for the frame and roof, with a 2 mm steel door, this enclosure offers substantial protection. The interior features 2 mm zinc-plated steel 19" profiles with a 25 mm hole pattern, facilitating easy equipment mounting and configuration. It meets stringent protection standards including IP55, Type 12, Type 13, and IK 10, ensuring effective shielding against dust, water ingress, and physical impact. The single rear door is equipped with a secure 4-point Espagnolette locking system, offering the flexibility of left or right-hand opening. Bottom plates are constructed from 1 mm galvanized steel. Its combinable design allows for scalable deployment by integrating with other MCI units, making it ideal for data centers, telecommunications infrastructure, and control room applications requiring secure housing for 19" rack-mount equipment. Dimensions are 1600x600x600 mm.
  • Material: Frame: 1.5 mm steel plate. Door: 2 mm steel plate. Roof plate: 1.5 mm steel plate. Bottom plates: 1 mm galvanized steel. 19" profiles: 2 mm zinc plated steel
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern
  • Rear door: Mounted with hinges, allowing left or right hand opening. Including door frame with 25 mm hole pattern
  • Side panels: Supplied as an accessory
  • Roof panel: Removable
  • Lock: Espagnolette 4-point locking system. Does not interfere with the enclosure inner space. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories
  • Bottom plates: Consists of three or four (D>600) pieces
  • 19" profiles: Provides front and side universal 19" hole pattern. Adjustable in depth by steps of 25 mm
  • Earthing: All panels are earthed through their fittings and are equipped with a separate earthing stud
  • Finish: Frame, rear door and roof plate: RAL 7035 structured powder coating. 19" profiles: zinc plated steel

Specifications

Body Thickness
0.06 in
Body Thickness
16 ga
Color
Gray
Color
Grey
Color Code
RAL 7035
Depth
23.62 in
Depth
600 mm
Door Thickness
14 ga
Door Thickness
0.08 in
Finish
Powder Coating
Height
62.99 in
Height
1,600 mm
IP Rating
IP55
Material
Mild Steel
Material
Mild Steel, Zinc Plated
Mounting Type
Floor Standing
Protection Rating
IP55
Rack Units
33 U
Series
MCI
Size
1600x600x600 mm
Type
Mild Steel Modular Industrial Enclosures
Weight
32 lbs./100ft
Weight
154.32 lb
Width
600 mm
Width
23.62 in
Package Dimensions (L x W x H)
63.37 IN x 24 IN x 24.25 IN
Package Dimensions (L x W x H)
160.9598 cm x 60.96 cm x 61.595 cm
Package Weight (Imperial)
144.600 L
Package Weight (Metric)
65.591 kg
