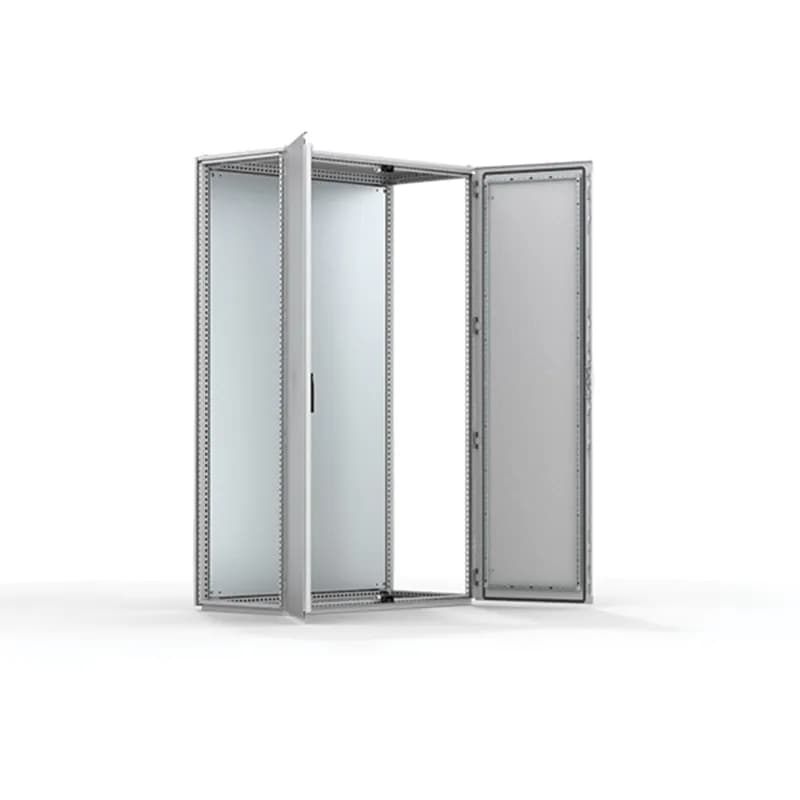

nVent MCD22126PER5 - Modular Double Door, no Plate, Rear Panel, 2200x1200x600mm, Gray, Mild Steel
nVent

MCD22126PER5

UPC: 783510492533

Contact for Pricing

Overview

The nVent MCD Modular Double Door Enclosure (SKU: MCD22126PER5) offers a robust and versatile solution for housing critical electrical and electronic components in demanding industrial environments. Engineered from high-quality mild steel and finished in a neutral gray, this enclosure is designed for longevity and performance. Its modular construction facilitates seamless integration into existing or new installations, providing flexibility for various applications. The double-door configuration is a key design advantage, particularly beneficial for installations where space is at a premium. Unlike single-door enclosures that require substantial clearance for door swing, the MCD's dual doors minimize the front footprint, making it ideal for confined spaces such as control rooms, manufacturing floors, or utility substations. This design not only improves accessibility but also enhances safety by reducing potential trip hazards. Furthermore, the weight distribution across two doors increases their loading capacity, allowing for the secure mounting of heavier equipment and a greater density of internal components. With an IP 55 protection degree, the nVent MCD enclosure provides excellent defense against dust ingress and low-pressure water jets. This high level of ingress protection ensures that sensitive equipment remains shielded from environmental contaminants, making it suitable for a wide array of applications including, but not limited to, industrial automation, power distribution, telecommunications, and process control systems. The robust construction and reliable sealing contribute to the overall integrity and operational continuity of the housed systems. Key features and benefits of the nVent MCD Modular Double Door Enclosure include: * **Space-Saving Double Door Design:** Minimizes front clearance requirements, ideal for tight installations. * **Enhanced Load Capacity:** Distributes weight across two doors for greater component support. * **IP 55 Protection:** Offers superior protection against dust and water ingress. * **Modular Construction:** Facilitates easy integration and scalability. * **Durable Mild Steel:** Provides robust physical protection for internal equipment. * **Rear Panel Included:** Offers additional mounting or access points. This enclosure is a testament to nVent's commitment to delivering reliable and innovative solutions for industrial infrastructure. The UNSPSC code 39121334 categorizes this product within electrical enclosures and cabinets, highlighting its specific function in electrical system management. Manufactured in the US, the MCD22126PER5 embodies quality craftsmanship and adherence to stringent manufacturing standards. Professionals selecting enclosures for critical applications trust nVent for their proven performance and dedication to protecting vital equipment.
  • Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the slave door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three or four (D>600) pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.

Specifications

Body Thickness
16 ga
Color
Gray
Color
Grey
Color Code
RAL 7035
Depth
23.62 in
Depth
600 mm
Door Thickness
14 ga
Finish
Powder Coating
Height
86.61 in
Height
2,200 mm
IP Rating
IP55
Material
Mild Steel
Mounting Plate Included
No
Mounting Type
Floor Standing
Protection Rating
NEMA Type 12
Rear Door Included
No
Rear Panel Included
Yes
Series
MCD
Size
2200x1200x600 mm
Type
Mild Steel Modular Industrial Enclosures
Width
1,200 mm
Width
47.24 in
Package Dimensions (L x W x H)
86.99 IN x 47.62 IN x 47.87 IN
Package Dimensions (L x W x H)
220.9546 cm x 120.9548 cm x 121.5898 cm
Package Weight (Imperial)
402.300 L
Package Weight (Metric)
182.483 kg
