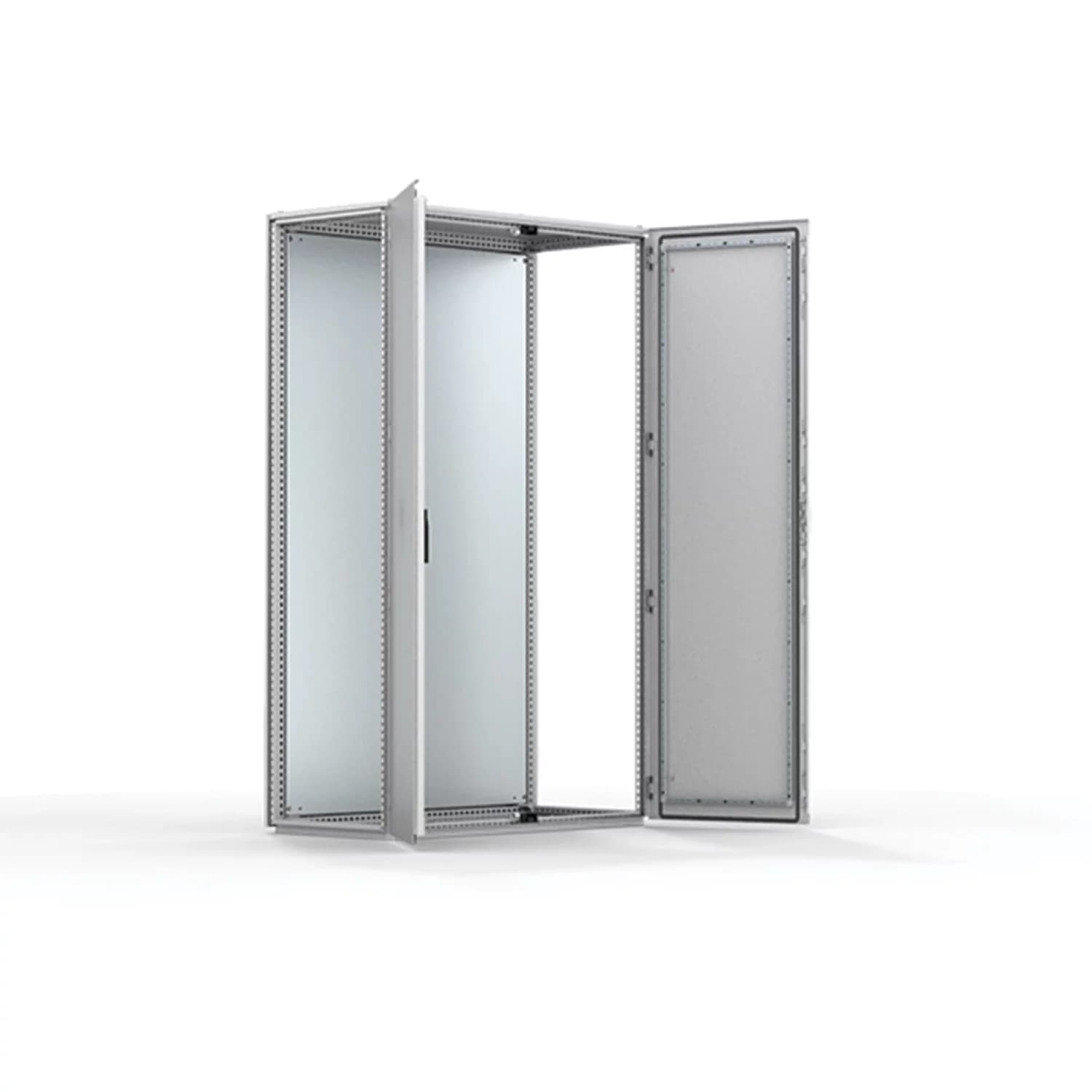

nVent MCD14125PER5 - The nVent MCD14125PER5 represents a pinnacle of industrial component engineering, designed to deliver uncompromising performance and exceptional durability in the most demanding operational environments. Manufactured by nVent, a globally recognized leader in electrical connection and protection solutions, this component embodies the company's commitment to innovation, reliability, and safety. Engineered for resilience, the MCD14125PER5 is constructed from advanced, corrosion-resistant materials, ensuring a prolonged service life even when subjected to extreme temperatures, vibration, and harsh chemical exposure. This robust build quality makes it an ideal choice for critical applications across a wide spectrum of industries, including manufacturing, process control, automation, data acquisition, and HVAC systems. Its adaptability allows for seamless integration into existing or new system architectures, minimizing installation complexity and reducing potential downtime. Key benefits and features of the nVent MCD14125PER5 include: * **Superior Durability:** Built with nVent's renowned robust construction for extended longevity in challenging conditions. * **High Performance:** Engineered to meet stringent industrial demands, ensuring consistent and reliable operation. * **Versatile Application:** Suitable for automation, process control, data acquisition, HVAC, and other critical industrial systems. * **Ease of Integration:** Designed for straightforward installation, compatible with standard industrial fittings and ductwork. * **Corrosion Resistance:** Utilizes advanced materials to withstand corrosive environments and chemical exposure. * **Compliance and Safety:** Meets rigorous industry safety standards, providing peace of mind for critical installations. Facilities managers, engineers, and procurement specialists rely on nVent components for their proven track record of reducing operational costs through minimized maintenance requirements and enhanced system efficiency. The MCD14125PER5 is no exception, offering a dependable solution that contributes to overall operational success and reduces the risk of costly system failures. Its design prioritizes not only performance but also the long-term economic viability of the systems it supports. Choosing the nVent MCD14125PER5 means investing in a component that upholds the highest standards of quality and operational excellence, ensuring that your industrial processes run smoothly and efficiently for years to come.

nVent MCD14125PER5 The nVent MCD14125PER5 represents a pinnacle of industrial component engineering…

UPC: 783510592660

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent MCD14125PER5 is a robust industrial component engineered for uncompromising performance and exceptional durability in demanding operational environments. Manufactured by nVent, a leader in electrical connection and protection solutions, this component embodies innovation, reliability, and safety. Constructed from advanced, corrosion-resistant materials, the MCD14125PER5 ensures a prolonged service life even when subjected to extreme temperatures, vibration, and harsh chemical exposure. Its robust build quality makes it ideal for critical applications across manufacturing, process control, automation, data acquisition, and HVAC systems. The MCD14125PER5 offers superior durability with nVent's renowned construction for extended longevity in challenging conditions. It delivers high performance, engineered to meet stringent industrial demands for consistent and reliable operation. Its versatile application suits automation, process control, data acquisition, HVAC, and other critical industrial systems. Designed for ease of integration, it features straightforward installation and compatibility with standard industrial fittings and ductwork. The corrosion resistance utilizes advanced materials to withstand corrosive environments and chemical exposure. Furthermore, it meets rigorous industry safety standards, providing peace of mind for critical installations. Facilities managers, engineers, and procurement specialists rely on nVent components for their proven track record of reducing operational costs through minimized maintenance and enhanced system efficiency. The MCD14125PER5 offers a dependable solution that contributes to operational success and reduces the risk of costly system failures, prioritizing long-term economic viability. Investing in the nVent MCD14125PER5 means upholding the highest standards of quality and operational excellence for smooth and efficient industrial processes.
  • Material: Frame: 1.5 mm painted steel. Doors: 2 mm painted steel. Rear, roof and side panels: 1.5 mm painted steel. Mounting plate: 3 mm galvanized steel. Bottom plates: 1 mm galvanized steel.
  • Frame: Seam welded reversed open profiles with 25 mm hole pattern, according to DIN 43660. Including integrated external hole pattern.
  • Doors: Mounted with four hinges. Including door frame with 25 mm hole pattern. Doors cannot be reversed. Separate doors to be ordered for left hand door locking.
  • Rear panel: Fitted by M6 torx screws. Standard facilities for rear doors mounting. Split rear panels in 1600 mm wide enclosures. RD version comes with rear door instead of rear panel.
  • Side panels: Supplied as an accessory.
  • Roof panel: Removable.
  • Lock: Espagnolette 4-point locking system in the main door and 2-point locking system in the secondary door. Standard double-bit lock with 3 mm insert. Standard inserts, cylinders, lift handles and T-handles are available as accessories.
  • Bottom plates: Consists of three or four (D>600) pieces.
  • Mounting plate: Double folded and slides into position. Adjustable in depth by steps of 25 mm, with the MPD02 accessory. Supplied, attached on the outside of the enclosure packaging.
  • Earthing: All panels are earthed through their fittings and equipped with a separate earthing stud.

Specifications

Application
Controls and Drives
Body Thickness
16 ga
Color
Grey
Color Code
RAL 7035
Depth
19.68 in
Depth
500 mm
Door Thickness
14 ga
Finish
Powder Coating
Height
1,400 mm
Height
55.12 in
Material
Mild Steel
Mounting Plate Included
No
Protection Rating
NEMA Type 12
Rear Door Included
No
Rear Panel Included
Yes
Type
Mild Steel Modular Industrial Enclosures
Width
1,200 mm
Width
47.24 in
Package Dimensions (L x W x H)
48 IN x 20 IN x 58 IN
Package Dimensions (L x W x H)
121.92 cm x 50.8 cm x 147.32 cm
Package Weight (Imperial)
259.740 L
Package Weight (Metric)
117.818 kg
