Overview

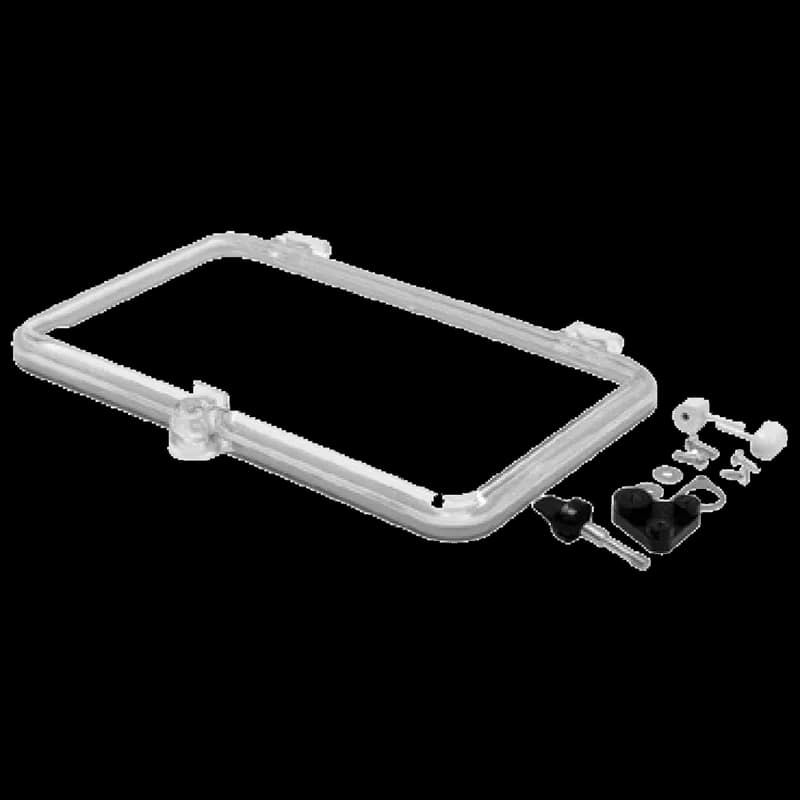

- Includes mounting hardware for window and optional front plate
- Window kit is hinged on left side with a 140-degree door opening and a quarter-turn slotted latch
- Purchase Front Plate separately
- Designed as an accessory for HOFFMAN enclosures
- Deep-hinged design for easy access to internal components
Specifications
Accepts Front Plate | LFP1616 |
Application | Controls and Drives |
Color | Unpainted |
Color | Black |
Depth | 42 mm |
Depth | 1.64 |
Depth | 42 |
Finish | Smooth Matte |
Height | 166 mm |
Height | 6.54 |
Height | 166 |
Material | Polycarbonate |
Modification Services | Yes |
Product Family | InLine |
Series | InLine HMI |
Size | 166x160 mm |
Size | fits 166x160mm |
Thickness | 0.12 in |
Thickness | 3 mm |
Type | HMI Enclosure Systems |
Type | Other Accessories |
Weight | 1.4 lb |
Width | 6.3 |
Width | 160 |
Width | 160 mm |
Window Size | 5.47 x 4.43 in |
Window Size | 139 x 112 mm |
Works With | NEMA |
Package Dimensions (L x W x H) | 7.2 IN x 6.9 IN x 2.5 IN |
Package Dimensions (L x W x H) | 18.288 cm x 17.526 cm x 6.35 cm |
Package Weight (Imperial) | 1.400 L |
Package Weight (Metric) | 0.635 kg |
