Overview

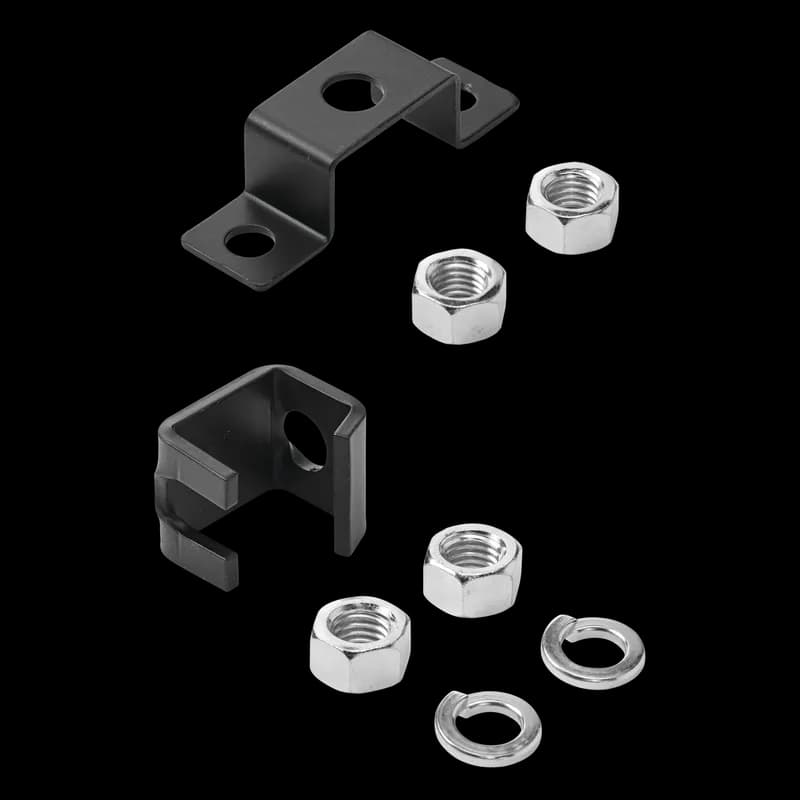

- The Cable Runway Foot Kit secures ladder rack to the floor, ceiling or wall
- It includes an attachment that has a 90 degree bend to provide a secure mounting point to a perpendicular surface
- One kit secures one ladder rack section
- Requires surface mounting hardware (not included)
- One kit required per ladder rack section (mounting hardware not included).
Specifications
Application | Networking, Storage and Data Center |
Color | Unpainted |
Finish | Steel/zinc |
Material | Steel |
Material | Plated Steel |
Modification Services | Yes |
Mounting Type | Surface Mount (90-degree bend) |
Thickness | 0.375 in |
Thickness | 9.5 mm |
Type | Cable Pathway |
Weight | 3 lb |
Package Dimensions (L x W x H) | 9.5 IN x 3.9 IN x 1.5 IN |
Package Dimensions (L x W x H) | 24.13 cm x 9.906 cm x 3.81 cm |
Package Weight (Imperial) | 3.000 L |
Package Weight (Metric) | 1.361 kg |
How to Install the Cable Runway Ladder Rack System
This guide provides step-by-step instructions for installing the Cable Runway Ladder Rack System, ensuring a secure and efficient setup.
Estimated time: 1h
Tools needed:
Screwdriver, Wrench, Level
Supplies needed:
Mounting screws, Cable ties, Support brackets
- Select installation location
Choose a suitable location for the cable runway that allows for adequate space and accessibility. Ensure the area is free from obstructions.
- Mount the support brackets
Using a screwdriver, securely attach the support brackets to the wall or ceiling at the designated locations. Use a level to ensure they are straight.
- Install the ladder rack
Align the ladder rack with the mounted support brackets and secure it using the provided mounting screws. Ensure it is firmly attached and stable.
- Connect cables
Route the cables through the ladder rack and secure them using cable ties to prevent movement. Ensure that the cables are organized and not under tension.
- Verify installation
Check the entire installation for stability and ensure all components are securely fastened. Perform a visual inspection to confirm that cables are properly routed.
