Contact for Pricing
Overview

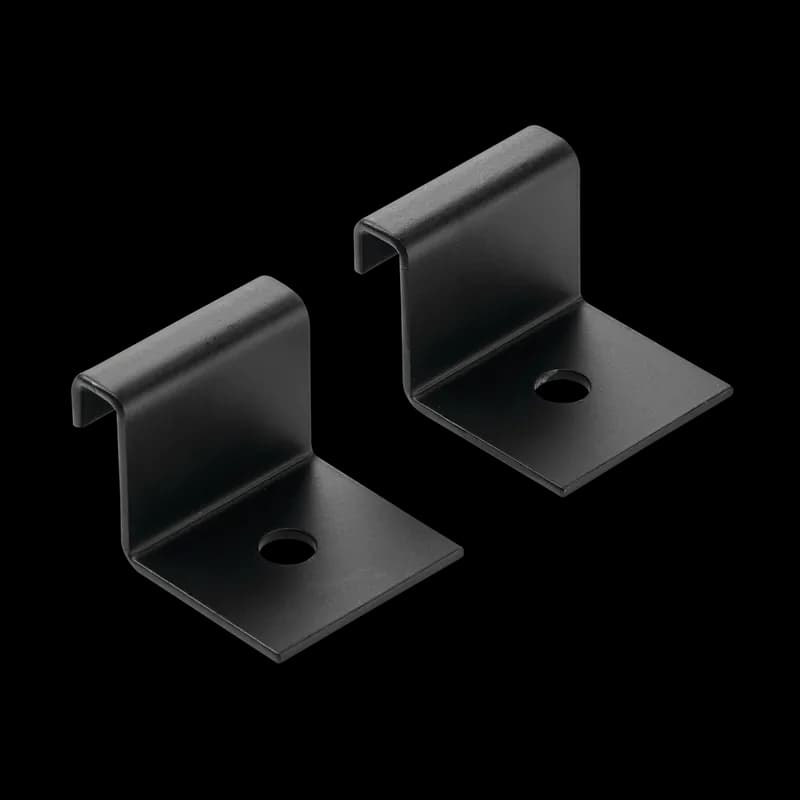

- The Cable Runway Elevation Kit elevates ladder rack 3 or 6 inches (76 or 152 mm) above the rack-to-ladder mounting plate
- This kit can be used on any width ladder rack
- The kit includes two brackets and all mounting hardware necessary
- Compatible with any width of ladder rack, offering flexibility for custom setups
- Part of nVent’s trusted cable runway system, designed for industrial and commercial applications
Specifications
Application | Networking, Storage and Data Center |
Color | Jet Black |
Color Code | RAL 9005 |
Finish | Black |
Height | 6 In |
Material | Steel |
Modification Services | Yes |
Thickness | 3.04 mm |
Thickness | 11 ga |
Type | Cable Pathway |
Weight | 0.8 lb |
Package Dimensions (L x W x H) | 13.25 IN x 4 IN x 1.25 IN |
Package Dimensions (L x W x H) | 33.655 cm x 10.16 cm x 3.175 cm |
Package Weight (Imperial) | 0.800 L |
Package Weight (Metric) | 0.363 kg |
