Contact for Pricing
Overview
- Kit includes 4 rails and installation instructions
- Constructed from durable steel
- Designed for 770mm applications
- Compatible with TS35x7.5 DIN rail profiles
- Includes 4 rails per package
Specifications
Application | Controls and Drives |
Color | Unpainted |
Finish | Plated |
Fits Height | 2000 mm mm |
Fits InLine Enclosure | When A or B = 770 mm |
Material | Steel |
Material | Mild Steel;Steel |
Material | Mild Steel |
Modification Services | Yes |
Mounting Type | Vertical or horizontal attachment to mounting brackets |
Product Family | InLine |
Series | DIN3 Type Rails |
Series | LDR3P |
Size | fits 770mm |
Size | 770mm |
Thickness | 0.054 in |
Thickness | 51.40mm (2.024") |
Type | Internal Mounting for Industrial Enclosures |
Weight | 2.6 lb |
Works With | NEMA |
Package Dimensions (L x W x H) | 37.5 IN x 4.5 IN x 3 IN |
Package Dimensions (L x W x H) | 95.25 cm x 11.43 cm x 7.62 cm |
Package Weight (Imperial) | 2.600 L |
Package Weight (Metric) | 1.179 kg |
TBARHDXT

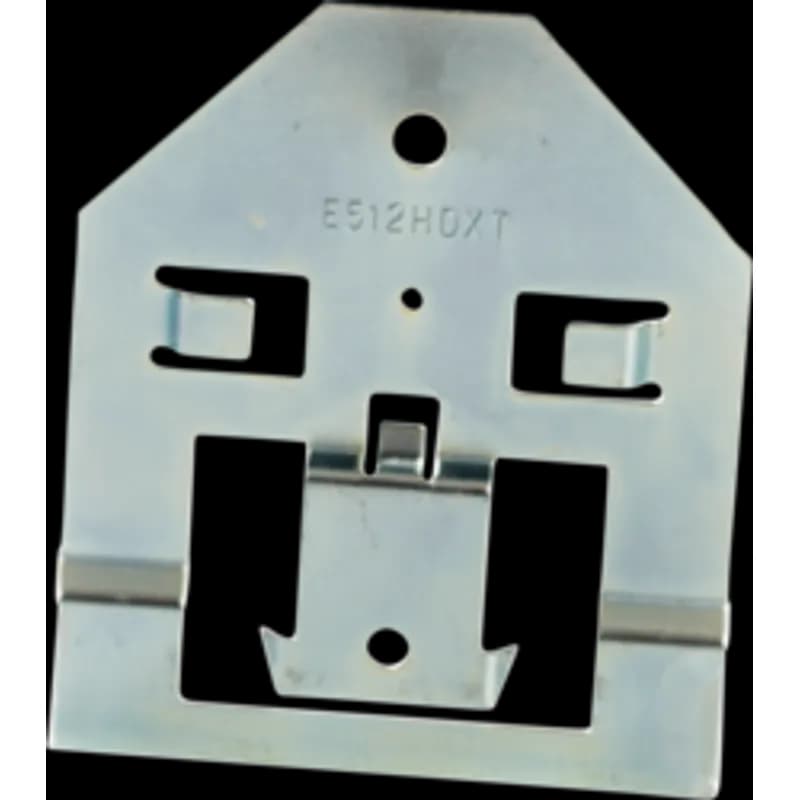

This is a box support extension for a heavy duty T-BAR box bracket (TBARHD). It is made of pre-galvanized steel with a silver finish. The listed dimensions are 3-3/4 in. height, 3-1/4 in. width, and 1/4 in. depth.
DBB1
Pre-Fabricated Dual-Box Bracket, Accommodates 2 Outlet Boxes 4 Inches or 4-11/16 Inches, Galvanized Finish
How to Install the DIN Rail for LDR3P77 Controller
This guide provides step-by-step instructions for mounting the DIN rail required for the LDR3P77 Controller installation.
Estimated time: 30m
Tools needed:
Screwdriver, Torque wrench
Supplies needed:
M8 flanged nuts, Pan head screws, Channel nuts
- Mount the DIN rail to enclosure studs
Line up the slots in the DIN rail with the enclosure studs. Attach an M8 flanged nut to each stud and torque to 99 in-lbs (11 Nm).
- Install channel nuts for mounting channels
If using mounting channels, insert one channel nut for each DIN rail into each mounting channel.
- Attach mounting channels to enclosure studs
Follow the separate installation instruction sheet (Ref instruction 64317001) to attach the mounting channels to the enclosure studs.
- Secure the DIN rail to channel nuts
Line up the slots in the DIN rail with the installed channel nuts. Insert one pan head screw into each nut and torque to 50 in-lbs (5.6 Nm).
