Contact for Pricing

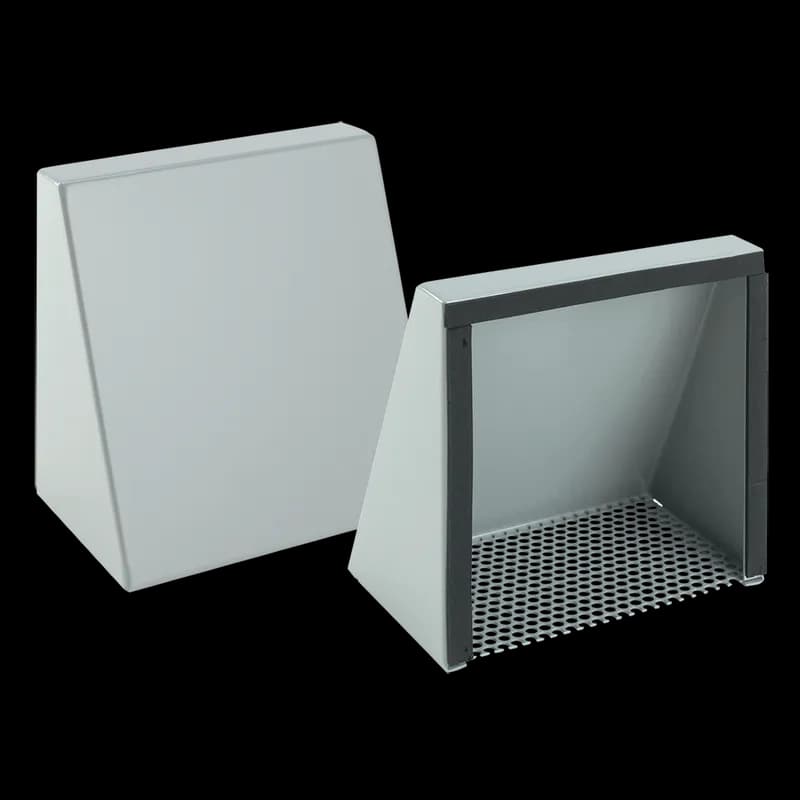

Overview
- Protects filter fan and exhaust grill from wind-driven rain and high-pressure hose water
- Easy one person installation with simple back panel mounting
- Easily accessed filter simplifies replacement
- IP54 ingress protection against dust and water ingress
- Compatible with nVent filter fans (HF09, HF10, TFP4, TFP6) and exhaust grilles (HG09, HG10, TEP4, TEP6)
Specifications
Application | Controls and Drives;Power Distribution |
Color | Unpainted |
Depth | 97 mm |
Depth | 3.81 in |
Finish | Brushed |
Height | 15 in |
Height | 381 mm |
Material | Stainless Steel 304 |
Protection Rating | NEMA Type 3R |
Thickness | 51.40mm (2.024") |
Thickness | 16 ga |
Thickness | 1.52 mm |
Type | Fans and Filter Fans |
Weight | 8.3 lb |
Width | 12 IN |
Width | 305 mm |
Package Dimensions (L x W x H) | 16.4 IN x 13.7 IN x 7.4 IN |
Package Dimensions (L x W x H) | 41.656 cm x 34.798 cm x 18.796 cm |
Package Weight (Imperial) | 8.300 L |
Package Weight (Metric) | 3.765 kg |
How to Install the HH10SS04001 Filter Fan Shroud
This guide provides step-by-step instructions for installing the HH10SS04001 filter fan shroud to maintain UL Type 3R rating.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Prepare the installation area
Ensure the installation area is clean and free of debris. Verify that the mounting surface is suitable for the filter fan shroud.
- Mount the filter fan shroud
Secure the filter fan shroud to the designated mounting surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the wiring
Use wire strippers to prepare the wires, then connect them to the appropriate terminals on the filter fan shroud. Ensure all connections are secure and insulated.
- Verify electrical connections
Use a multimeter to check the voltage at the terminals to ensure proper electrical connections. Confirm that the readings are within the specified range.
- Install the filter media
Refer to the filter fan instruction manual to install the filter media correctly. Ensure the filter media is properly seated to maintain the Type 3R rating.
- Perform a final inspection
Inspect all connections and the mounting of the shroud. Ensure that the shroud cover is securely in place to maintain the Type 3R rating.
