Contact for Pricing

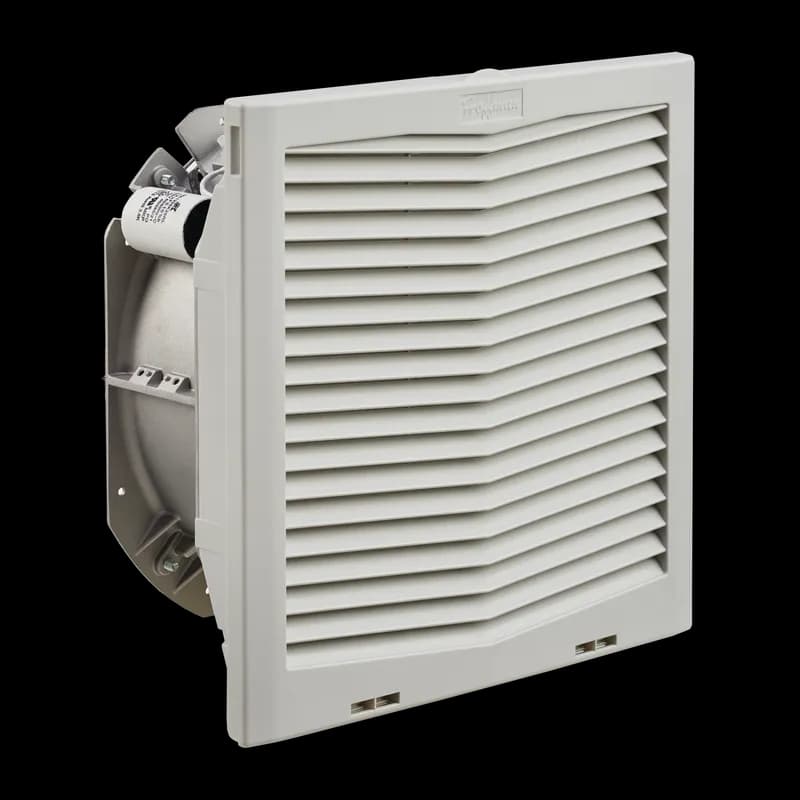

Overview
- 395 CFM (671 m³/hr) free airflow at 48V DC
- Type 12/IP54 rated for dust and water resistance
- Tool-free click-fit installation with finger-flick filter access
- Operating range: -10°C to 55°C (-14°F to 131°F)
- 59,000-hour service life with 12.8 x 12.82 x 6.30" dimensions
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Specifications
Airflow | 395 ft³/min |
Airflow | 671 m³/h |
Ambient Temperature | 14 to 131 deg F |
Ambient Temperature, Maximum | 131 F |
Ambient Temperature, Maximum | 55 C |
Ambient Temperature, Minimum | 14 F |
Ambient Temperature, Minimum | -10 C |
Amperage Rating | 1.12 A |
Application | Power Distribution; Controls and Drives |
Application | Controls and Drives;Power Distribution |
Color | Gray |
Color | Grey |
Color | Lt Gray |
Color | Light Gray |
Color Code | RAL 7035 |
Depth | 6.36 in |
Depth | 162 mm |
Finish | Smooth Matte |
Finish | Lt Gray;Smooth Matte |
Flow Rate | 395 CFM |
Height | 325 mm |
Height | 12.8 in |
Housing Material | Non-metallic |
Ip Rating | IP12 |
Material | Plastic |
Max Current | 1.12 A |
Mounting Type | Side-Mount |
Nominal Voltage | 48 V |
Operating Temperature | -40 to 60 |
Operating Temperature | 14-131 °F |
Series | HF |
Size | 13IN |
Size | 12.8 x 12.82 x 6.36 in |
Type | Fans and Filter Fans |
Voltage DC | 48-48 V |
Voltage Rating | 48 VDC |
Voltage Rating | 48 V |
Weight | 1.9 kg |
Weight | 5 lb |
Width | 12.82 in |
Width | 326 mm |
Package Dimensions (L x W x H) | 15 IN x 15 IN x 10.25 IN |
Package Dimensions (L x W x H) | 38.1 cm x 38.1 cm x 26.035 cm |
Package Weight (Imperial) | 5.000 L |
Package Weight (Metric) | 2.268 kg |
