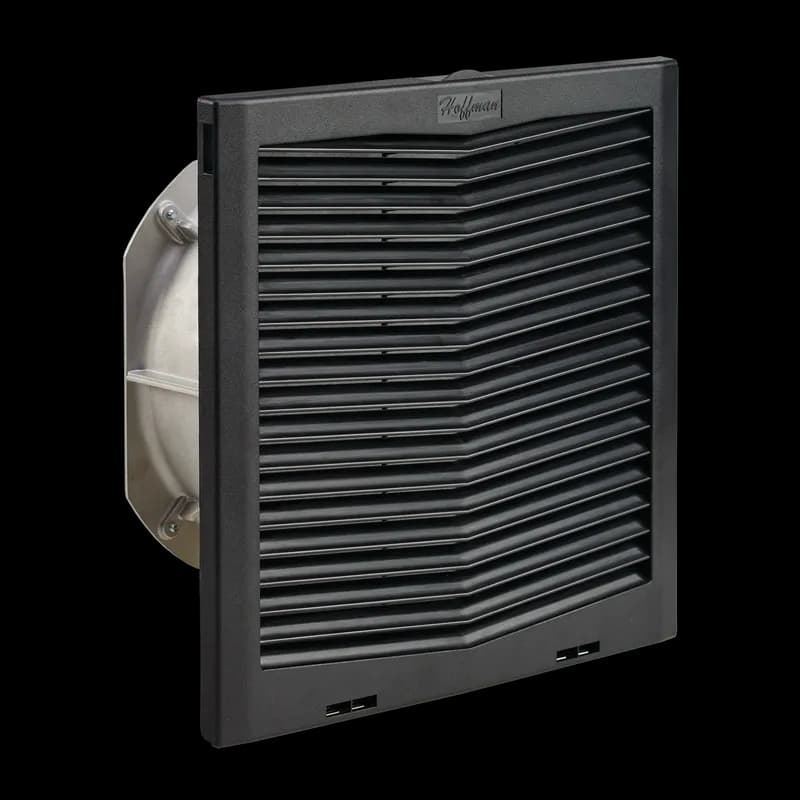

Overview
- 230V operation with 149 CFM airflow for effective enclosure cooling.
- IP55 rated for protection against dust and low-pressure water jets.
- Reverse flow design for optimized air intake and contaminant management.
- Tool-free, screw-less click-fit mounting for rapid installation.
- Easy-access grilles for quick and convenient filter replacement.
- Similar cut-out sizes as other filter fan manufacturers
- Terminal block connections
- Optional thermostat available to save energy and extend service life
- Hinged grille remains attached after opening
- Size rage from 4 inch (102 mm) to 13 inch (325 mm)
Specifications
Airflow | 253 m³/h |
Airflow | 149 ft³/min |
Ambient Temperature | 14 to 131 deg F |
Amperage Rating | .34/.37 A |
Application | Power Distribution; Controls and Drives |
Color | Black |
Color | Graphite Black |
Color Code | RAL 9011 |
Depth | 6.36 in |
Depth | 162 mm |
Finish | Smooth Matte |
Flow Rate | 149 CFM |
Height | 325 mm |
Height | 12.8 in |
Housing Material | Non-metallic |
IP Rating | IP55 |
Material | Plastic |
Max Current | 0.37 A |
Mounting Type | Side-Mount |
Nominal Voltage | 230 V |
Operating Temperature | -10-55 °C |
Operating Temperature | 14-131 °F |
Series | HF |
Series | HF13 |
Size | 12.8 x 12.82 x 6.36 in |
Size | 13IN |
Type | Fans and Filter Fans |
Voltage AC | 200-250 V |
Voltage Rating | 230 VAC Rvrs |
Voltage Rating | 230 V |
Weight | 1.9 kg |
Weight | 2 lb |
Width | 12.82 in |
Width | 326 mm |
Package Dimensions (L x W x H) | 2 IN x 2 IN x 2 IN |
Package Dimensions (L x W x H) | 5.08 cm x 5.08 cm x 5.08 cm |
Package Weight (Imperial) | 2.000 L |
Package Weight (Metric) | 0.907 kg |
How to Install the HF1326513R Filter Fan
This guide provides step-by-step instructions for installing the HF1326513R filter fan into an enclosure, ensuring proper mounting and wiring.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Drill, Multimeter
Supplies needed:
Mounting screws, Terminal connectors, Cutout template
- Prepare the enclosure
Apply the cutout template to the desired location on the side of the enclosure. Ensure the area is clear of internal components before cutting.
- Cut the hole
Using the appropriate size cutout tool, cut a hole in the enclosure according to the model specifications. Deburr the cutting edge to avoid sharp edges.
- Insert the filter fan
Insert the filter fan or grille into the cutout until all corners snap and lock into place. If necessary, remove the grille to install mounting fasteners for thicker enclosure materials.
- Secure the fan
If the enclosure material thickness is between 0.10 (2.5 mm) and 0.14 (3.5 mm), use mounting fasteners to secure the fan. For thickness greater than 0.14 (3.5 mm), ensure fasteners are installed to maintain the IP rating.
- Wire the filter fan
Follow the wiring diagrams provided in the manual to connect the filter fan to the power supply. Ensure all connections are secure and insulated.
- Verify installation
Check that the installed filter fan has a minimum clearance of 7.00 (178 mm) from any obstructions. Use a multimeter to verify electrical connections before powering on.
