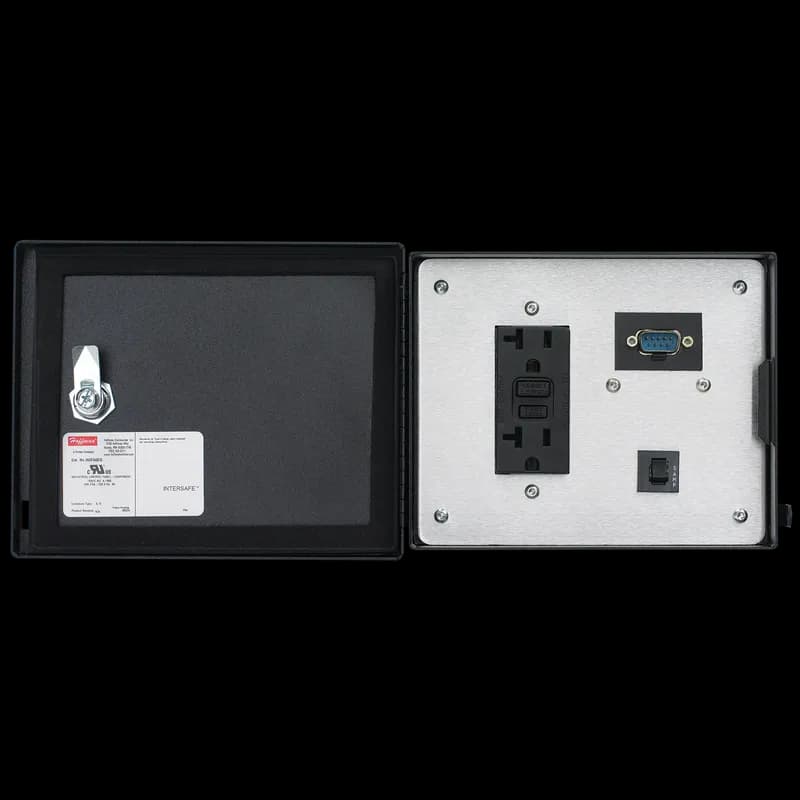

nVent HDP5PBSS - Profibus Prog Port Dup 4X, Bulletin A70E (INTERSAFE Data Interface Ports), Size/Dims: 143x176x24mm, Material/Finish: SS Type 304
nVent

HDP5PBSS

UPC: 783510159344

Contact for Pricing

Overview

The nVent HDP5PBSS Profibus Programming Port Duplicator, part of the esteemed Bulletin A70E series, is engineered to provide robust and reliable data interface solutions for demanding industrial environments. This high-performance device is specifically designed to facilitate seamless programming and diagnostic access to Profibus networks, ensuring optimal operation and minimal downtime in critical automation and control systems. Its construction from premium Stainless Steel Type 304 guarantees exceptional resistance to corrosion, chemicals, and physical wear, making it an ideal choice for deployment in harsh conditions, including manufacturing plants, chemical processing facilities, and offshore installations. The HDP5PBSS offers a compact yet highly functional design, with precise dimensions of 143x176x24mm, allowing for efficient integration into existing control cabinets and enclosures. This programming port duplicator is essential for technicians and engineers who require consistent and secure access to Profibus devices for configuration, troubleshooting, and maintenance. By providing a duplicated port, it allows for simultaneous connection of programming tools without disrupting ongoing network operations, thereby enhancing operational efficiency and reducing the risk of production interruptions. The inherent durability and quality associated with nVent products ensure that the HDP5PBSS will perform reliably over its extended service life. Key features and benefits of the nVent HDP5PBSS include: * **Durable Stainless Steel Construction:** Manufactured from Type 304 stainless steel, offering superior resistance to environmental factors and ensuring longevity. * **Profibus Connectivity:** Specifically designed for Profibus networks, supporting critical communication protocols in industrial automation. * **Programming Port Duplication:** Enables simultaneous connection of diagnostic and programming tools without interrupting live network traffic. * **Compact Form Factor:** Measuring 143x176x24mm, it is designed for easy installation in space-constrained control panels. * **Bulletin A70E Series:** Part of a trusted series known for its reliability and performance in industrial applications. This device is indispensable for sectors such as automotive manufacturing, pharmaceuticals, food and beverage processing, and any industry relying on sophisticated Profibus-based automation. The nVent HDP5PBSS is a testament to nVent's commitment to delivering innovative and dependable solutions that empower industrial professionals to maintain and optimize their critical infrastructure. Its robust build quality, combined with its specialized functionality, makes it a valuable asset for ensuring the integrity and efficiency of industrial communication networks.
  • nVent HDP5PBSS Profibus Programming Port Duplicator
  • Bulletin A70E Series for industrial reliability
  • Constructed from durable Type 304 Stainless Steel
  • Compact dimensions: 143x176x24mm
  • Ensures seamless Profibus network access and diagnostics

Specifications

Material
Stainless Steel Type 304
Series
A70E
Size
143x176x24 mm
Package Dimensions (L x W x H)
9.5 IN x 9 IN x 7.25 IN
Package Dimensions (L x W x H)
24.13 cm x 22.86 cm x 18.415 cm
Package Weight (Imperial)
3.000 L
Package Weight (Metric)
1.361 kg
