Overview
- Front-mounted, hinged panel for nVent Fusion G7 enclosures
- 170 degrees of rotation for flexible installation
- Can hinge from either the right or left side
- Made from durable aluminum with white-finished supports
- Anodized black hinge blocks for long-term reliability
- Field-installable without drilling
- Designed for nVent Fusion G7 enclosures
Specifications
Application | Controls and Drives |
Color | White |
Color | Unpainted |
Dimensions | 36.02 x 28.86 in |
Finish | Anodized |
Fits | 39.37 x 31.50 in |
Material | Aluminum |
Modification Services | Yes |
Mounting Type | Front-mounted hinge |
Product Family | Fusion G7 |
Series | Fusion G7 |
Size | 1000x800xmm |
Size | 1000x800mm |
Thickness | 0.1 in |
Type | Industrial Panels and Panel Accessories |
Weight | 13 lb |
Package Dimensions (L x W x H) | 37.88 IN x 30.5 IN x 2.5 IN |
Package Dimensions (L x W x H) | 96.2152 cm x 77.47 cm x 6.35 cm |
Package Weight (Imperial) | 13.000 L |
Package Weight (Metric) | 5.897 kg |
BMB244S4P

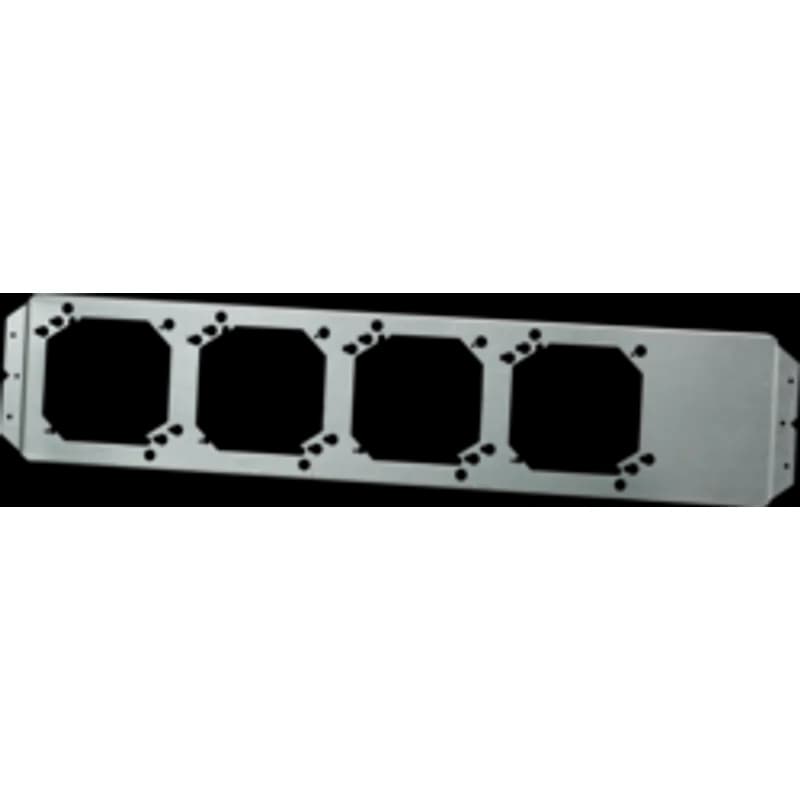

Electrical box mounting bracket for mounting up to four 4 in. or 4 11/16 in. boxes or plaster rings. It is made of steel with a pre-galvanized silver finish. The bracket supports 1-1/2 or 2-1/8 in. deep boxes, plaster rings, or low voltage mounting devices from one bracket between studs. Dimensions are 24 in. length, 5 in. height, and 1/2 in. depth.
TC150
Universal raintight hubs are rated for outdoor enclosures and come in a variety of sizes for every ABB load center or panel. The TC150 has a diameter of 1.50" and has a base size of 3".
General Installation Guide for GSP500500A
This guide provides general installation principles for the GSP500500A, as specific instructions were not detailed in the provided document.
Estimated time: 30m
Tools needed:
Standard Screwdriver Set, Wire Strippers, Multimeter
Supplies needed:
Mounting Hardware, Wire Connectors
- Review Safety Guidelines
Before beginning any installation, carefully review all general safety guidelines and product-specific warnings. Ensure power is disconnected from the installation area to prevent electrical hazards.
- Prepare Mounting Location
Select a suitable mounting location that meets environmental requirements and allows for proper ventilation and access. Clean the surface and prepare any necessary mounting holes according to general best practices.
- Secure the Device
Mount the GSP500500A securely using appropriate mounting hardware. Verify that the device is stable and properly aligned before proceeding with any wiring or power connections to ensure safe and reliable operation.
