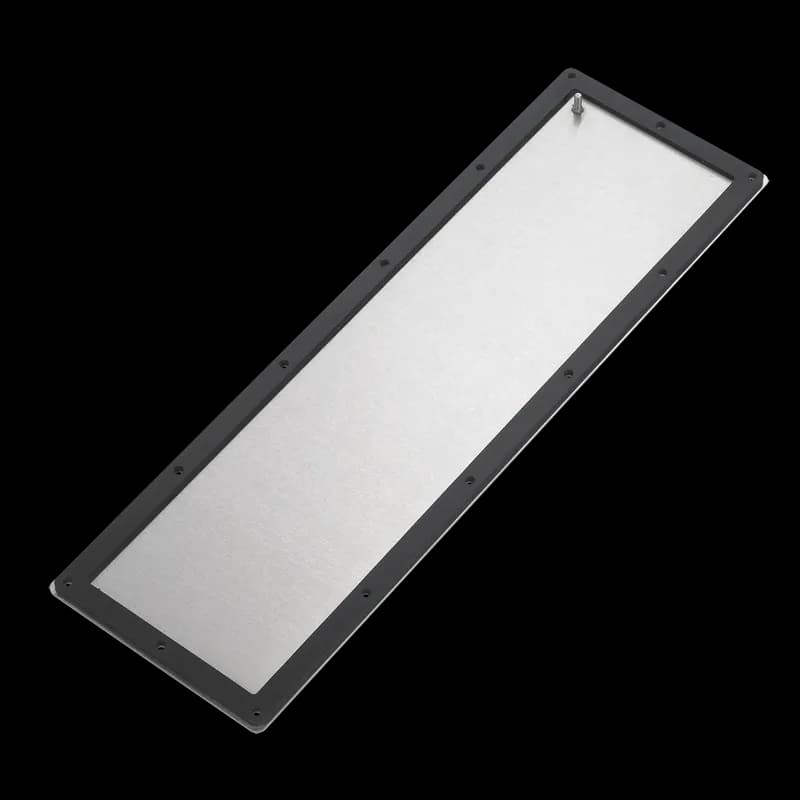

nVent GP2412 Gland Plate, Type 4 and 12, 12 Gauge, 22.98x8.48, Gray, Steel
UPC: 783510272074
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Maintains UL/NEMA Type 4 and Type 12 if properly installed in an nVent HOFFMAN enclosure
- ANSI 61 gray polyester powder paint finish for corrosion resistance
- Maintains UL Type 4 and Type 12 enclosure ratings
- Removable design for flexible cable entry/egress
- Includes hardware kit for easy installation
Specifications
Accessory Type | Shelves, Keyboard Trays and Gland Plates |
Application | Controls and Drives;Power Distribution |
Color | Gray |
Color Code | ANSI 61 |
Cutout Size | 21.50 x 7.00 in |
Cutout Size | 18.69 x 7.19 in |
Dimensions | 22.98 x 8.48 in |
Dimensions | 584 x 215 mm |
Finish | Powder Coated |
Height | 8.48 in |
Height | 44 IN |
Material | Mild Steel |
Material | Mild Steel;Steel |
Material | Steel |
Modification Services | No |
Mounting Type | Cut-out and Fasten |
NEMA Rating | 12 Indoor, dust-resistant |
Nema Rating | Type 4 and Type 12 |
Size | 22.98x8.48 in |
Size | 22.98x8.48 |
Thickness | 2.66 mm |
Thickness | 51.40mm (2.024") |
Thickness | 12 ga |
Type | External Mounting for Industrial Enclosures |
Weight | 6.3 lb |
Width | 584 mm |
Width | 22.98 in |
Works With | NEMA |
Package Dimensions (L x W x H) | 23.6 IN x 9.1 IN x 2 IN |
Package Dimensions (L x W x H) | 59.944 cm x 23.114 cm x 5.08 cm |
Package Weight (Imperial) | 6.300 L |
Package Weight (Metric) | 2.858 kg |
