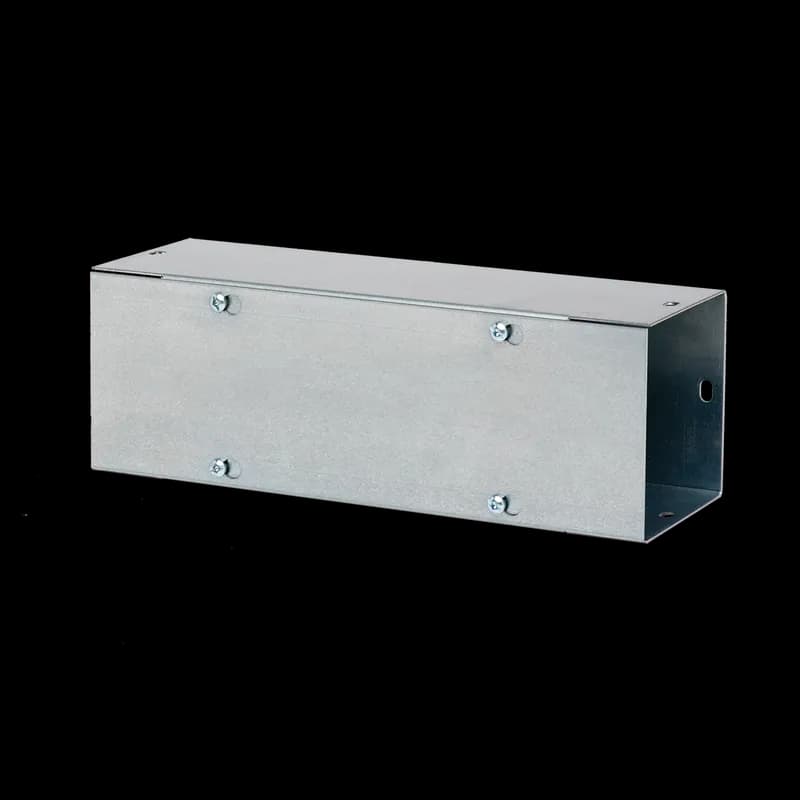

nVent F88T196GVP - Straight Section Lay-in Flat-Cover Type 1 no KOs, 8x8x96, Gray, Steel
nVent

F88T196GVP

UPC: 783510582579

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The nVent F88T196GVP is a robust 8x8x96 inch steel straight section lay-in wireway designed for efficient and secure cable management in industrial and commercial applications. Manufactured by nVent, a trusted leader in electrical solutions, this Type 1 wireway offers a superior alternative to traditional pull-through systems, significantly reducing the risk of insulation damage and simplifying installation. This straight section features a unique lay-in design, allowing wires and cables to be easily placed into the open side of the wireway without the need for pulling. This method is crucial for protecting sensitive cable insulation, preventing nicks, scrapes, and abrasions that can compromise system integrity and lead to premature failure. The flat cover design is engineered for seamless integration, enabling flush mounting with walls or ceilings for a clean, professional aesthetic and optimal space utilization. Keyhole screw slots on the flat covers facilitate quick and straightforward access for maintenance or modifications, minimizing downtime. Constructed from durable steel and finished in a neutral gray, the F88T196GVP is built to withstand demanding environments. Its substantial 8x8 inch cross-section and 96-inch length provide ample capacity for complex wiring configurations. This wireway is ideal for a wide range of applications, including: * **Industrial Facilities:** Protecting power and control cables in manufacturing plants, processing facilities, and heavy machinery installations. * **Commercial Buildings:** Organizing and safeguarding data, communication, and electrical wiring in office spaces, retail environments, and data centers. * **Infrastructure Projects:** Ensuring the reliable management of cables in transportation hubs, utility substations, and public works. The lay-in functionality is a significant advantage for installers, allowing for faster project completion and reduced labor costs. The absence of pull-through requirements also means that even pre-terminated cables can be accommodated without issue. The robust steel construction ensures long-term durability and protection against physical impact and environmental factors. When selecting wireway solutions, professionals prioritize ease of installation, cable protection, and system reliability. The nVent F88T196GVP excels in all these areas, making it a preferred choice for critical infrastructure and demanding operational settings. The 8x8x96 inch dimensions offer substantial volume for managing numerous cables, supporting both power and data distribution needs. Its Type 1 rating signifies its suitability for general-purpose indoor use, providing a secure enclosure for your vital electrical and communication systems. Trust nVent for high-quality wireway solutions that enhance safety, efficiency, and longevity.
  • Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
  • Sections are completely open on one side so wires and cables can be laid in along wireway run
  • No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
  • Flat cover design allows for mounting flush with walls or ceilings
  • Keyhole screw slots on flat covers provide easy access
  • Sections are available in lengths from 12 inch to 120 inch, with or without knockouts

Specifications

Application
Power Distribution
Color
Gray
Color
Grey
Color Code
ANSI 61
Depth
13 IN
Depth
96 in
Finish
Powder Coat
Height
44 IN
Height
8 IN
IP Rating
IP30
Material
Mild Steel
NEMA Rating
1
Protection Rating
NEMA Type 1
Thickness
14 ga
Thickness
51.40mm (2.024")
Type
Commercial Lay-in Flat Cover Type 1 Wireway;Straight Section
Weight
68.3 lb
Width
23 IN
Width
8 in
Wireway
Lay-In NEMA Type 1 Painted Flat-Cover Wireway
Straight Section Lay-in Flat-Cover Type 1 no KOs, 10x10x96, Gray, Steel

F1010T196GVP

Straight Section Lay-in Flat-Cover Type 1 no KOs, 10x10x96, Gray, Steel
Type 3R Wiring Trough - 8x8x36 - Galv/Gray

C3RWT836

Type 3R Wiring Trough - 8x8x36 - Galv/Gray
Twin-70 raceway base, 10 foot length. Supplied with pre-punched mounting holes. 2' of cover needed for every 1' of Twin-70 base.

T702BIW10

Twin-70 raceway base, 10 foot length. Supplied with pre-punched mounting holes. 2' of cover needed for every 1' of Twin-70 base.
Wire Safe Fitting - 6 inch X 6 Inch External Coupling.

EGCER

Wire Safe Fitting - 6 inch X 6 Inch External Coupling.
The T-45 raceway base with adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and Off White.

T45BIW10-A

The T-45 raceway base with adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and Off White.
The T-45 raceway base without adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and White.

T45BWH8

The T-45 raceway base without adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and White.
The T-45 raceway base without adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 8 ft and Electric Ivory.

T45BEI8

The T-45 raceway base without adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 8 ft and Electric Ivory.
The T-45 Power Rated Raceway Cover is designed to snap on to the base to create a tamper resistant cable routing solution along perimeter walls. It is 8 ft and Electric Ivory

T45CEI8

The T-45 Power Rated Raceway Cover is designed to snap on to the base to create a tamper resistant cable routing solution along perimeter walls. It is 8 ft and Electric Ivory

Frequently Asked Questions

What are the dimensions of the F88T196GVP straight section?

The F88T196GVP straight section has a height of 8 inches, a width of 8 inches, and a depth of 96 inches.

What material is the F88T196GVP straight section made of?

The F88T196GVP straight section is made of mild steel with a powder-coated gray finish.

What is the purpose of the F88T196GVP straight section?

This straight section is used for enclosing wire and cable in wireway runs, allowing wires to be laid in.

What is the thickness of the F88T196GVP straight section?

The F88T196GVP straight section has a material thickness of 14 gauge.

What is the weight of the F88T196GVP straight section?

The F88T196GVP straight section weighs 68.3 pounds.

What type of cover does the F88T196GVP straight section have?

The F88T196GVP straight section features a flat-cover design with keyhole screw slots for easy installation and removal.

Are there knockouts on the F88T196GVP straight section?

The F88T196GVP is a Type 1 straight section with no knockouts.

What are the benefits of the lay-in design?

The lay-in design allows wires and cables to be placed along the run, eliminating the need for pulling which can damage insulation.

What are the installation requirements for nVent products?

nVent products must be installed and used according to nVent's product instruction sheets and training materials.

What are the available lengths for these straight sections?

Straight sections are available in lengths ranging from 12 to 120 inches.
