Overview

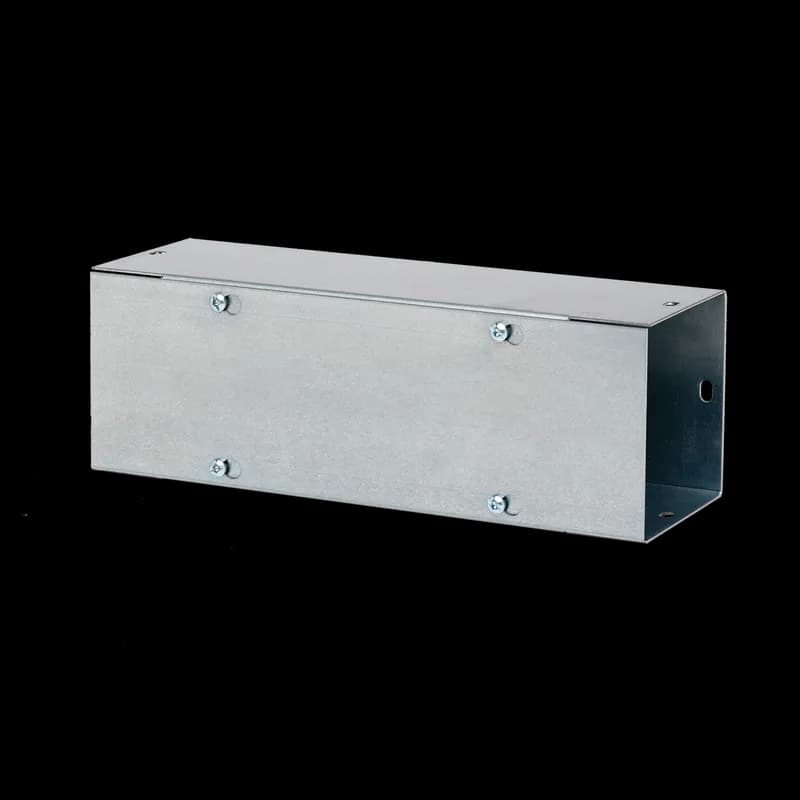

- Lay-in Flat-Cover Type 1 Straight Sections are used for enclosing wire and cable in wireway runs
- Sections are completely open on one side so wires and cables can be laid in along wireway run
- No pulling through of wires or cables prevents damage to insulation that often occurs in a pull-through wiring system
- Flat cover design allows for mounting flush with walls or ceilings
- Keyhole screw slots on flat covers provide easy access. Galvanized material provides superior corrosion protection for outdoor applications
- Sections are available in lengths from 12 inch to 120 inch, with or without knockouts.
Specifications
Application | Power Distribution |
Color | Galvanized |
Color | Unpainted |
Depth | 13 IN |
Depth | 18 IN |
Depth | 457 mm |
Finish | Galvanized |
Height | 44 IN |
Height | 6 |
Height | 152 |
Knockouts | No |
Knockouts | False |
Material | Steel |
Material | Mild Steel |
Material | Mild Steel;Steel |
Modification Services | No |
NEMA Rating | 1 Indoor, electrical protection |
NEMA Rating | Type 1 |
NEMA Rating | 1 |
Protection Rating | NEMA Type 1 |
Series | WW Series |
Size | 6x6x18 inch |
Thickness | 1.52 mm |
Thickness | 16 ga |
Thickness | 51.40mm (2.024") |
Type | Straight Section |
Type | Commercial Lay-in Galvanized Flat-Cover Type 1 Wireway;Straight Section |
Type Number | Type 1 |
Weight | 7.5 lb |
Width | 23 IN |
Width | 6 |
Width | 152 |
Wireway | Lay-In NEMA Type 1 Galvanized Wireway |
Package Dimensions (L x W x H) | 18.25 IN x 6.25 IN x 6.25 IN |
Package Dimensions (L x W x H) | 46.355 cm x 15.875 cm x 15.875 cm |
Package Weight (Imperial) | 7.500 L |
Package Weight (Metric) | 3.402 kg |
How to Install nVent HOFFMAN Type 1 Snap Connect Wireway
This guide provides step-by-step instructions for connecting and securing nVent HOFFMAN Type 1 Wireway sections using the integrated snap connect feature.
Estimated time: 15m
Tools needed:
Hex driver (for 10-32 screws), Torque wrench (optional, for precise tightening)
Supplies needed:
SCR HEX 10-32X.250 (securing screws)
- Connect Wireway Sections
Align two sections of the Type 1 Wireway and push them together firmly until they audibly 'Click' into place, ensuring the snap connect feature is fully engaged.
- Install Securing Screws
Insert the 10-32 hex head securing screws (SCR HEX 10-32X.250) into the designated holes at the connection points of the wireway sections.
- Tighten Securing Screws
Using a hex driver, tighten the installed hex head screws to a torque of 4.5 0.5 N*M [40 4.0 LBF*IN]. Ensure all connections are secure and stable.
