nVent F44GDB - Drop and Bracket Hangers, fits 4.00x4.00, Gray, Steel
nVent

F44GDB

UPC: 783510522902

Contact for Pricing

Overview

The nVent F44GDB Drop and Bracket Hanger provides secure support for 4.00 x 4.00 inch wireway systems in industrial and commercial installations. Manufactured by nVent, a global leader in electrical infrastructure solutions, this hanger ensures stable cable and conduit routing to prevent sagging and maintain system integrity. The steel construction with durable gray coating delivers corrosion resistance and long-lasting performance in demanding environments such as manufacturing plants, data centers, and processing facilities. Key specifications include a maximum wireway length of 10.50 inches (267 mm) and a mounting dimension (P) of 6.00 inches (152 mm). The hanger features a drop and bracket design for versatile installation options, including surface mounting or suspension from above. With a rated dimension (R) of 4.12 inches (105 mm) and a support span (S) of 9.25 inches (235 mm), it accommodates standard 4x4 wireway configurations while maintaining structural stability. The F44GDB is part of nVent's F40PF series, designed for reliable wireway management in critical electrical infrastructure applications.
  • Drop and bracket hangers support a wireway run
  • Maximum wireway length: 10.50 inches (267 mm)
  • Mounting dimension (P): 6.00 inches (152 mm)
  • Steel construction with durable gray coating for corrosion resistance
  • Versatile drop and bracket design for surface or suspended mounting

Specifications

Application
Power Distribution
Color
Gray
Color Code
ANSI 61
Finish
Painted;Powder Coat
Finish
Powder Coated
Height
44 IN
Height
4
Height
64
IP Rating
IP30
Material
Mild Steel
Material
Mild Steel;Steel
Material
Steel
Max N
10.5 in
Max N
22 in
Modification Services
Yes
NEMA Rating
1 Indoor, electrical protection
Protection Rating
NEMA Type 1
Size
4.00x4.00
Thickness
16 ga
Thickness
51.40mm (2.024")
Thickness
1.52 mm
Type
Hanger
Type
Commercial Lay-in Hinged-Cover Type 1 Wireway;Hanger
Type Number
Type 1
Weight
1.01 lb
Width
2.5
Width
64
Width
23 IN
Wireway
Lay-In NEMA Type 1 Hinged-Cover Wireway
Package Dimensions (L x W x H)
9.25 IN x 4.5 IN x 2 IN
Package Dimensions (L x W x H)
23.495 cm x 11.43 cm x 5.08 cm
Package Weight (Imperial)
1.000 L
Package Weight (Metric)
0.454 kg
Panel Adapter LayIn Painted Wireway, 4.00x4.00, Gray, Mild Steel

F44GPA

Panel Adapter LayIn Painted Wireway, 4.00x4.00, Gray, Mild Steel
Universal U-Connector for LayIn Wireway, fits 4.00x4.00, Gray, Mild Steel

F44GUC

Universal U-Connector for LayIn Wireway, fits 4.00x4.00, Gray, Mild Steel
Reducer, 4x4 to 3x3, Gray, Steel

F44G33R

Reducer, 4x4 to 3x3, Gray, Steel
Open Adapter for LayIn Wireway, 4.00x4.00, Gray ANSI 61, Mild Steel

F44GOA

Open Adapter for LayIn Wireway, 4.00x4.00, Gray ANSI 61, Mild Steel

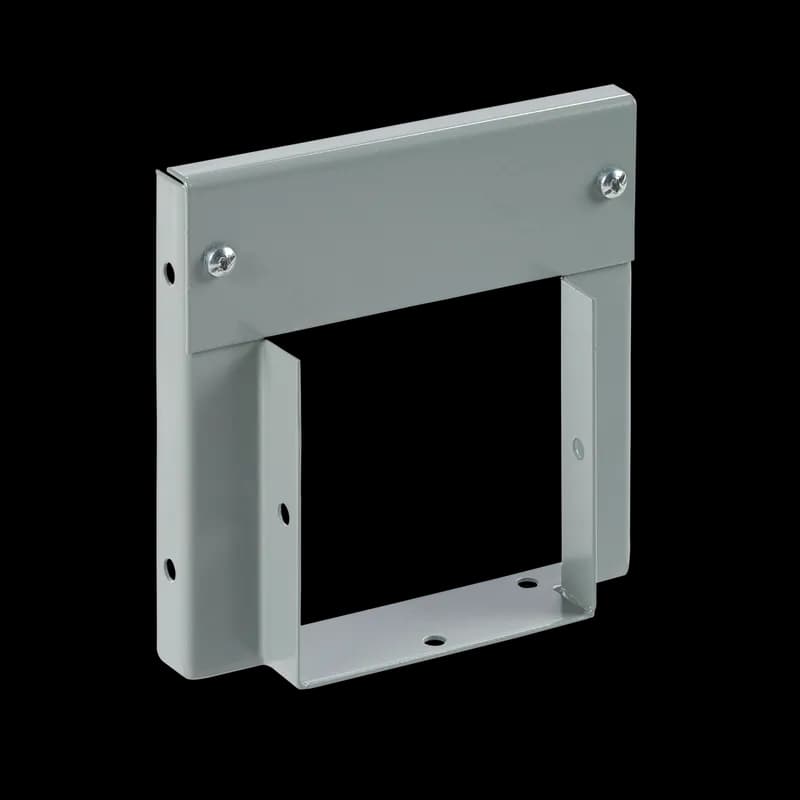

Reducer, 4x4 to2.5x2.5, Gray, Steel
