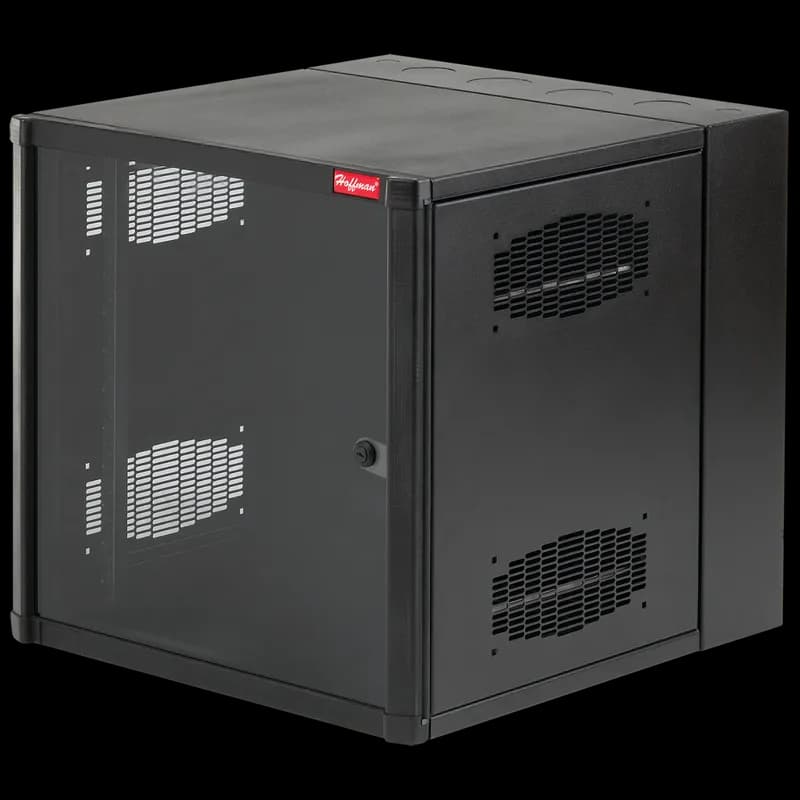

nVent EWMW242425 - AccessPlus Double-Hinge Type 1 Window, 24x24x25, Black, Steel

nVent EWMW242425 AccessPlus Double-Hinge Type 1 Window, 24x24x25, Black, Steel

UPC: 783510178581

Documents & Media
Installation Instructions

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent AccessPlus EWMW242425 is a robust, double-hinge Type 1 window enclosure designed for secure and accessible housing of 19-inch rack-mount equipment. Manufactured by nVent, a trusted leader in electrical enclosures and thermal management solutions, this enclosure provides a reliable environment for critical network, telecommunications, and industrial control systems. Its durable steel construction ensures protection against dust, dirt, and light impacts, making it suitable for a wide range of indoor applications. The AccessPlus cabinet system is engineered for versatility and ease of use, comprising three essential components: the front door, a center section, and the wall section. This modular design allows for efficient installation and straightforward access to equipment for maintenance, upgrades, or troubleshooting. The double-hinge mechanism on the front door facilitates a wider opening, granting technicians unobstructed access to the entire rack-mounted equipment bay. This is crucial in environments where rapid access and serviceability are paramount. Key features of the nVent AccessPlus EWMW242425 include: * **Durable Steel Construction:** Provides robust physical protection for sensitive electronics. * **Type 1 Rating:** Offers protection against falling dirt and light impacts, suitable for indoor environments. * **Double-Hinge Front Door:** Enhances accessibility for equipment servicing and maintenance. * **Integrated Window:** Allows for visual monitoring of equipment status without needing to open the enclosure. * **19-Inch Rack Mount Compatibility:** Standardized design for seamless integration with common rack-mount hardware. * **Generous Dimensions:** The 24x24x25 inch (height x width x depth) footprint offers ample space for a variety of equipment configurations. * **Black Powder Coat Finish:** Provides a professional aesthetic and added corrosion resistance. This enclosure is ideal for applications in commercial buildings, data centers, telecommunications facilities, and industrial control rooms where secure, organized, and accessible equipment housing is required. The integrated window is particularly beneficial for monitoring status indicators on network switches, routers, servers, or control panels, reducing the need for frequent door openings and maintaining the integrity of the enclosure's internal environment. The black finish offers a discreet and professional appearance that blends well with most industrial and commercial settings. nVent's commitment to quality manufacturing ensures that the EWMW242425 meets stringent industry standards, providing long-term reliability and performance for your critical infrastructure. The UNSPSC code 43223306 further categorizes this product within the broader market of electrical enclosures and cabinets, highlighting its role in protecting and organizing electronic components.
  • Double-hinged for easy equipment access; center section provides 19-in. rack mounting per EIA universal spacing and is accessed through the front door or swing the center section away from the wall section for rear access
  • Front door has either a solid steel or hardened, tinted safety-glass window door for superior scratch resistance
  • Center section easily removed from rear section; tool-less one person installation possible
  • Self-grounding, plated steel rack angles fully adjustable within center section
  • Wall section provides cable entry and cable management with knockouts or gland plates
  • Gland plate model provides easy retrofit and fast installation and allows for pre-terminated cables or pre-wired patch panels; no need to re-terminate and test
  • Self-locking center-to-wall section latches in two locations
  • Front access to all latches (no exposed side latches); cabinet can be installed tightly in corners
  • Vented sides provide cross flow ventilation to improve heat dissipation
  • Vertical cable manager included in 28-in.-wide models

Specifications

Additional Rack Angle, S=Square Hole T=Tapped Hole
EWMR24T or EWMR24S
Application
Networking, Storage and Data Center
Color
Jet Black
Color
Black
Color Code
RAL 9005
Depth
637 mm
Depth
25.09 in
Depth
637
Finish
Powder Coated
Finish
Black;Powder Coating
Height
23.62 in
Height
600 mm
Height
600
IP Rating
IP20
Load Capacity
250-250 lb
Load Rating
250 lbs.
Material
Mild Steel
Material
Mild Steel;Steel
Modification Services
Yes
NEMA Rating
1
NEMA Rating
1 Indoor, electrical protection
Product Family
AccessPlus
Protection Rating
NEMA Type 1
Rack Units
12 U
Thickness
1.9 mm
Thickness
14 ga
Thickness
1.9
Type
Data Networking Wall Mounted Cabinets
Type Number
Type 1
Weight
99 lb
Width
23.62 in
Width
526
Width
600 mm
Package Dimensions (L x W x H)
27.13 IN x 25.63 IN x 28.38 IN
Package Dimensions (L x W x H)
68.9102 cm x 65.1002 cm x 72.0852 cm
Package Weight (Imperial)
99.000 L
Package Weight (Metric)
44.906 kg
5-port Ethernet Switch

SDI-550

5-port Ethernet Switch
Fiber cable ODC to SC duplex - 670mm

Fiber cable ODC SC Duplex 670mm

Fiber cable ODC to SC duplex - 670mm
Power supply for DIN-rail

PS-60

Power supply for DIN-rail
Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .

ST4803PDGM

Surge-Trap® Surge Protective Device is a no-fuse surge suppressor. The Surge-Trap is a UL 1449 Third Edition compliant modular style surge protective device that is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator and a small foot print. A remote indicator option provides status to critical control circuit. The Surge-Trap provides advanced overvoltage protection utilizing Mersen's patented TPMOV® technology without additional protection devices. 480 Volts 3P Delta system type without N-G mode, with microswitch .
DIN rail is a universal mounting option for electrical and industrial control products such as circuit breakers electrical supplies terminal blocks and more. The rail system is used to stabilize a wide variety of devices and products. Ordering pre-cut DIN rail helps increase productivity and decrease jobsite clutter. On-site Flexibility Streamline custom cuts DIN rail to any length so it is ready to use when it arrives on the jobsite. Additionally DIN rail can be easily removed if relocation is necessary. Features of Custom DIN Rail from Streamline - All cut DIN rail from Streamline is galvanized steel made to eliminate rusting. Streamline ensures that all custom DIN rail orders are: De-burred Custom Length Any quantity 1-1000+ Quick turnaround (typically 2 weeks or less from receipt of order) This mechanical support structure is a must for all electrical parts solutions big or small. DIN rail allows for mounting hardware easily and quickly. These durable and versatile rails make the perfect solution for all mounting applications. Save space time and money with these cost-effective mounting solutions. Order your custom cut DIN rail today!

CUSTOMDIN

DIN rail is a universal mounting option for electrical and industrial control products such as circuit breakers electrical supplies terminal blocks and more. The rail system is used to stabilize a wide variety of devices and products. Ordering pre-cut DIN rail helps increase productivity and decrease jobsite clutter. On-site Flexibility Streamline custom cuts DIN rail to any length so it is ready to use when it arrives on the jobsite. Additionally DIN rail can be easily removed if relocation is necessary. Features of Custom DIN Rail from Streamline - All cut DIN rail from Streamline is galvanized steel made to eliminate rusting. Streamline ensures that all custom DIN rail orders are: De-burred Custom Length Any quantity 1-1000+ Quick turnaround (typically 2 weeks or less from receipt of order) This mechanical support structure is a must for all electrical parts solutions big or small. DIN rail allows for mounting hardware easily and quickly. These durable and versatile rails make the perfect solution for all mounting applications. Save space time and money with these cost-effective mounting solutions. Order your custom cut DIN rail today!
Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included

3085

Super-Safeway® Multiple Outlet Box, Extended Depth, 2-Sided, F2 (1/2") Cord Grip Body, with Flip Lids for (2) Duplex Not Included
Cable Manager, fits 19-inch open rack, Black, Steel

ECK19H

Cable Manager, fits 19-inch open rack, Black, Steel
6U PERF PANEL

PPFS19010BK

6U PERF PANEL
OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL

F62ERLNSNSNM002

OM1 2 fiber, 16mm jacket, patchcord, Riser (OFNR) rated, LC duplex to SC duplex, Std IL
The Mini-Com Flush Mount Modular Patch Panel accepts up to 24 Mini-Com Modules for unshielded applications in 1 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel mounts flush with the rack and can be identified with adhesive labels and is black.

CPP24FMWBLY

The Mini-Com Flush Mount Modular Patch Panel accepts up to 24 Mini-Com Modules for unshielded applications in 1 RU, and mounts to 19 inch and 23 inch racks and cabinets. The panel mounts flush with the rack and can be identified with adhesive labels and is black.
Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.

CESUM3-C15

Membrane plate cable entry system offers a good strain relief while maintaining IP/NEMA ingress sealing rating. The CESUM3-C15 is a Rectangular Un-Terminated Cable Entry System, 4.1" (103 mm) Long, with 8 Openings 0.12" (3.0 mm) to 0.31" (8 mm), 3 Openings 0.20" (5.1 mm) to 0.35" (9.0 mm), 4 Openings 0.3" (7.5 mm) to 0.47" (12.0 mm). Color is Black. Standard Package Quantity is 1 PC.
The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

UTP6AL1MBU

The TX6A™ 10Gig Cat 6A UTP Patch Cord is a 1-Meter, Blue cord constructed of 24 AWG, unshielded, twisted pair stranded, LSZH (60332-1) cable with high-performance modular plugs. Its MaTriX Tape Technology limits alien crosstalk, ensuring 10 Gb/s transmission. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
