Overview

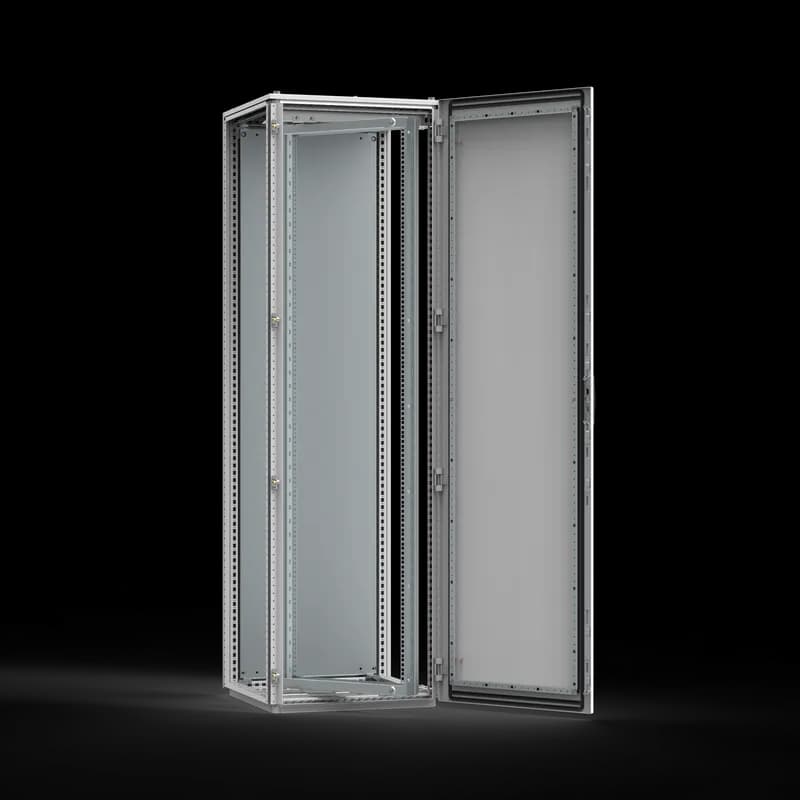

- Description: Full height swing frame for 19” components allowing left and right hand opening. Can be used in steel, combinable and compact enclosures. Hinges designed to give extra build-in depth. Adjustable top hinge for square mounting of the swing fram
- Maximum load: 1800N, supplied with a self positioning device.
- Lock: Two 3 mm double-bit locks.
- Material: 19" vertical profiles 2 mm zinc plated steel. Frame: vertical profiles 2 mm and horizontal profiles 3 mm.
- Pack quantity: 1 swing frame with hinges.
- Mounting requirements: ESFC for 600 mm, 800 mm, 1000 mm, 1200 mm wide steel, combinable enclosures. Add ESFB for mounting in a steel, combinable enclosure.
- Lock: two 3 mm double-bit locks
- Mounting requirements: ESFC for 600mm (24), 800mm (31), 1000mm (39), 1200mm (47) wide steel, combinable enclosures; add ESFB for mounting in a steel, combinable enclosure
Specifications
Application | Factory Automation and Process Control; Controls and Drives |
Color | Unpainted |
Consist Of | Full Height Swing Frames; Mounting Components and Instruction Manual |
Construction | 14 gauge |
Depth | 3.15 in |
Depth | 80 mm |
Enclosure Material | Mild Steel |
Finish | Zinc Plated |
Height | 78.74 in |
Height | 2,000 mm |
Height | 1,867 mm |
Material | Mild Steel |
Material | Mild Steel with Zinc Plating |
Mounting Type | Adjustable top hinge with transversal support bars |
Package Quantity | 1 |
Product Family | Free-Standing |
Rack Units | 40 U |
Series | ESFC |
Size | 73.5 x 19.65 x 3.15 inch |
Size | 1867x499x80mm |
Thickness | 2 mm |
Thickness | 14 ga |
Type | Mounting |
Type | IEC Enclosure Accessories |
Weight | 30.53 lb |
Weight | 13.8 kg |
Width | 499 mm |
Width | 19.65 in |
Works With | IEC |
Package Weight (Imperial) | 30.500 L |
Package Weight (Metric) | 13.835 kg |
