Contact for Pricing

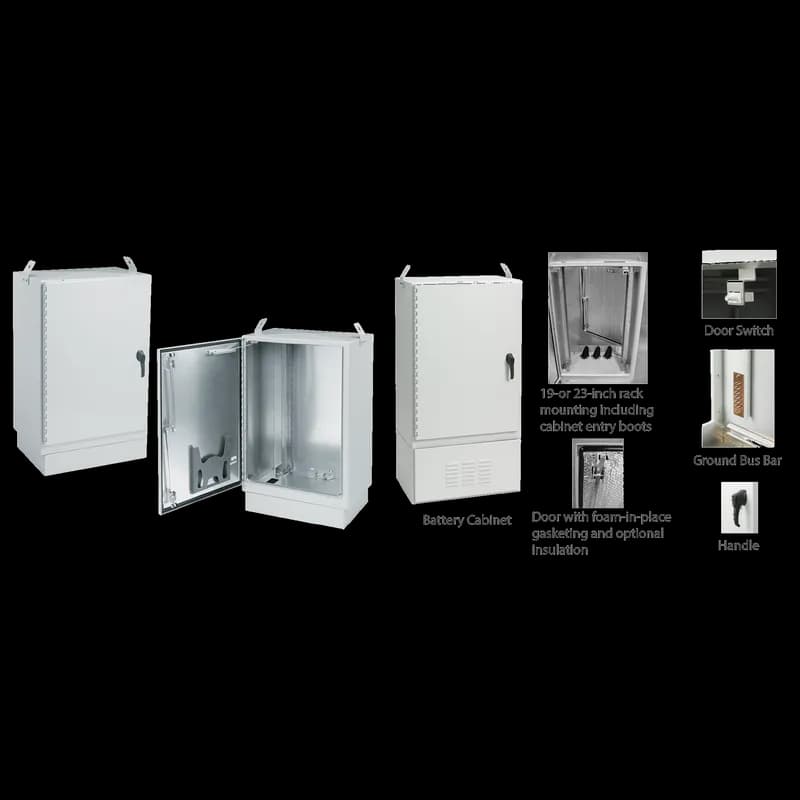

Overview
- Bonding provision on door; ground stud on body
- Seams continuously welded and ground smooth for a finished appearance
- Foam-in-place seamless gasket for superior protection against dust and liquid ingress
- 1- or 3-point latching (screwdriver slot), depending on door size
- Optional door stop/wind latch holds door in place during service
- Two door/hinge styles available
- Easily removable door with hidden hinge and retaineing hinge pin
- Optional solar shield top
Specifications
Application | Datacom and Telecom Equipment |
Body Thickness | 0.08 in |
Body Thickness | 16 ga |
Color | Light Gray |
Color | Gray |
Color | Grey |
Color Code | RAL 7035 |
Depth | 11.81 |
Depth | 300 |
Depth | 300 mm |
Door Thickness | 0.1 in |
Door Thickness | 14 ga |
Finish | Gray;Powder Coating |
Finish | Powder Coated |
Height | 1,500 mm |
Height | 59.06 |
Height | 1,500 |
IP Rating | IP66 |
Latch Points | 3 |
Latch Quantity | 3 |
Material | Aluminum |
Modification Services | Yes |
NEMA Rating | 4X Watertight, corrosion-resistant |
NEMA Rating | 4X |
Package Weight | 78 lb |
Product Family | ComLine |
Protection Rating | NEMA Type 12 |
Type | Data Networking Wall Mounted Cabinets |
Type Number | Type 3R |
Weight | 60 lb |
Width | 35.43 |
Width | 900 |
Width | 900 mm |
Package Dimensions (L x W x H) | 61.25 IN x 37.63 IN x 16.5 IN |
Package Dimensions (L x W x H) | 155.575 cm x 95.5802 cm x 41.91 cm |
Package Weight (Imperial) | 60.000 L |
Package Weight (Metric) | 27.216 kg |
