nVent ECK01 - Earthing copper angle 30x5, Fixation for 30x5 copper bar
nVent

ECK01

UPC: 783510473976

Contact for Pricing

Overview

The nVent HOFFMAN ECK01 Earthing Copper Angle 30x5 is a high-performance, prefabricated support bracket engineered for reliable electrical grounding between metallic components and enclosures. Designed and rigorously tested to integrate seamlessly with nVent HOFFMAN enclosures, this copper angle bracket ensures optimal conductivity and long-term corrosion resistance, making it an essential component for industrial safety and compliance. Manufactured from premium copper, the ECK01 provides superior electrical performance while maintaining mechanical durability in demanding environments. The 30x5 mm dimensions are specifically optimized for compatibility with standard copper bars and grounding systems, offering a robust solution for earthing applications across diverse industrial sectors. Key applications for the ECK01 include grounding metallic panels, mounting plates, and structural components within electrical enclosures, control cabinets, and industrial machinery. Its design facilitates easy installation and secure fixation, reducing downtime during maintenance or system upgrades. The bracket is particularly well-suited for use in harsh or corrosive environments where reliability and longevity are critical. When paired with nVent’s complementary earthing cables (such as ECFA or ECFE) and connection sets (ECF or ECP), the ECK01 forms a complete grounding system that meets stringent safety standards, including those for potential equalization and fault current dissipation. nVent HOFFMAN, a trusted leader in industrial enclosure solutions, ensures that the ECK01 is manufactured to the highest quality standards, with materials and processes validated for performance in real-world conditions. The product’s compatibility with nVent’s ecosystem of enclosures and accessories simplifies system design and procurement, allowing engineers and technicians to focus on core project requirements. Whether deployed in manufacturing plants, data centers, renewable energy installations, or infrastructure projects, the ECK01 delivers consistent, high-integrity grounding performance. For professionals seeking a dependable, code-compliant earthing solution, the nVent HOFFMAN ECK01 Copper Earthing Angle 30x5 is a proven choice that combines technical excellence with operational reliability.
  • Description: Copper bracket to support the fixation of ECB-bars. The bracket is fixated directly to the frame.
  • Material: Copper.
  • Delivery: 2 pcs. of brackets with fixation material.
  • Optimized 30x5 mm dimensions for standard grounding applications
  • Designed and tested for integration with nVent HOFFMAN systems

Specifications

Connection Type
Bolted Connections
Depth
40 mm
Depth
1.57 in
Finish
Mill
Height
44 IN
Height
2.36 in
Material
Copper
Mounting Type
Bracket Mounting
Product Family
IEC General Accessories
Series
nVent HOFFMAN
Size
30x5 mm
Type
Earthing
Width
55 mm
Width
2.17 in
Works With
IEC
Package Dimensions (L x W x H)
2 IN x 2 IN x 2 IN
Package Dimensions (L x W x H)
5.08 cm x 5.08 cm x 5.08 cm
Package Weight (Imperial)
1.540 L
Package Weight (Metric)
0.699 kg
Earthing copper angle 40x10, Fixation for 30x10/40x10 copper bar

ECK02

Earthing copper angle 40x10, Fixation for 30x10/40x10 copper bar
Earthing copper flat 40x10, Fixation for copper bar

ECK03

Earthing copper flat 40x10, Fixation for copper bar

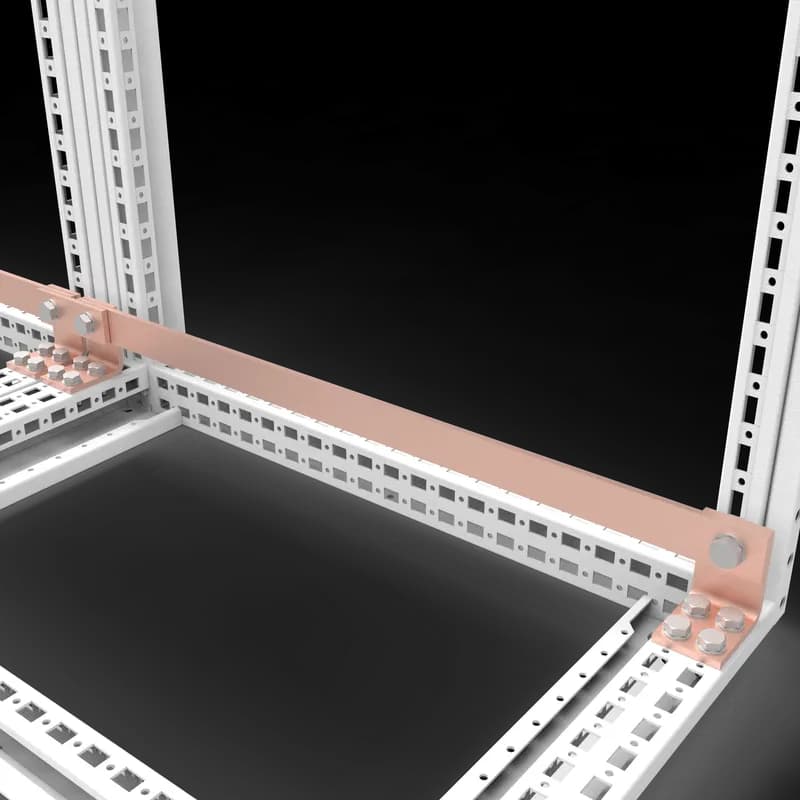

Copper bars for earthing, 80x10x800mm

ECB088010

Copper bars for earthing, 80x10x800mm
Lifting Eyes Wall Mounted Enclosures, AL, 59x54x40mm, Zinc Plated, Mild Steel

AL9301

Lifting Eyes Wall Mounted Enclosures, AL, 59x54x40mm, Zinc Plated, Mild Steel

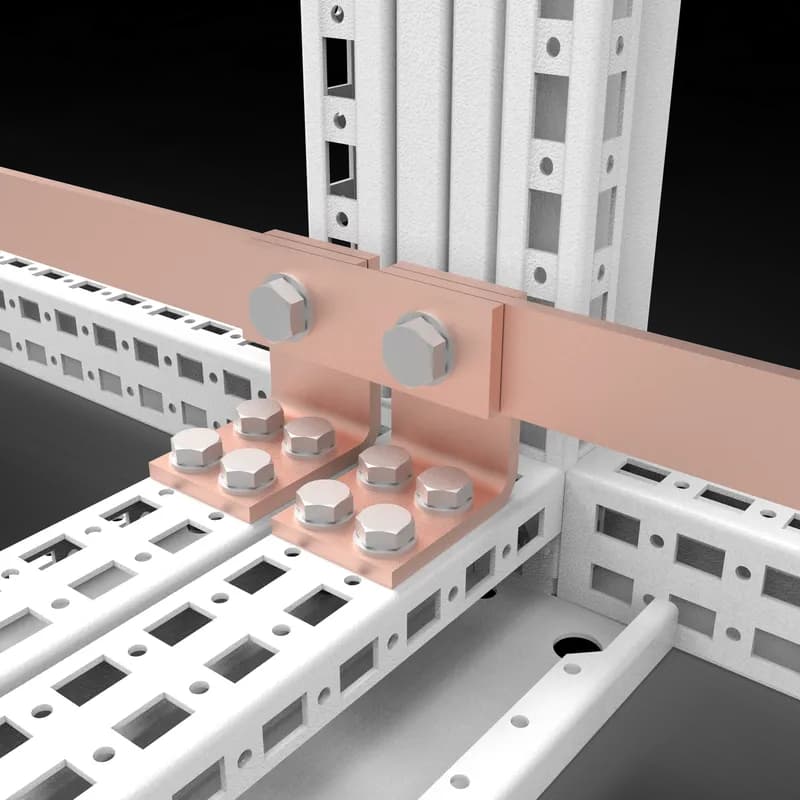

Earthing baying bracket 40x10, Baying for joining copper bars

EBB4010

Earthing baying bracket 40x10, Baying for joining copper bars
Earthing baying bracket 30x10, Baying for joining copper bars

EBB3010

Earthing baying bracket 30x10, Baying for joining copper bars
Earthing baying bracket 30x05, Baying for joining copper bars

EBB3005

Earthing baying bracket 30x05, Baying for joining copper bars
Keys, LSK, 81x50x15mm, Zinc Plated, Mild Steel, Triangle 7mm Lock

LSK526

Keys, LSK, 81x50x15mm, Zinc Plated, Mild Steel, Triangle 7mm Lock
Keys, LSK, 81x50x15mm, Zinc Plated, Mild Steel, Square 8mm Lock

LSK524

Keys, LSK, 81x50x15mm, Zinc Plated, Mild Steel, Square 8mm Lock
Keys, LSK, 81x50x15mm, Zinc Plated, Mild Steel, Square 7mm Lock

LSK523

Keys, LSK, 81x50x15mm, Zinc Plated, Mild Steel, Square 7mm Lock
Keys, LSK, 82x50x16mm, Zinc Plated, Mild Steel, Triangle 3mm Lock

LSK527

Keys, LSK, 82x50x16mm, Zinc Plated, Mild Steel, Triangle 3mm Lock
Earthing baying bracket 80x10, Baying for joining copper bars

EBB8010

Earthing baying bracket 80x10, Baying for joining copper bars
