nVent EA9110 - Dry Contact Cable
nVent

EA9110

UPC: 783510574710

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent EA9110 Dry Contact Cable is a critical component for enhancing the monitoring and control capabilities of your nVent SCHROFF RackPower Power Distribution Units (PDUs). Designed for seamless integration, this cable facilitates the connection of various I/O sensors, such as smoke detectors, to your PDU, enabling real-time status updates and automated responses within your data center or industrial environment. By leveraging dry contact signaling, the EA9110 ensures reliable and robust communication for essential safety and operational alerts. This specialized cable is engineered to meet the demanding requirements of modern infrastructure management. Its primary function is to translate the open or closed state of a dry contact sensor into a signal that your nVent RackPower PDU can interpret. This allows for immediate notification of critical events, such as the detection of smoke, which can trigger pre-programmed actions like shutting down specific equipment or activating ventilation systems, thereby mitigating potential damage and downtime. The simplicity of dry contact technology makes it a dependable choice for mission-critical applications where accuracy and reliability are paramount. The nVent EA9110 is an indispensable accessory for any facility utilizing nVent SCHROFF RackPower PDUs and requiring advanced environmental monitoring. Its applications extend across various sectors, including: * **Data Centers:** Essential for fire detection and early warning systems, ensuring the safety of sensitive IT equipment. * **Telecommunications Facilities:** Crucial for monitoring environmental conditions and security alerts. * **Industrial Automation:** Can be used to integrate external alarm systems or status indicators into control systems. * **Critical Infrastructure:** Provides a reliable method for monitoring the status of remote or sensitive equipment. When selecting a dry contact cable, professionals prioritize durability, signal integrity, and compatibility with their existing infrastructure. The nVent EA9110, manufactured by nVent, a trusted leader in electrical infrastructure solutions, is built to these standards. nVent's commitment to quality engineering ensures that this cable will perform reliably under continuous operation. The EA9110 is designed for straightforward installation, minimizing setup time and complexity. Its robust construction is intended to withstand the rigors of an industrial or data center environment, providing long-term operational value. Investing in the nVent EA9110 means investing in enhanced operational awareness and proactive risk management for your valuable assets.
  • Facilitates connection of I/O sensors (e.g., smoke detectors) to nVent SCHROFF RackPower PDUs.
  • Enables real-time monitoring and automated responses to critical environmental events.
  • Utilizes reliable dry contact signaling for robust communication.
  • Designed for seamless integration with nVent RackPower PDU systems.
  • Manufactured by nVent, a trusted leader in electrical infrastructure solutions.

Specifications

Application
Telecom and Data Protection; Datacom and Telecom Equipment; Networking, Storage and Data Center
Application
Datacom and Low Voltage;Datacom and Telecom Equipment;Networking, Storage and Data Center;Power Distribution;Telecom and Data Protection
Height
44 IN
Height
10.24 in
Package Quantity
1
Plug Type
RJ45
Product Family
Enlogic
Product Type
Sensor
Removable Input Cable
No
Type
Dry Contact
Type
Sensors
Works With
RackPower
Package Dimensions (L x W x H)
8 IN x 8 IN x 2 IN
Package Dimensions (L x W x H)
20.32 cm x 20.32 cm x 5.08 cm
Package Weight (Imperial)
1.000 L
Package Weight (Metric)
0.454 kg
Cable Harness for eHandle

EA9530

Cable Harness for eHandle
Sensor for eHandle, Door, 1xT

EA9550

Sensor for eHandle, Door, 1xT
Sensor for eHandle, Door, 3xT

EA9551

Sensor for eHandle, Door, 3xT
Sensor Input Hub

EA9106

Sensor Input Hub

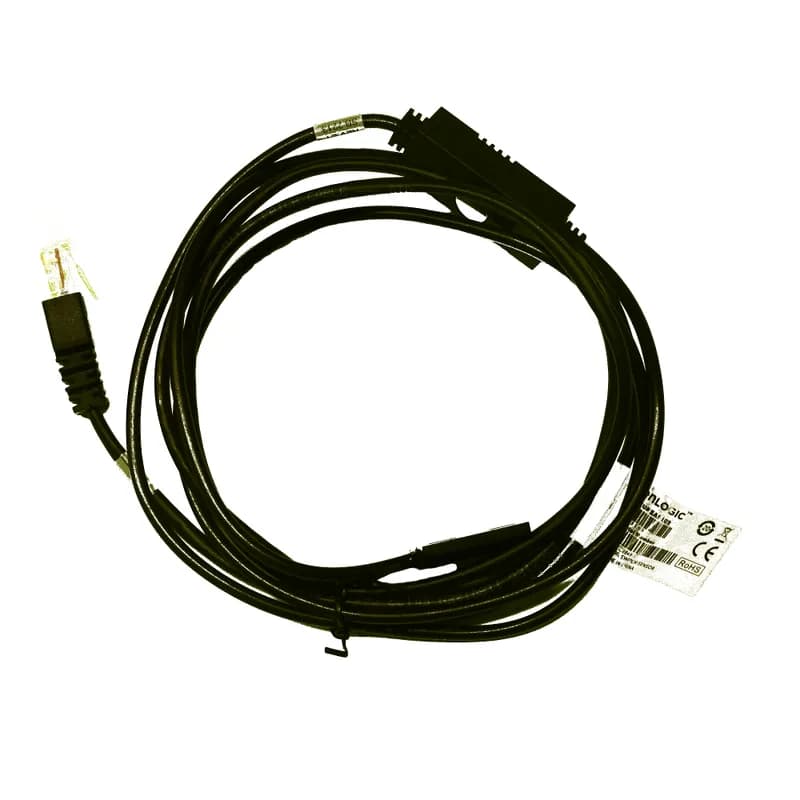

Door Switch Sensor

EA9109

Door Switch Sensor

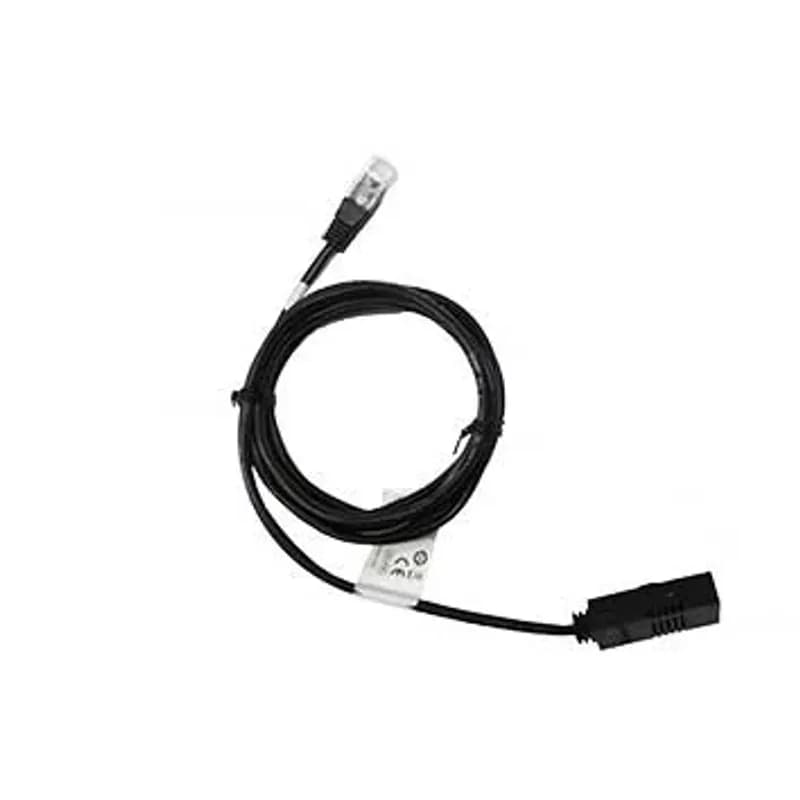

Single Temperature Sensor

EA9102

Single Temperature Sensor
Single Temperature and Humidity Sensor

EA9103

Single Temperature and Humidity Sensor

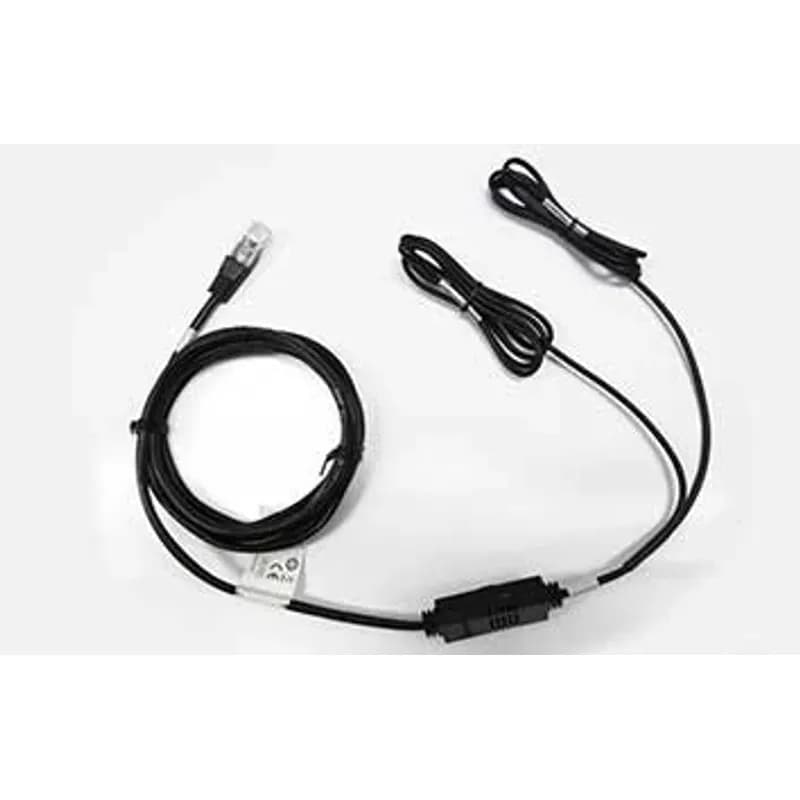

3x Temperature and 1x Humidity Sensor

EA9105

3x Temperature and 1x Humidity Sensor
Rope Leak Detection Sensor

EA9112

Rope Leak Detection Sensor

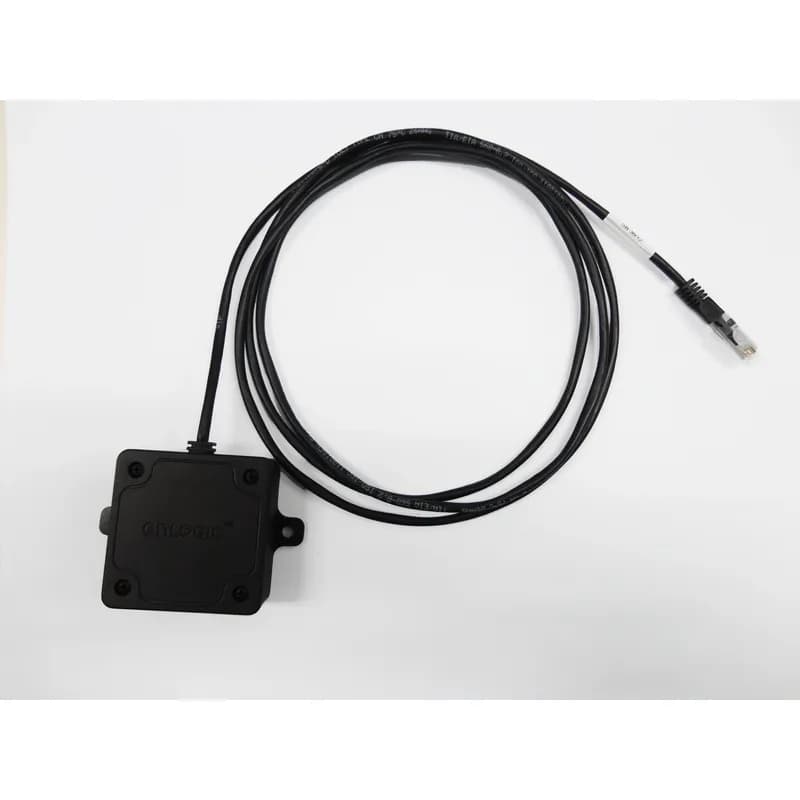

Spot Leak Detection Sensor

EA9111

Spot Leak Detection Sensor
eHandle RFID and Keypad

EA9500

eHandle RFID and Keypad
eHandle RFID

EA9502

eHandle RFID

How to Install the Enlogic Dry Contact Cable (EA9110)

This guide provides step-by-step instructions for installing and configuring the Enlogic Dry Contact Cable to monitor various conditions in your datacenter.

Estimated time: 30m

Tools needed:

Screwdriver, Wire strippers, Multimeter

Supplies needed:

Mounting screws, Cable ties, Adhesive backed mounts, RJ45 Quick Disconnect Coupler

  1. Attach the dry contact cable

    Connect the open wire leads of the dry contact cable to the designated dry contact sensor, following the sensor's specific installation instructions.

  2. Connect to the PDU

    Plug the RJ-45 jack of the Enlogic Dry Contact Cable into a sensor port on the Enlogic PDU, Inline Energy Meter, or Sensor Hub (model EA9106).

  3. Configure monitoring settings

    Access the Enlogic Web UI to set up the specific conditions you wish to monitor and configure alarms for the connected sensor.
