nVent EA9105 - 3x Temperature and 1x Humidity Sensor

nVent EA9105 3x Temperature and 1x Humidity Sensor

UPC: 783510574673


Documents & Media
Installation InstructionsSpecification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent EA9105 is a probe sensor designed for environmental monitoring within data center racks. It features three temperature sensors and one humidity sensor, intended for integration with nVent SCHROFF RackPower PDU units. This device provides real-time data on ambient conditions, crucial for maintaining optimal operating temperatures and humidity levels to protect sensitive IT equipment. The multi-point temperature sensing helps identify localized hot spots, while the humidity sensor aids in preventing electrostatic discharge and condensation. Engineered for reliability and ease of deployment, the EA9105 supports proactive thermal load management and cooling efficiency optimization. SKU: EA9105. UNSPSC: 39121031. Country of Origin: US.
  • 3x Temperature and 1x Humidity Sensor
  • With 2 Meter cable and integrated magnet for easy mounting
  • For RackPower RP1xxx, RP2xxx, RP6xxx Series PDU's
  • Hot pluggable for easy integration
  • Temperature Measuring Range 0 to 65 °C
  • Temperature Measuring Accuracy +- 2 %
  • Humidity Measuring Range 10-90% RH, Non-Condensing
  • Humidity Measuring Accuracy +- 5 %
  • Second and Third Temperature Sensor with 950 mm cable

Specifications

Application
Datacom and Telecom Equipment; Networking, Storage and Data Center; Telecom and Data Protection
Application
Datacom and Low Voltage;Datacom and Telecom Equipment;Networking, Storage and Data Center;Power Distribution;Telecom and Data Protection
Height
44 IN
Height
10.63 in
Package Quantity
1
Plug Type
RJ45
Product Family
Enlogic
Product Type
Sensor
Removable Input Cable
No
Type
Temperature and Humidity
Type
Sensors
Works With
RackPower
Package Dimensions (L x W x H)
8 IN x 8 IN x 2 IN
Package Dimensions (L x W x H)
20.32 cm x 20.32 cm x 5.08 cm
Package Weight (Imperial)
1.000 L
Package Weight (Metric)
0.454 kg
Sensor Input Hub

EA9106

Sensor Input Hub

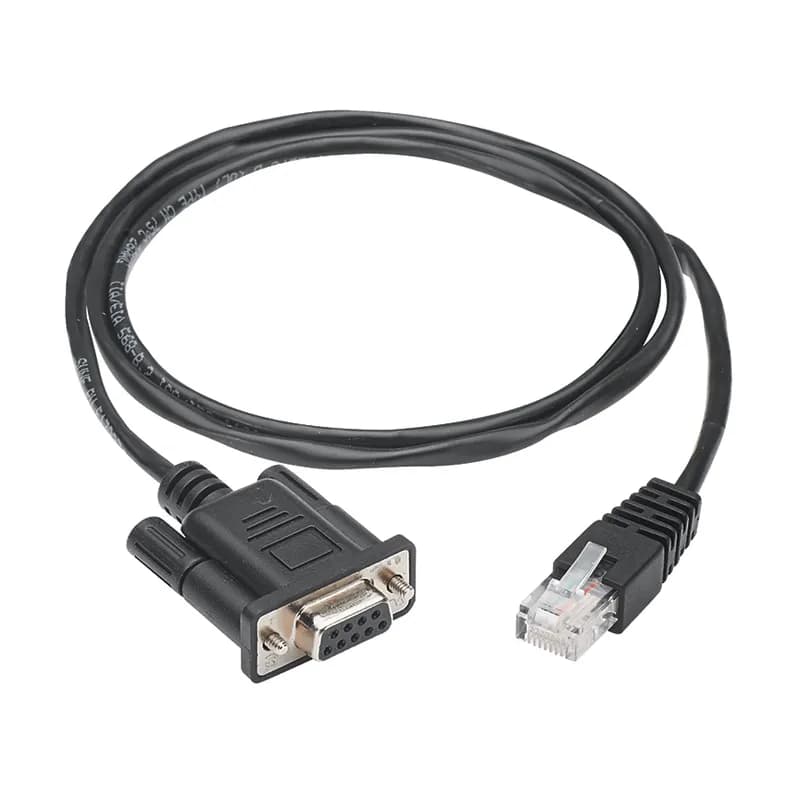

The Serial Communicatoin Cable (RJ45-DB9) is used to establish a serial connection between a computer and the Panduit G5 iPDU. The cable measures 39.4 inches (1m).

MA001

The Serial Communicatoin Cable (RJ45-DB9) is used to establish a serial connection between a computer and the Panduit G5 iPDU. The cable measures 39.4 inches (1m).
WLock Cord C13/C14, 1.2 m, Black, 125 pcs

EP1314048X125

WLock Cord C13/C14, 1.2 m, Black, 125 pcs
eHandle RFID and Keypad

EA9500

eHandle RFID and Keypad
Sensor for eHandle, Door, 1xT

EA9550

Sensor for eHandle, Door, 1xT
WLock Cord C19/C20, 1.8 m, Black, 50 pcs

EP1920072X50

WLock Cord C19/C20, 1.8 m, Black, 50 pcs
WLock Cord C19/C20, 1.2 m, Black, 75 pcs

EP1920048X75

WLock Cord C19/C20, 1.2 m, Black, 75 pcs
WLock Cord C13/C14, 1.8 m, Black, 100 pcs

EP1314072X100

WLock Cord C13/C14, 1.8 m, Black, 100 pcs

Frequently Asked Questions

What is the temperature measuring range and accuracy?

The temperature measuring range is 0 to 65 °C with an accuracy of +- 2 %.

What is the humidity measuring range and accuracy?

The humidity measuring range is 10-90% RH, Non-Condensing, with an accuracy of +- 5 %.

What type of sensor is the EA9105?

The EA9105 is a sensor with 3x Temperature and 1x Humidity probes.

What is the cable length for the temperature sensors?

The second and third temperature sensors come with a 950 mm cable.

Does the EA9105 have a hot-pluggable feature?

Yes, the EA9105 is hot pluggable for easy integration.

What is the plug type for the EA9105 sensor?

The EA9105 sensor uses an RJ45 plug type.

What product family does the EA9105 belong to?

The EA9105 belongs to the Enlogic product family.

What is the height of the EA9105 sensor?

The height of the EA9105 sensor is 10.63 inches.

What is the package quantity for the EA9105?

The package quantity for the EA9105 is 1.

Does the EA9105 have a removable input cable?

No, the EA9105 does not have a removable input cable.

How to Install the EA9105 Temperature & Humidity Sensor

This guide provides step-by-step instructions for installing the EA9105 Temperature & Humidity Sensor, ensuring accurate environmental monitoring.

Estimated time: 30m

Tools needed:

Screwdriver, Wire strippers

Supplies needed:

Cable ties (6 count), Standard Ethernet Extension Cable (1.8m), RJ45 Quick Disconnect Coupler

  1. Secure the sensor box

    Thread a cable tie through the recessed channel in the sensor box and through the perforated rack enclosure door to secure the sensor box in place.

  2. Attach the RJ45 cable

    Use the remaining cable ties to secure the RJ45 cable along the desired path to the PDU, ensuring it is neatly organized.

  3. Install additional temperature probes

    For the EA9105 model, secure the two additional temperature probes near the top and bottom of the perforated rack enclosure door using cable ties.

  4. Connect the sensor cable

    Plug the sensor cable or the connected Ethernet cable into the Sensor 1 or Sensor 2 port on the PDU or Inline Energy Meter. Wait 1-3 minutes for the PDU to recognize the sensor.
