Overview
- 14-gauge steel construction for durability

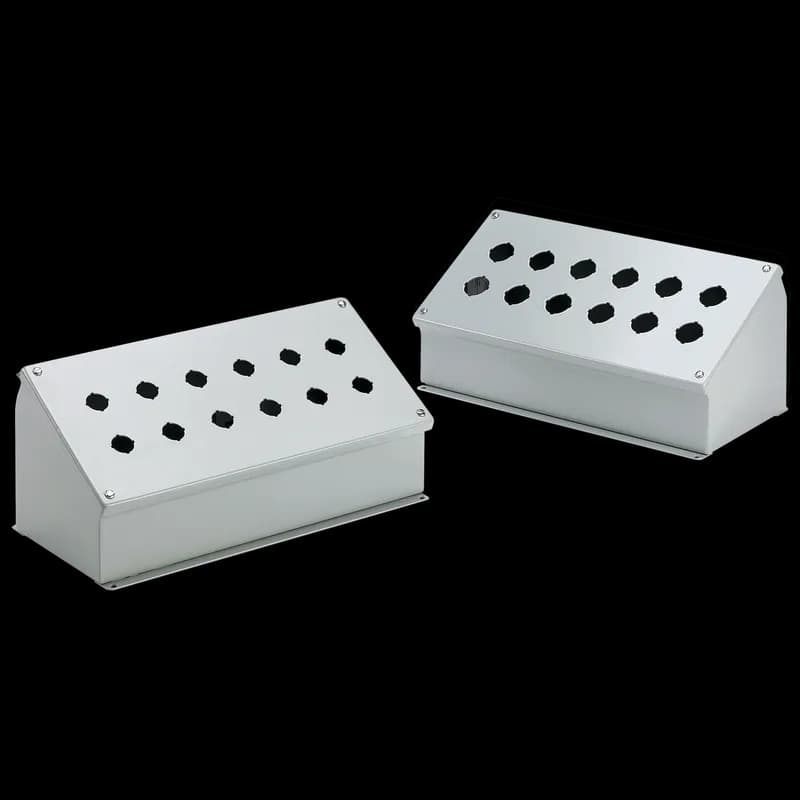

- Sloped-front design for improved ergonomics and visibility
- NEMA Type 12 and IEC 60529 IP65 rated for dust and liquid protection
- Accommodates 22.5mm pushbuttons and switches with factory-stamped holes
- ANSI 61 gray polyester powder paint finish
- Factory stamped 4-way pushbutton holes
- Enclosures 7.25 x 6.25 x 6.75 in. (184 x 159 x 171 mm) and larger have internal detachable hinge to hold cover open during wiring, yet permit immediate removal
- External welded-on mounting brackets for easy installation
- 30.5-mm or 22.5-mm size holes
- 30.5-mm or 22.5-mm size holes
Specifications
Application | Controls and Drives |
Color | Gray |
Color Code | ANSI 61 |
Depth | 7.88 |
Depth | 200 |
Depth | 13 IN |
Finish | Powder Coated |
Height | 44.00 IN |
Height | 9.5 |
Height | 241 |
Hole Quantity | 9 |
Hole Size | 14.3-14.3 |
Hole Size | 0.88-0.88 in |
Hole Size | 22.5 mm mm |
IP Rating | IP65 |
Material | Mild Steel |
Material | Mild Steel;Steel |
Modification Services | Yes |
Mounting | 9.25 x 7.62 in |
Mounting | Wall Mounting Brackets Available |
NEMA Rating | 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Number Of Holes | 9 |
Overall Dimensions | 114 x 88 mm |
Overall Dimensions | 9.73 x 8.72 in |
Product Family | PushButton |
Protection Rating | NEMA Type 12 |
Size | 9PB x 22.5mm |
Thickness | 14 ga |
Thickness | 1.9 mm |
Thickness | 51.40mm (2.024") |
Type | Mild Steel Terminal and Junction Boxes |
Type | Mild Steel Industrial Terminal and Junction Boxes |
Type Number | Type 13 |
Weight | 8.7 lb |
Width | 8.5 in |
Width | 23 IN |
Package Dimensions (L x W x H) | 9 IN x 8.7 IN x 10.5 IN |
Package Dimensions (L x W x H) | 22.86 cm x 22.098 cm x 26.67 cm |
Package Weight (Imperial) | 8.700 L |
Package Weight (Metric) | 3.946 kg |
