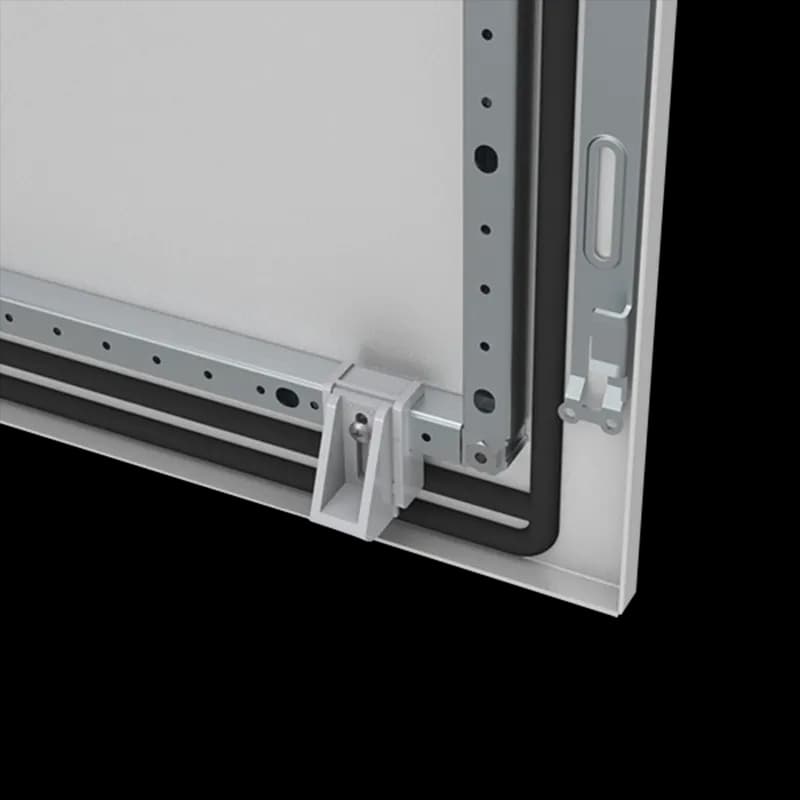

nVent DPSL01 - Door Plastic Support, DPSL, 57x35x43mm, Plastic
nVent

DPSL01

UPC: 783510472078

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent DPSL01 Door Plastic Support (SKU: DPSL01) is engineered to ensure optimal door alignment and stability for heavy-duty enclosures, especially those supporting loads of 30 kg or more. This thermoplastic device is crucial for maintaining the integrity of your enclosure's door, preventing misalignment caused by uneven flooring or excessive weight from mounted accessories like cooling units or transformers. Mounted directly to the door frame at both the top and bottom, the DPSL01 facilitates easier door closing and positioning, even under significant load. Its robust plastic construction ensures durability in industrial settings. The DPSL01 is supplied as a pack of two, complete with all necessary mounting accessories, making installation straightforward. This support system is vital for maintaining the specified IP rating of your enclosure, safeguarding internal components from environmental ingress. Dimensions are 57x35x43mm. Manufactured by nVent, this accessory is designed for floor-standing enclosure applications.
  • Supports heavy enclosure doors with loads of 30 kg or more.
  • Ensures proper door alignment and easier closing/positioning.
  • Mounted at the top and bottom of the door frame.
  • Plastic construction for durability in industrial environments.
  • Includes mounting accessories; supplied as a pack of 2.

Specifications

Application
Factory Automation and Process Control; Controls and Drives; Oil and Gas
Application
Factory Automation and Process Control; Controls and Drives
Color
Light Gray
Consist of
Door Plastic Support; Mounting Components and Instruction Manual
Construction
10 gauge
Depth
1.68 in
Depth
43 mm
Enclosure Material
Mild Steel
Finish
Smooth Matte
Height
57 mm
Height
2.22 in
Ip Rating
IP
Material
Thermoplastic
Material
Plastic
Mounting Type
Top and bottom of door frame
Package Quantity
2
Product Family
Free-Standing
Series
DPSL
Size
2.22 x 1.38 x 1.68 inch
Size
57x35x43mm
Thickness
10 ga
Thickness
4 mm
Type
Doors
Type
IEC Enclosure Accessories
Weight
0.5 kg
Weight
1 lb
Width
35 mm
Width
1.38 in
Works With
IEC
Package Dimensions (L x W x H)
6 IN x 4 IN x 4 IN
Package Dimensions (L x W x H)
15.24 cm x 10.16 cm x 10.16 cm
Package Weight (Imperial)
1.000 L
Package Weight (Metric)
0.454 kg
