Contact for Pricing
Overview

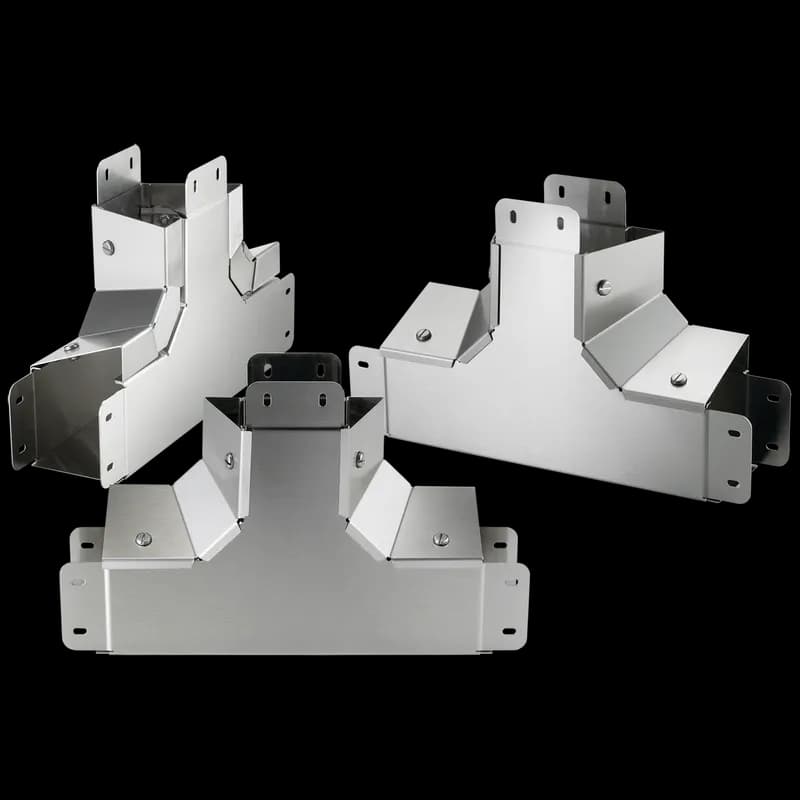

- Clean Tray 90-Degree Tees are used for right-angle installations where two 90-degree transitions are required
- The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
- Material: SS304 Brushed Stainless Steel for superior corrosion resistance
- Designed for 90-degree transitions and frequent washdown applications
- Provides secure enclosure and protection for rated cabling
Specifications
Application | Hygienic Environments; Corrosive Environments; Power Distribution |
Color | Unpainted |
Color | Brushed |
Finish | Brushed #3 |
Height | 4 IN |
Height | 102 mm |
Material | Stainless Steel |
Material | SS304 Stainless Steel |
Modification Services | Yes |
NEMA Rating | 1 Indoor, electrical protection |
Product Family | CleanTray |
Protection Rating | NEMA Type 1 |
Series | CleanTray |
Size | 4.00 x 6.00 inches (102 x 152 mm) |
Thickness | 1.27 mm |
Thickness | 18 ga |
Type | Industrial Lay-in Wireway |
Type | Tee |
Weight | 7.4 lb |
Width | 152 mm |
Width | 6 IN |
Wireway | Clean Tray Stainless Steel Cable Tray |
Package Dimensions (L x W x H) | 20.3 IN x 14.2 IN x 7.2 IN |
Package Dimensions (L x W x H) | 51.562 cm x 36.068 cm x 18.288 cm |
Package Weight (Imperial) | 7.400 L |
Package Weight (Metric) | 3.357 kg |
