Overview

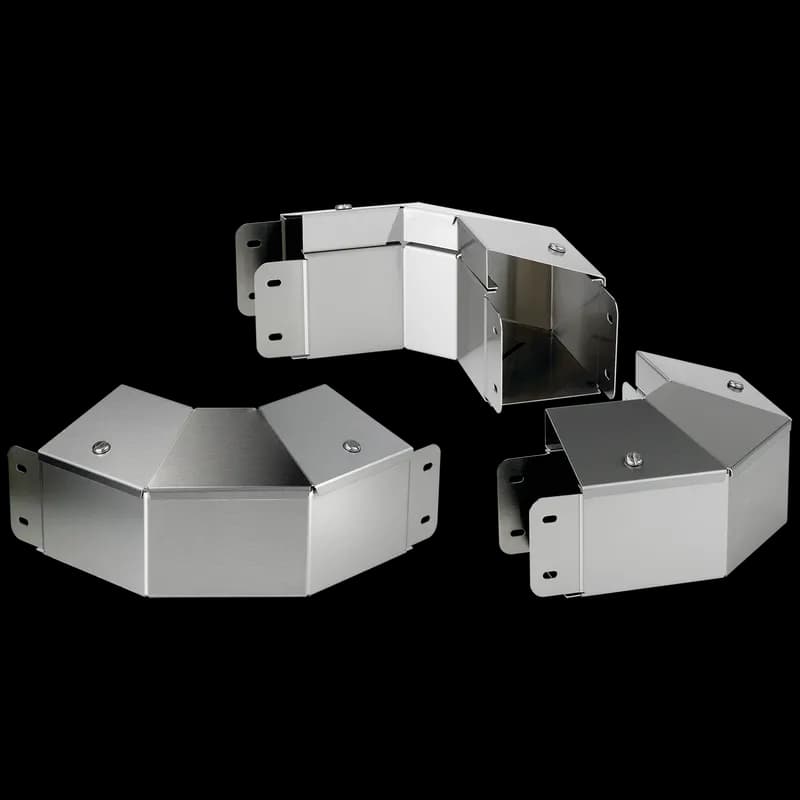

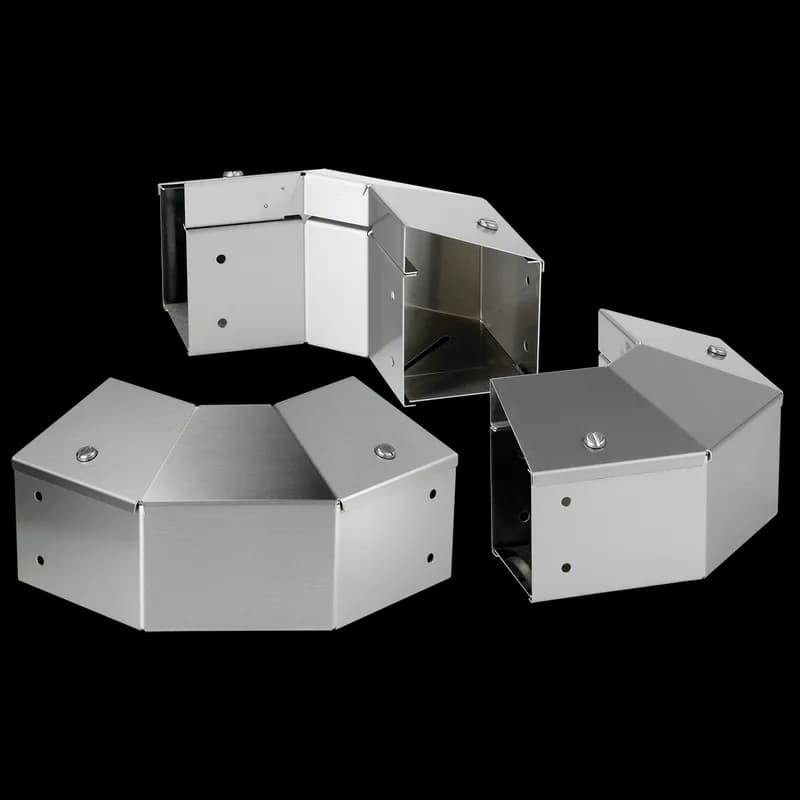

- Clean Tray 90-Degree Elbows are used for right-angle installations
- The Clean Tray stainless steel system is designed to protect rated cabling in applications that require frequent washdown
- Perforated design enhances ventilation and cable protection in demanding environments.
- Tabless design offers a clean aesthetic and simplified installation.
- Ideal for washdown applications in food processing, pharmaceutical, and chemical industries.
Specifications
Application | Power Distribution; Corrosive Environments; Hygienic Environments |
Color | Unpainted |
Finish | Brushed #3 |
Height | 4 IN |
Height | 102 mm |
Material | Stainless Steel |
Modification Services | No |
Product Family | CleanTray |
Thickness | 18 ga |
Thickness | 1.27 mm |
Type | Elbow |
Type | Industrial Lay-in Wireway |
Weight | 5.5 lb |
Width | 6 IN |
Width | 152 mm |
Wireway | Clean Tray Stainless Steel Cable Tray |
Package Dimensions (L x W x H) | 11.75 IN x 11.75 IN x 5 IN |
Package Dimensions (L x W x H) | 29.845 cm x 29.845 cm x 12.7 cm |
Package Weight (Imperial) | 5.500 L |
Package Weight (Metric) | 2.495 kg |
How to Install the CT46EIC45SS Controller
This guide provides step-by-step instructions for installing and configuring the CT46EIC45SS controller, ensuring proper wiring and setup for optimal performance.
Estimated time: 1h
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors
- Mount the controller
Secure the CT46EIC45SS controller to the designated mounting surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the power supply
Using wire connectors, connect the power supply wires to the controller's power terminals. Ensure the connections are tight and insulated to prevent short circuits.
- Verify connections
Use a multimeter to check the voltage at the power terminals of the controller. Ensure the voltage matches the specifications outlined in the user manual.
- Configure initial settings
Power on the controller and access the configuration menu. Set the desired parameters according to your application requirements.
- Calibrate the controller
Follow the calibration procedure in the user manual to ensure the controller operates accurately. Adjust settings as necessary based on the calibration results.
