nVent CSPB2024 - Concept Swing-Out Panel, fits 20.00x24.00, White, Steel
nVent

CSPB2024

UPC: 783510167189

Documents & Media
Installation Instructions

Contact for Pricing

Overview

The nVent CSPB2024 Concept Swing-Out Panel (SKU: CSPB2024) offers unparalleled access to internal enclosure equipment, enhancing maintenance efficiency and operational uptime. Engineered from durable white steel, this panel is designed to fit 20.00x24.00 inch enclosures, providing a robust solution for industrial environments. Its innovative swing-out design allows the panel to clear the enclosure front up to 94 degrees, granting technicians unobstructed access for servicing, adjustments, or component replacement without the need to remove the entire door or disrupt surrounding equipment. This swing-out panel is a critical component for any control panel or electrical enclosure where frequent access to mounted components is required. Industries such as manufacturing, automation, power distribution, and telecommunications rely on such solutions to maintain complex electrical systems. The nVent CSPB2024 is particularly advantageous in applications where space is at a premium, as it minimizes the footprint required for maintenance compared to traditional swing-out designs that may require more clearance. Key features and benefits of the nVent CSPB2024 include: * **Enhanced Accessibility:** Swings clear of the enclosure front for easy access to internal components. * **Durable Construction:** Made from high-quality white steel for longevity and resistance to industrial conditions. * **Optimized Swing Angle:** Provides a maximum swing of 94 degrees, ensuring ample working space. * **Versatile Mounting Options:** Can be mounted directly to the front flange of the enclosure or on front-to-back adjustable rails for greater flexibility. Adapter CSPBADB and adjustable rails are required for front-to-back adjustment with CSPB panels. * **Secure Latching:** Maintains a consistent distance from the panel surface to the door when latched, accommodating both solid (1.71 in. / 43 mm) and window (1.45 in. / 37 mm) door types. Installation is straightforward, with kits including the panel, brackets, and all necessary hardware for mounting to the front flange. For applications requiring front-to-back adjustability, the nVent CSPB2024 integrates seamlessly with compatible adapter kits and adjustable rail systems. nVent is a trusted manufacturer in the enclosure and electrical protection market, known for delivering reliable and innovative solutions that meet the demanding requirements of industrial settings. The CSPB2024 exemplifies this commitment to quality and functionality, making it an essential addition to any well-designed electrical enclosure system.
  • CSPB panels, maximum swing is 94 degrees
  • CSP panels, maximum panel swing is 106 degrees
  • Distance from panel surface to door when in the latched position is 1.71 in. (43 mm) for solid doors and 1.45 in. (37 mm) for window doors
  • Kits include panel, brackets and hardware to mount to the front flange
  • Compatible with adapter CSPBADB and front-to-back adjustable rails for enhanced mounting flexibility.

Specifications

Application
Controls and Drives; Power Distribution; Arc Flash Safety
Application
Arc Flash Safety;Controls and Drives;Power Distribution
Color
White
Finish
Powder Coated
Fits Enclosure Size
20.00 x 24.00 in
Fits Enclosure Size
24.00 x 20.00 in
Height
17.72 in
Height
44 IN
Material
Mild Steel
Material
Mild Steel;Steel
Material
Steel
Modification Services
Yes
Mounting Type
Swing-out Panel
Panel Size
450 x 553 mm
Panel Size
17.72 x 21.75 in
Product Family
Concept
Size
20.00x24.00
Size
fits 20.00x24.00 in
Thickness
2.66 mm
Thickness
12 ga
Thickness
51.40mm (2.024")
Type
Industrial Panels and Panel Accessories
Weight
13 lb
Width
21.75 in
Width
552 mm
Works With
NEMA
Package Dimensions (L x W x H)
22.25 IN x 18.5 IN x 1.5 IN
Package Dimensions (L x W x H)
56.515 cm x 46.99 cm x 3.81 cm
Package Weight (Imperial)
13.000 L
Package Weight (Metric)
5.897 kg
Concept Swing-Out Panel, fits 36.00x30.00, White, Steel

CSPB3630

Concept Swing-Out Panel, fits 36.00x30.00, White, Steel
Inline Landscape Panel, fits 230x930mm, White, Steel

LP2393

Inline Landscape Panel, fits 230x930mm, White, Steel
Concept Swing-Out Panel, fits 20.00x20.00, White, Steel

CSPB2020

Concept Swing-Out Panel, fits 20.00x20.00, White, Steel

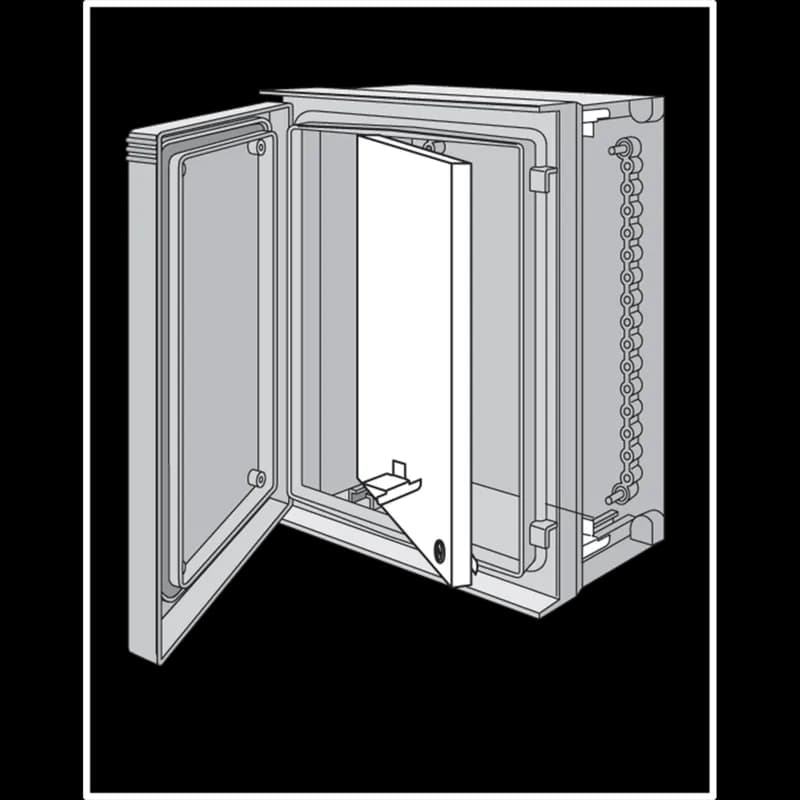

Ultrx Swing-Out Panel, fits 625x612mm, White, Steel
