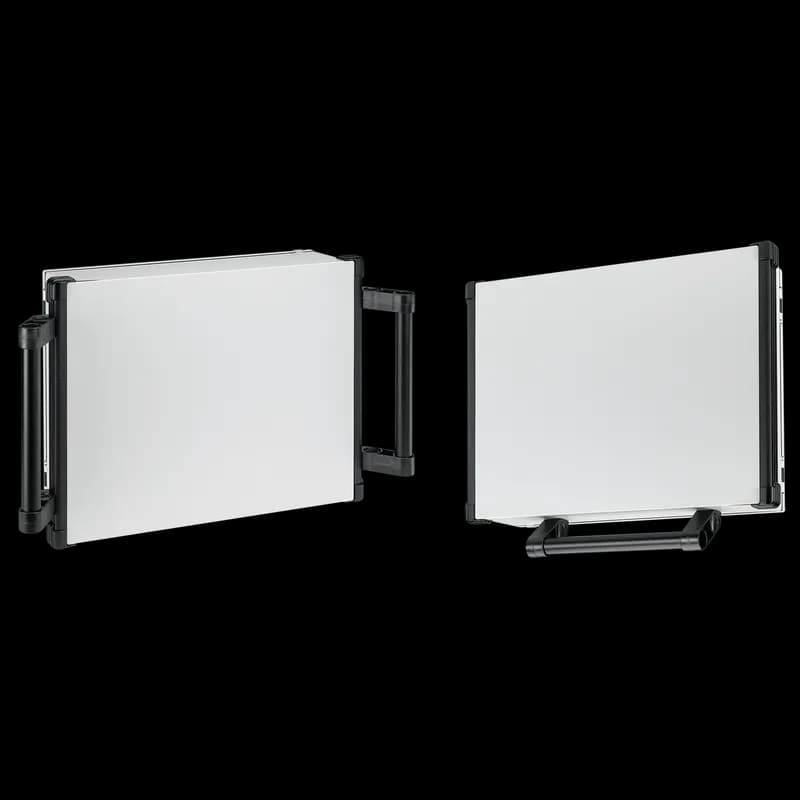

nVent CHDLK Accessory Handle Kit for HMI Enclosure, 13.43x4.06, Black, Aluminum
UPC: 783510152840
Documents & Media
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- Handle is 13.40-in. long and the Aluminum tube can be cut down to fit smaller enclosure sizes
- Tubes are aluminum and plastic ends are plastic
- Kit includes one pair of handles and all mounting hardware
- Aluminum tube can be cut to size for smaller enclosures
- Includes one pair of handles and all mounting hardware
Specifications
Application | Controls and Drives |
Color | Black |
Color | Jet Black |
Color Code | RAL 9005 |
Finish | Powder Coated |
Height | 341 mm |
Height | 13.43 in |
Height | 341 |
Material | Aluminum |
Material | Steel |
Modification Services | Yes |
Mounting Type | Integral Handle Extrusions, Bottom of Enclosure, or Flat Surface |
Mounting Type | Vertical (integral handle extrusions), Horizontal (bottom of enclosure), or flat surface |
Mounting Type | Vertical/Horizontal/Any Flat Surface |
Product Family | Concept |
Series | Concept |
Series | nVent CHDLK |
Series | nVent CONCEPT HMI |
Size | 13.43x4.06 inches |
Size | 13.43x4.06 |
Type | Other Accessories |
Type | HMI Enclosure Systems |
Weight | 1.6 lb |
Width | 103 mm |
Width | 4.06 in |
Width | 103 |
Works With | NEMA |
Package Dimensions (L x W x H) | 18.25 IN x 13.5 IN x 1.5 IN |
Package Dimensions (L x W x H) | 46.355 cm x 34.29 cm x 3.81 cm |
Package Weight (Imperial) | 1.620 L |
Package Weight (Metric) | 0.735 kg |
CP556030T
CONCEPT OI Enc, Turquoise Trim, Bulletin C2 (CONCEPT Operator Interface Enclosures), Size/Dims: 550x600x300mm, Material/Finish: Steel/LtGrayCP405030T
CONCEPT OI Enc, Turquoise Trim, Bulletin C2 (CONCEPT Operator Interface Enclosures), Size/Dims: 400x500x300mm, Material/Finish: Steel/LtGrayCP354530R
CONCEPT OI Enc, Red Trim, Bulletin C2 (CONCEPT Operator Interface Enclosures), Size/Dims: 350x450x300mm, Material/Finish: Steel/LtGrayHow to Install the OI Handle Kit
Step-by-step guide for installing the OI Handle Kit on your enclosure.
Estimated time: 30m
Tools needed:
Screwdriver, Wire strippers
Supplies needed:
Mounting screws, Handle components
- Gather all components
Collect all parts of the OI Handle Kit including screws and handle components to ensure you have everything needed for installation.
- Prepare the mounting area
Clean the area on the enclosure where the handle will be mounted to ensure a secure attachment.
- Attach the handle
Align the handle with the pre-drilled holes on the enclosure and secure it using the provided mounting screws. Ensure the handle is firmly attached and operates smoothly.
