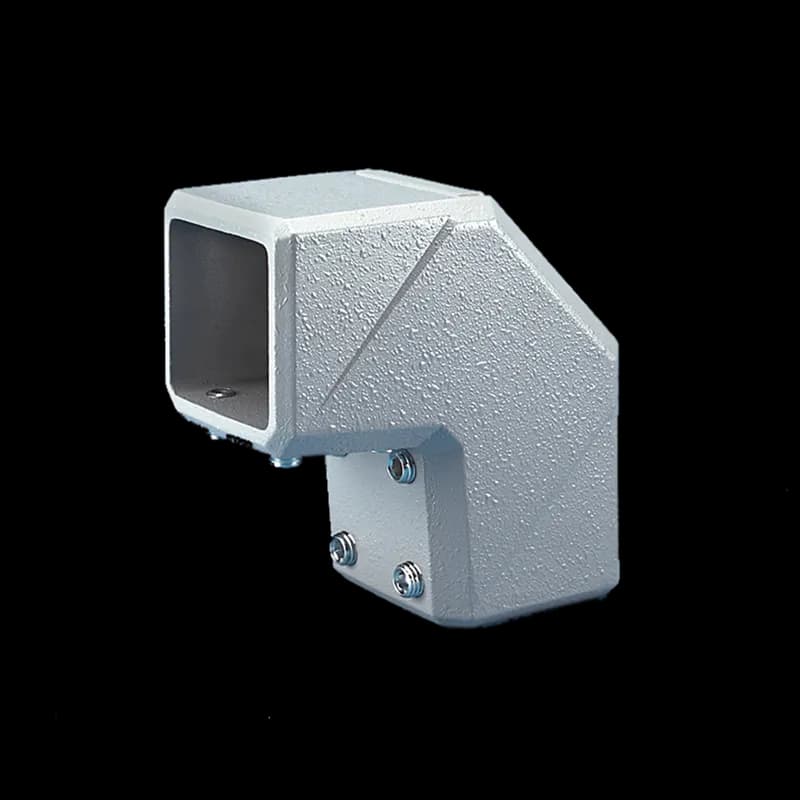

nVent CCS8EL - Elbow, Pendant Arm, Bulletin CS4 (COMPACT® Suspension System - COMPACT Pendant Arm, Series 4), Size/Dims: fits 80x80mm, Material: Aluminum, Finish: Gray
nVent

CCS8EL

UPC: 783510678609

Contact for Pricing

Overview

The nVent CCS8EL Aluminum Pendant Arm is a precision-engineered component designed for the COMPACT Suspension System, Bulletin CS4 (Series 4). Constructed from high-strength aluminum with a durable RAL 7035 light-gray polyester powder paint finish, this pendant arm delivers exceptional load-bearing capacity while maintaining a lightweight profile. The CCS8EL is specifically sized to fit 80x80mm enclosures, ensuring seamless integration with the COMPACT Suspension System for overhead mounting solutions in industrial and commercial environments. Key features include a removable access plate for easy maintenance and wiring access, setscrews and gaskets for secure mounting, and a safety stop mechanism to prevent over-rotation. The pendant arm supports a 300-degree rotation, enabling precise positioning of suspended equipment such as lighting fixtures, ventilation systems, and other overhead components. Its robust aluminum construction provides structural integrity and corrosion resistance, making it ideal for demanding applications. The CCS8EL is part of nVent’s trusted Bulletin CS4 Series, known for reliability and ease of use. It is compatible with wall-mount and horizontal tube applications, offering flexible installation options for engineers and facility managers. The maintenance-free bearing ensures long-term reliability with minimal upkeep, reducing operational costs and downtime. Designed for professionals requiring dependable overhead mounting solutions, the CCS8EL combines durability, versatility, and compliance with industry standards. Trusted by industry leaders worldwide, nVent continues to set the standard for excellence in electrical and mechanical suspension systems.
  • Fits 80x80mm enclosures for seamless integration with COMPACT Suspension System
  • 300-degree rotation with safety stop mechanism for precise equipment positioning
  • High-strength aluminum construction with RAL 7035 light-gray powder paint finish
  • Removable access plate for easy maintenance and wiring access
  • Setscrews, gaskets, and mounting hardware included for secure installation

Specifications

Color
Gray
Material
Aluminum
Mounting Type
Wall-mount, Horizontal tube
Series
Bulletin CS4 (COMPACT Suspension System - Series 4)
Size
80x80mm
Package Dimensions (L x W x H)
7.5 IN x 7.5 IN x 5 IN
Package Dimensions (L x W x H)
19.05 cm x 19.05 cm x 12.7 cm
Package Weight (Imperial)
6.850 L
Package Weight (Metric)
3.107 kg
