Contact for Pricing
Overview

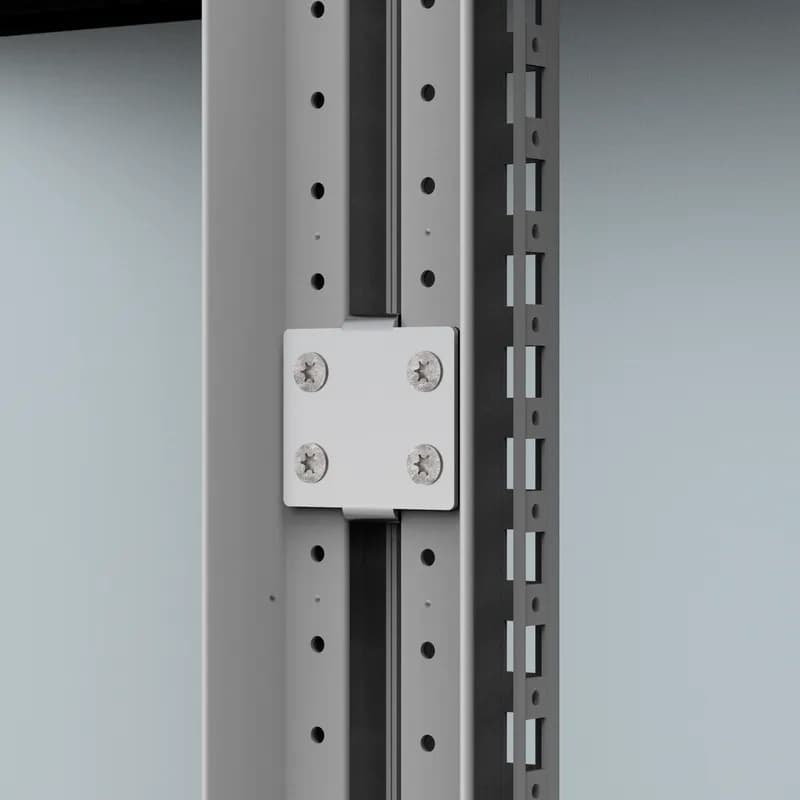

- External baying brackets for floor-standing enclosures
- Features 'auto spacer' function for precise alignment
- Creates a direct earthing connection between enclosure frames
- Constructed from 3 mm zinc-plated mild steel for durability
- Kit includes 6 brackets with mounting accessories
- These brackets should not be used in combination with the small partial doors
Specifications
Application | Factory Automation and Process Control; Controls and Drives |
Application | Factory Automation and Process Control; Controls and Drives; Power Distribution |
Color | Unpainted |
Consist Of | Wall Fixing Brackets; Mounting Components and Instruction Manual |
Construction | 11 gauge |
Depth | 0.79 in |
Depth | 20 mm |
Enclosure Material | Mild Steel |
Finish | Zinc Plated |
Height | 2.24 in |
Height | 57 mm |
Material | Mild Steel |
Material | Zinc-plated mild steel |
Mounting Type | External baying |
Package Quantity | 6 |
Product Family | Free-Standing |
Series | CCE |
Size | 2.24 x 2.24 x 0.79 inch |
Size | 57x57x20mm |
Thickness | 3 mm |
Thickness | 11 ga |
Type | Baying |
Type | IEC Enclosure Accessories |
Width | 2.24 in |
Width | 57 mm |
Works With | IEC |
Package Dimensions (L x W x H) | 7 IN x 2.5 IN x 1 IN |
Package Dimensions (L x W x H) | 17.78 cm x 6.35 cm x 2.54 cm |
Package Weight (Imperial) | 1.100 L |
Package Weight (Metric) | 0.499 kg |
