Contact for Pricing
Call (262) 252-1600 or email [email protected] for pricing and availability.
Overview

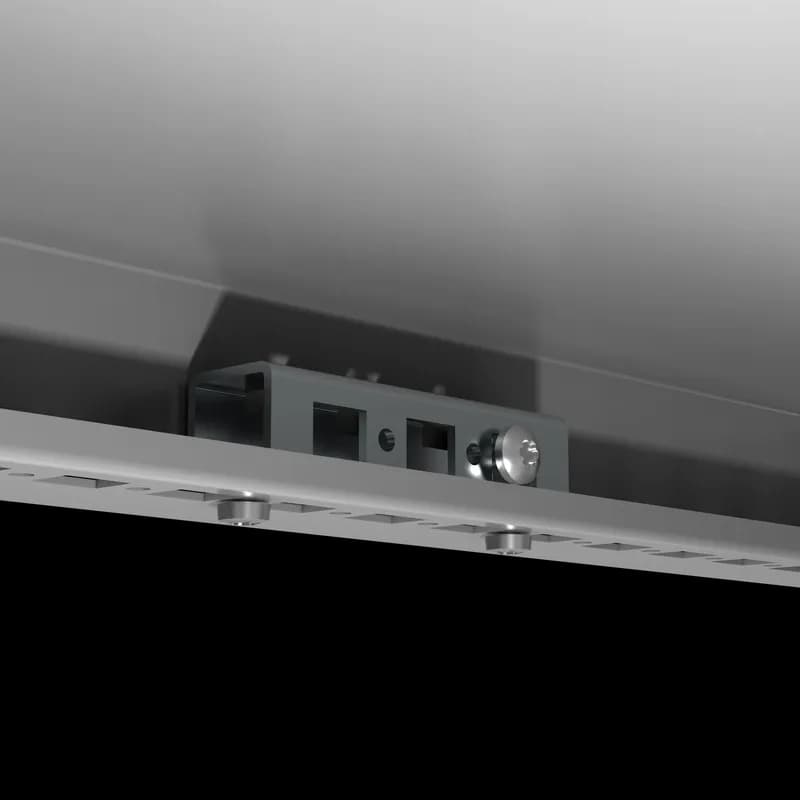

- Description: Profile bracket to extend mounting possibilities on our steel, compact enclosures frame providing an additional mounting surface. The bracket has two round (diameter 4.3 mm) and three square (10x14 mm) holes, alternated on a pitch of 25 mm al
- Material: 2 mm zinc plated steel.
- Pack quantity: 2 pieces with mounting accessories.
- Compatible with standard mounting systems for simplified installation.
- Durable construction suitable for industrial environments.
Specifications
Depth | 0.91 in |
Depth | 23 mm |
Enclosure Material | Mild Steel |
Finish | Plated |
Height | 23 mm |
Height | 0.91 in |
Material | Metal |
Material | Steel |
Mounting Type | Modular mounting |
Mounting Type | DIN rail and panel mounting |
Product Family | Free-Standing |
Series | CAK |
Type | Mounting |
Width | 3.35 IN |
Width | 85 mm |
Works With | IEC |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
Frequently Asked Questions
What material is the CAK02 profile bracket made of?
The CAK02 profile bracket is made of 2 mm zinc plated steel.
How many CAK02 profile brackets are included in a pack?
A pack of the CAK02 profile bracket contains 2 pieces with mounting accessories.
What are the dimensions of the CAK02 profile bracket?
The CAK02 profile bracket has a height of 0.91 inches, a width of 3.35 inches, and a depth of 0.91 inches.
What type of holes are on the CAK02 profile bracket?
The bracket has two round holes (diameter 4.3 mm) and three square holes (10x14 mm).
What is the hole spacing on the CAK02 profile bracket?
The holes on the CAK02 profile bracket are alternated on a pitch of 25 mm.
What is the purpose of the CAK02 profile bracket?
The profile bracket extends mounting possibilities, increasing flexibility for placing various equipment on steel, compact enclosures frames.
What is the finish of the CAK02 profile bracket?
The CAK02 profile bracket has a plated finish.
