nVent

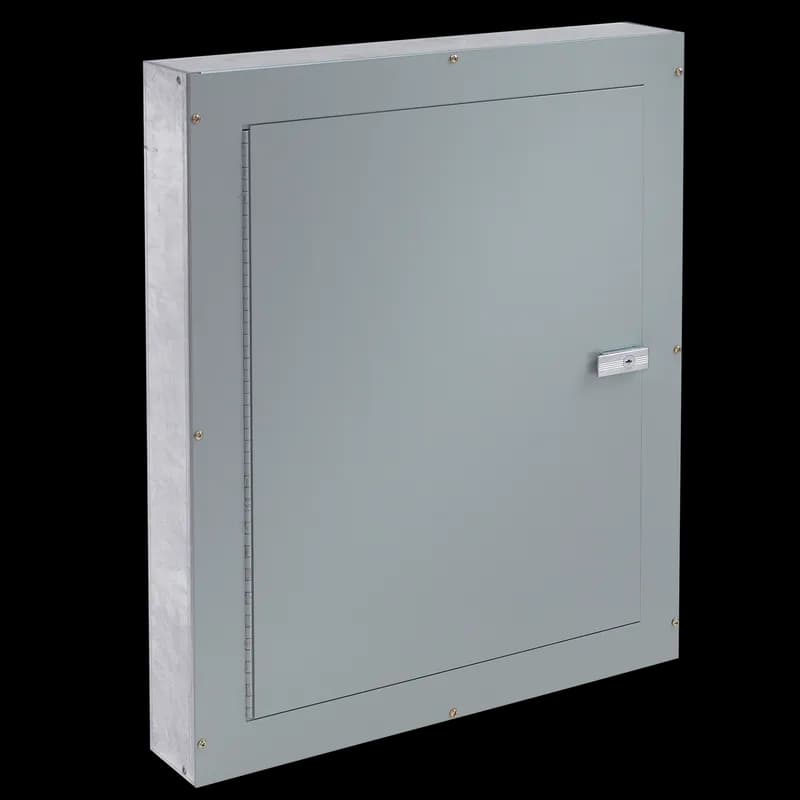

ATC24184S
UPC: 783510427993
Contact for Pricing
Overview
- Type 1 surface-mount telephone cabinet for indoor telecommunications
- Constructed from 16, 14, or 12 gauge galvanized steel with mild steel door
- Measures 24.00 x 18.00 x 4.00 inches (610 x 457 x 102 mm)
- Features continuous hinge, tumbler lock with key, and 3/4in plywood mounting panel
- Meets UL 50, UL 50E, NEMA Type 1, and IEC 60529 IP30 standards
Specifications
Application | Power Distribution |
Body Thickness | 1.52 mm |
Body Thickness | 16 ga |
Color | Gray |
Color Code | ANSI 61 |
Depth | 102 mm |
Depth | 4 |
Depth | 102 |
Door Thickness | 1.9 mm |
Door Thickness | 14 ga |
Finish | Galvanized |
Height | 610 mm |
Height | 24 |
Height | 610 |
IP Rating | IP30 |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
Mount | Surface |
Mounting | Surface |
Mounting Type | Surface-Mount |
NEMA Rating | 1 Indoor, electrical protection |
NEMA Rating | Type 1 |
Nominal Door Size | 14.25 in |
Nominal Door Size | 362 mm |
Panel Size | 533 x 381 mm |
Panel Size | 21.00 x 15.00 in |
Protection Rating | NEMA Type 1 |
Size | 24.00x18.00x4.00 |
Size | 24.00x18.00x4.00 in |
Type | Utility Cabinets |
Type | Utility / Canadian Cabinets and Splitters |
Type Number | Type 1 |
Weight | 30.94 lb |
Width | 457 mm |
Width | 18 |
Width | 457 |
Package Dimensions (L x W x H) | 24.5 IN x 20.75 IN x 7.5 IN |
Package Dimensions (L x W x H) | 62.23 cm x 52.705 cm x 19.05 cm |
Package Weight (Imperial) | 30.940 L |
Package Weight (Metric) | 14.034 kg |
