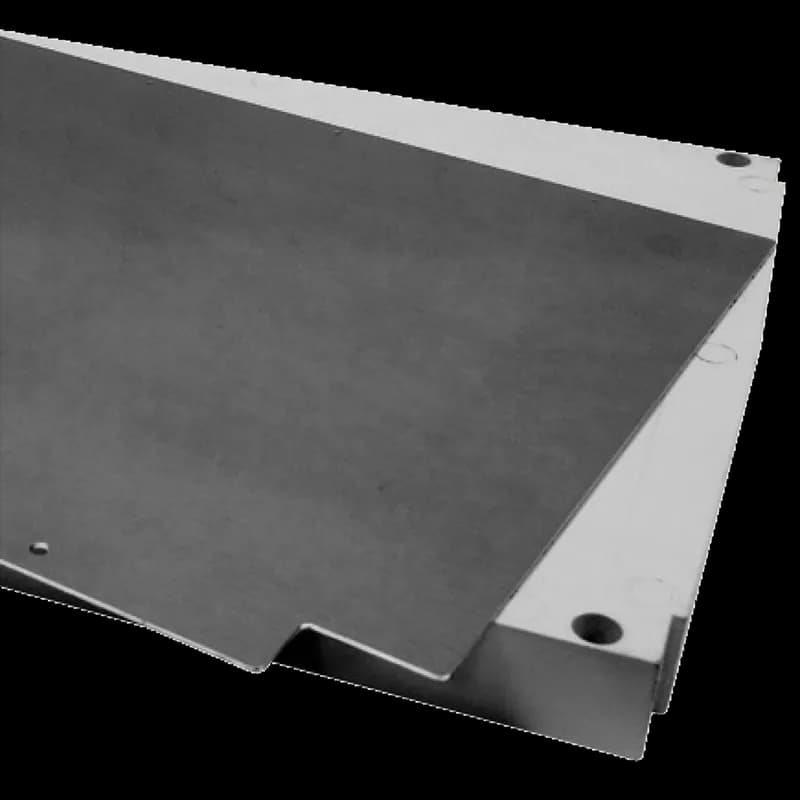

nVent AFP2016N ARIA Front Plate, 18.86x14.25x0.19, Natural Unfinished, Non-Metallic
UPC: 635394037044
Contact for Pricing
Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.
Overview
- For use with ARIA Enclosures
- Convenient way to mount conrols and instruments toward the front of ARIA enclosures
- Front plates available in two different material
- Lightweight at 1.92lb with durable construction for industrial environments
- Enhances ergonomics and accessibility for HMIs and operational controls
Specifications
Application | Controls and Drives;Corrosive Environments |
Application | Corrosive Environments; Controls and Drives |
Color | Unpainted |
Color | Natural Unfinished |
Depth | 5 mm |
Depth | 0.19 in |
Finish | Natural Unfinished |
Height | 18.86 in |
Height | 479 mm |
Material | Non-Metallic |
Material Quality | Non-Metallic |
Series | ARIA |
Size | 18.86x14.25x0.19 |
Thickness | 51.40mm (2.024") |
Thickness | 0.188 in |
Thickness | 5 mm |
Type | Industrial Panels and Panel Accessories |
Weight | 1.92 lb |
Width | 14.25 in |
Width | 362 mm |
Works With | NEMA / IEC |
