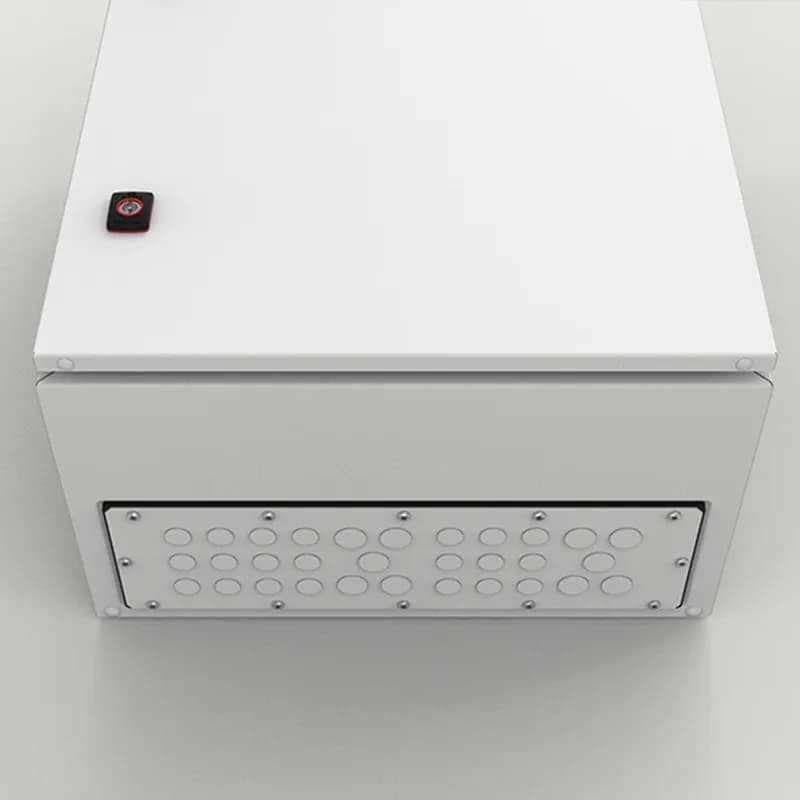

nVent AFK12R5 - Gland plate with knockouts, 242x128x3mm, Light Gray, Mild Steel, M16,25,32
nVent

AFK12R5

UPC: 783510119164

Documents & Media
Installation Instructions

Contact for Pricing

Overview

Enhance your industrial enclosure's cable management with the nVent AFK12R5 Gland Plate, a robust and versatile solution designed for efficient cable entry and protection. Manufactured by nVent, a trusted leader in electrical enclosure solutions, this gland plate (SKU: AFK12R5) offers exceptional durability and functionality for demanding industrial environments. Constructed from high-quality mild steel with a light gray finish, it provides a sturdy barrier against dust, moisture, and physical impact, ensuring the integrity of your electrical connections. The nVent AFK12R5 gland plate is engineered for ease of installation and customization. Its pre-defined knockout sections allow for the precise creation of openings to accommodate M16, M25, and M32 cable glands, offering flexibility for a wide range of cable diameters and types. This feature significantly simplifies the process of routing cables into control panels, junction boxes, and other electrical enclosures, reducing installation time and labor costs. The precise dimensions of 242x128x3mm ensure a secure and flush fit within standard enclosure cutouts. Key benefits of the nVent AFK12R5 Gland Plate include: * **Customizable Cable Entry:** Easily knock out pre-scored sections to create openings for M16, M25, and M32 cable glands, adapting to your specific cabling needs. * **Durable Construction:** Made from robust mild steel, providing excellent mechanical strength and protection for internal components. * **Environmental Protection:** The light gray finish offers a degree of corrosion resistance and contributes to a clean, professional appearance while helping to maintain IP ratings when properly sealed. * **Simplified Installation:** Designed for straightforward mounting, reducing complexity and time during electrical panel assembly. * **Reliable Manufacturer:** Backed by the quality and innovation of nVent, a globally recognized brand in electrical infrastructure. This gland plate is an essential component for various industrial applications, including: * **Control Panel Manufacturing:** Facilitates organized and secure cable entry into complex control systems. * **Machinery and Equipment:** Protects electrical connections on industrial machinery, ensuring operational reliability. * **Automation Systems:** Integrates seamlessly into automated production lines for efficient power and signal distribution. * **Telecommunications Infrastructure:** Provides secure cable management for sensitive electronic equipment. When selecting a gland plate, professionals consider factors such as material strength, environmental sealing capabilities, and the ease with which cable entries can be created. The nVent AFK12R5 excels in these areas, offering a reliable and cost-effective solution for maintaining the safety and efficiency of your electrical installations. Its design adheres to industry standards, ensuring compatibility with a wide array of nVent cable glands and other enclosure accessories. Invest in the nVent AFK12R5 for superior cable management and long-lasting performance in your critical industrial applications.
  • Durable mild steel construction with light gray finish
  • Pre-scored knockouts for M16, M25, and M32 cable glands
  • Dimensions: 242x128x3mm for standard enclosure integration
  • Facilitates secure and organized cable entry
  • Manufactured by nVent for reliable industrial solutions

Specifications

Application
Power Distribution; Factory Automation and Process Control; Controls and Drives
Application
Factory Automation and Process Control; Controls and Drives
Color
Light Gray
Color Code
RAL 7035
Depth
0.12 in
Depth
3 mm
Enclosure Material
Mild Steel
Finish
Powder Coated
Gland Plate Opening Depth
96 mm
Gland Plate Opening Depth
3.78 in
Gland Plate Opening Width
8.27 in
Gland Plate Opening Width
210 mm
Gland Plate Type
1
Height
242 mm
Height
9.53 in
Knockout Pattern
(12) M16
Material
Mild Steel
Package Quantity
1
Product Family
Wall Mounted
Size
242x128x3mm
Thickness
1.4 mm
Thickness
18 ga
Type
Gland plates
Type
IEC Enclosure Accessories
Weight
0.4 kg
Weight
0.8 lb
Width
5.04 in
Width
128 mm
Works With
IEC
Package Weight (Imperial)
0.800 L
Package Weight (Metric)
0.363 kg
