nVent AFK0618SS6 - Floor Stand Kit, 6.00x18.06 inch, Brushed, Stainless Steel 316
nVent

AFK0618SS6

UPC: 783510272340


Documents & Media
Installation Instructions

Contact for Pricing

Overview

Enhance the versatility and stability of your industrial enclosures with the nVent AFK0618SS6 Floor Stand Kit. Engineered for robust performance and long-term durability, this kit provides a reliable solution for floor mounting or elevating various nVent wall-mount and free-stand enclosures. Crafted from premium Brushed Stainless Steel 316, the AFK0618SS6 offers exceptional corrosion resistance, making it ideal for demanding environments where moisture, chemicals, or harsh atmospheric conditions are prevalent. This material choice ensures longevity and maintains the aesthetic integrity of your installation, even in challenging industrial settings. The nVent AFK0618SS6 Floor Stand Kit is designed for straightforward installation, minimizing downtime and simplifying your project workflow. The kit facilitates secure floor mounting by requiring simple drilling of holes in the bottom of the enclosure. Subsequently, the floor stands are bolted directly to the enclosure, creating a stable and elevated platform. A key advantage of this design is that it is not necessary to remove the existing wall-mount brackets from the enclosure, streamlining the retrofitting process and preserving the enclosure's original mounting configuration if needed. This thoughtful engineering reduces complexity and ensures a secure, professional finish. This floor stand kit is an essential component for a wide range of industrial applications. It is commonly utilized in sectors such as manufacturing, chemical processing, water and wastewater treatment, telecommunications, and power distribution, where reliable and elevated mounting of control panels, electrical cabinets, and sensitive equipment is critical. By elevating enclosures off the floor, you not only improve accessibility for maintenance and inspection but also protect valuable equipment from potential floor-level hazards like water ingress, dust accumulation, and physical impact. The 6.00 x 18.06 inch dimensions provide ample support for a variety of enclosure sizes, ensuring broad compatibility. When selecting floor stands for your critical infrastructure, choosing a trusted manufacturer like nVent is paramount. nVent is renowned for its commitment to quality, innovation, and providing robust solutions that meet stringent industry standards. The AFK0618SS6 exemplifies this dedication, offering a dependable and high-performance mounting option. The Brushed Stainless Steel 316 construction is a testament to the product's suitability for corrosive environments, offering superior longevity compared to standard steel or less resistant alloys. Investing in the nVent AFK0618SS6 Floor Stand Kit ensures the safety, accessibility, and operational continuity of your essential electrical and control systems, providing peace of mind in any industrial setting. Key Features and Benefits: * **Material Excellence:** Constructed from high-grade Brushed Stainless Steel 316 for superior corrosion resistance and durability in harsh environments. * **Simplified Installation:** Designed for easy attachment to nVent enclosures, requiring minimal drilling and no removal of existing wall-mount brackets. * **Enhanced Stability & Elevation:** Provides a secure floor-mounting solution, elevating enclosures to protect from floor hazards and improve accessibility. * **Broad Compatibility:** Suitable for most nVent Wall-Mount or Free-Stand enclosures, offering versatile application potential. * **Trusted Manufacturer:** Backed by nVent's reputation for quality and reliability in industrial enclosure solutions. * **Dimensions:** 6.00 x 18.06 inches, offering substantial support.
  • Each kit includes two stands
  • Two sets of floor stands are recommended for enclosures larger than double door Free-Stand enclosures
  • Easy installation without removing existing wall-mount brackets.
  • Protects enclosures from floor-level hazards and improves accessibility.
  • Ideal for demanding industrial environments and critical infrastructure.

Specifications

Accessory Type
Floor Stand Kits
Application
Controls and Drives;Corrosive Environments;Power Distribution
Application
Corrosive Environments; Power Distribution; Controls and Drives
Color
Unpainted
Finish
Brushed
Height
6 IN
Height
152 mm
Material
Stainless Steel 316L
Material
SS Type 316;Stainless Steel 316L
Modification Services
Yes
Size
6.00x18.06 in
Thickness
51.40mm (2.024")
Thickness
2.66 mm
Thickness
12 ga
Type
Base Mounting for Industrial Enclosures
Weight
24.6 lb
Width
459 mm
Width
18.06 in
Works With
NEMA
Package Dimensions (L x W x H)
26.3 IN x 9.9 IN x 8.2 IN
Package Dimensions (L x W x H)
66.802 cm x 25.146 cm x 20.828 cm
Package Weight (Imperial)
24.600 L
Package Weight (Metric)
11.159 kg
Floor Stand Kit, 6.00x12.06 inch, Brushed, Stainless Steel 316

AFK0612SS6

Floor Stand Kit, 6.00x12.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 6.00x24.06 inch, Brushed, Stainless Steel 316

AFK0624SS6

Floor Stand Kit, 6.00x24.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 6.00x10.06 inch, Brushed, Stainless Steel 316

AFK0610SS6

Floor Stand Kit, 6.00x10.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 6.00x8.06 inch, Brushed, Stainless Steel 316

AFK0608SS6

Floor Stand Kit, 6.00x8.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 12.00x16.06 inch, Brushed, Stainless Steel 316

AFK1216SS6

Floor Stand Kit, 12.00x16.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 12.00x12.06 inch, Brushed, Stainless Steel 316

AFK1212SS6

Floor Stand Kit, 12.00x12.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 12.00x18.06 inch, Brushed, Stainless Steel 316

AFK1218SS6

Floor Stand Kit, 12.00x18.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 12.00x10.06 inch, Brushed, Stainless Steel 316

AFK1210SS6

Floor Stand Kit, 12.00x10.06 inch, Brushed, Stainless Steel 316
Floor Stand Kit, 12.00x8.06 inch, Brushed, Stainless Steel 316

AFK1208SS6

Floor Stand Kit, 12.00x8.06 inch, Brushed, Stainless Steel 316

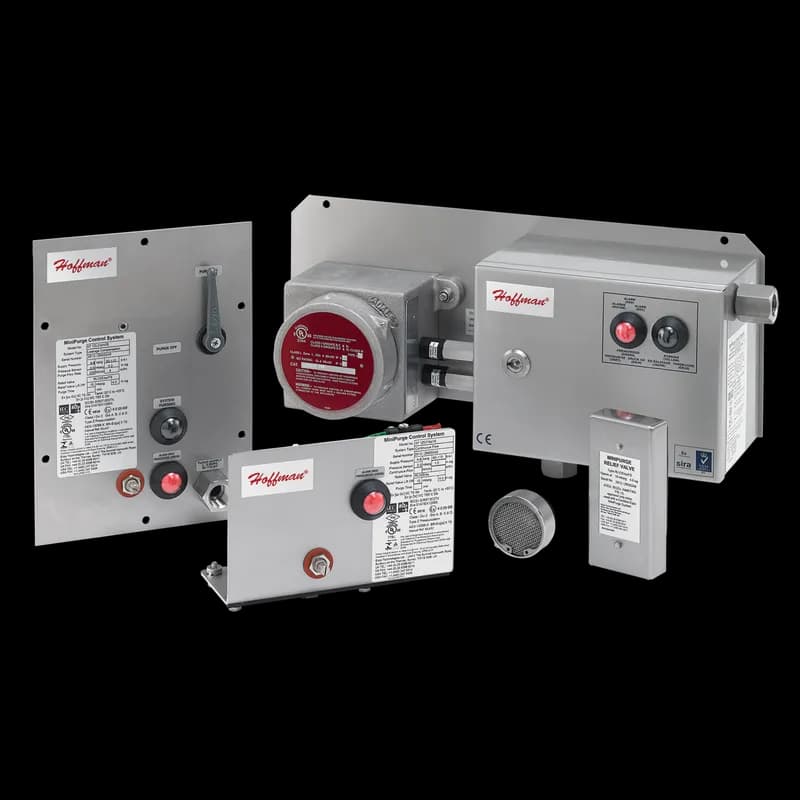

Leak comp., ext.,x(120VAC)

PLCS1X1

Leak comp., ext.,x(120VAC)
Leak comp., ext.,x(230VAC)

PLCS1X2

Leak comp., ext.,x(230VAC)
SSLP/SSLP3PT Replacement Door with 3 Point Latch, Type 4X, fits 30x24, SS 316

Z30248SS63PT

SSLP/SSLP3PT Replacement Door with 3 Point Latch, Type 4X, fits 30x24, SS 316

How to Install the AFK1224SS Enclosure

This guide provides step-by-step instructions for securely installing the AFK1224SS enclosure on a floor stand.

Estimated time: 1h

Tools needed:

Screwdriver, Drill, Torque wrench

Supplies needed:

3/8-inch diameter studs, 3/8−16x1.00 hex head screws, Washers, Nuts, Lockwashers

  1. Verify enclosure depth

    Check the depth of the floor stand (”C” dimension) to ensure it matches the enclosure depth dimension.

  2. Anchor floor studs

    Securely anchor six 3/8-inch diameter studs (not provided with kit) in the floor as shown in the installation diagram.

  3. Drill enclosure holes

    Drill the appropriate hole pattern in the bottom of the enclosure as indicated in the installation diagram.

  4. Bolt floor stand to enclosure

    Using the provided 3/8−16x1.00 hex head screws, washers, and nuts, bolt the floor stand to the enclosure. Firmly tighten all fasteners.

  5. Position the enclosure

    Position the enclosure with the attached floor stands over the anchored floor studs, ensuring the studs extend through the base holes in the floor stands.

  6. Secure floor stands

    Secure the floor stands to the anchored floor studs using 3/8 inch nuts and lockwashers or with 3/8 inch locknuts and washers. Torque to 120 in-lbs.

  7. Check electrical clearances

    WARNING: To avoid electric shock, do not energize any circuits before checking all internal and external electrical and mechanical clearances to ensure safe operation.
