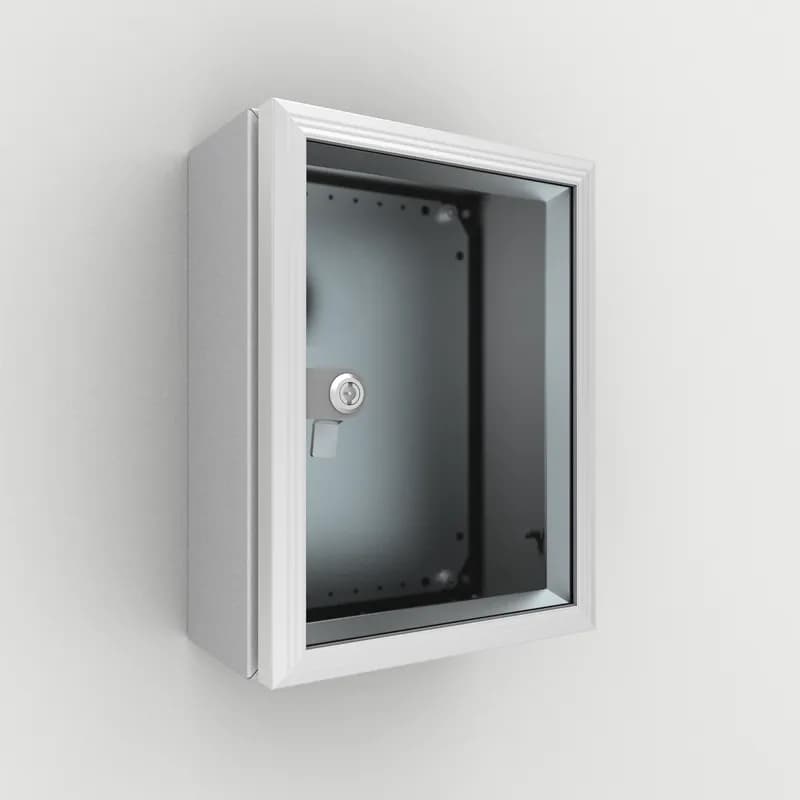

nVent ADAB07050 - Transparent door, 700x500, Aluminium, 3mm double bit lock, IP54
nVent

ADAB07050

UPC: 783510114350

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Overview

The nVent ADAB07050 Transparent Door (SKU: ADAB07050) is an aluminium viewing door designed for industrial enclosures, providing clear visibility of internal components while maintaining IP54 protection against dust and water splashes. This 700x500mm door features a 3mm acrylic glass window and a 3mm double-bit lock for secure access control. The anodised aluminium frame ensures corrosion resistance and durability in harsh environments, while the door’s modular design allows seamless integration with standard enclosure systems. Engineered for applications requiring frequent visual inspection without opening the main enclosure, the ADAB07050 is ideal for control panels, electrical enclosures, automation systems, HVAC, and renewable energy installations. The door increases enclosure depth by 35mm and can also function as a viewing window when paired with the ADABMK mounting kit. Compatible with nVent HOFFMAN’s standard locks, it offers interchangeable security options for flexibility in industrial setups.
  • Description: Viewing window when used in combination with mounting kit ADAMK. The double-bit 3 mm lock can be replaced by any optional insert or handle. It increases the enclosure depth by 10 mm.
  • Material: Aluminium and 3 mm acrylic glass.
  • Finish: Anodised aluminium.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 viewing window.
  • To replace the standard door
  • Can be used in combination with swing frame, modular chassis or inner door
  • The double-bit 3 mm lock can be replaced by any optional insert or handle
  • It increases the enclosures depth by 10 mm (ADA) or 35 mm (ADAB)
  • Can also be used as a viewing window when used in combination with mounting kit ADAMK/ADABMK

Specifications

Depth
1.18 in
Depth
30 mm
Enclosure Material
Mild Steel
Finish
Mill
Height
27.56 in
Height
44 IN
IP Rating
IP54
Latch Quantity
2
Material
aluminium
Material
Aluminum
Number of Locking Devices
2
Product Family
Free-Standing
Size
700x500
Type
Doors
Width
500 mm
Width
19.69 in
Window Size
343 x 366 mm
Window Size
24.49 x 16.61 in
Works With
IEC
Package Dimensions (L x W x H)
27.93 IN x 20.06 IN x 20.31 IN
Package Dimensions (L x W x H)
70.9422 cm x 50.9524 cm x 51.5874 cm
Package Weight (Imperial)
15.200 L
Package Weight (Metric)
6.895 kg
Transparent door, 800x600, Aluminium, 3mm double bit lock, IP54

ADAB08060

Transparent door, 800x600, Aluminium, 3mm double bit lock, IP54
Inspection Window 6.38 x 3.03 x 0.04"

L 08

Inspection Window 6.38 x 3.03 x 0.04"
Universal raintight hubs are rated for outdoor enclosures and come in a variety of sizes for every ABB load center or panel. The TC150 has a diameter of 1.50" and has a base size of 3".

TC150

Universal raintight hubs are rated for outdoor enclosures and come in a variety of sizes for every ABB load center or panel. The TC150 has a diameter of 1.50" and has a base size of 3".
IME VENTED PAGODA TOP 600X800

IPT68

IME VENTED PAGODA TOP 600X800
SINGLE CABLE CLAMP WITH CENTER ROD

54005240

SINGLE CABLE CLAMP WITH CENTER ROD
PVC Coated F Service Head, Threaded Rigid, Conduit Size 1 Inch, Number and Diameter of Knockouts Two at 7/16 Inch, Three at 1/2 Inch, Aluminum,Gray

F385-G

PVC Coated F Service Head, Threaded Rigid, Conduit Size 1 Inch, Number and Diameter of Knockouts Two at 7/16 Inch, Three at 1/2 Inch, Aluminum,Gray
Support fasteners designed to secure conduit and electrical boxes to most structures. Manufactured from steel and spring steel with a pre-galvanized steel construction and Black Claw spring steel fasteners riveted to the part. The product measures 18 in wide, 2-1/8 in high, and 2 in deep, and is designed to mount 4 in square boxes to 1/2 in and 3/4 in conduit.

CBS18KC1234

Support fasteners designed to secure conduit and electrical boxes to most structures. Manufactured from steel and spring steel with a pre-galvanized steel construction and Black Claw spring steel fasteners riveted to the part. The product measures 18 in wide, 2-1/8 in high, and 2 in deep, and is designed to mount 4 in square boxes to 1/2 in and 3/4 in conduit.
Plain door 400x500

ADP04050R5

Plain door 400x500

Frequently Asked Questions

What are the dimensions of the ADAB07050 viewing window?

The viewing window has a height of 27.56 inches and a width of 19.69 inches. The window size itself is 24.49 x 16.61 inches.

What material is the ADAB07050 viewing window made of?

The viewing window is constructed from aluminum and 3 mm acrylic glass, with an anodized aluminum finish.

What is the IP protection rating of the ADAB07050 viewing window?

The ADAB07050 viewing window complies with IP 54 protection standards.

What type of lock does the ADAB07050 viewing window use?

The viewing window comes with a standard double-bit 3 mm lock, which can be replaced with optional inserts or handles.

How does the ADAB07050 viewing window affect enclosure depth?

The viewing window increases the enclosure depth by 10 mm when used with the ADA configuration.

Can the ADAB07050 viewing window be used with other nVent mounting systems?

Yes, it can be used with a swing frame, modular chassis, or inner door, and as a viewing window with mounting kits ADAMK/ADABMK.
