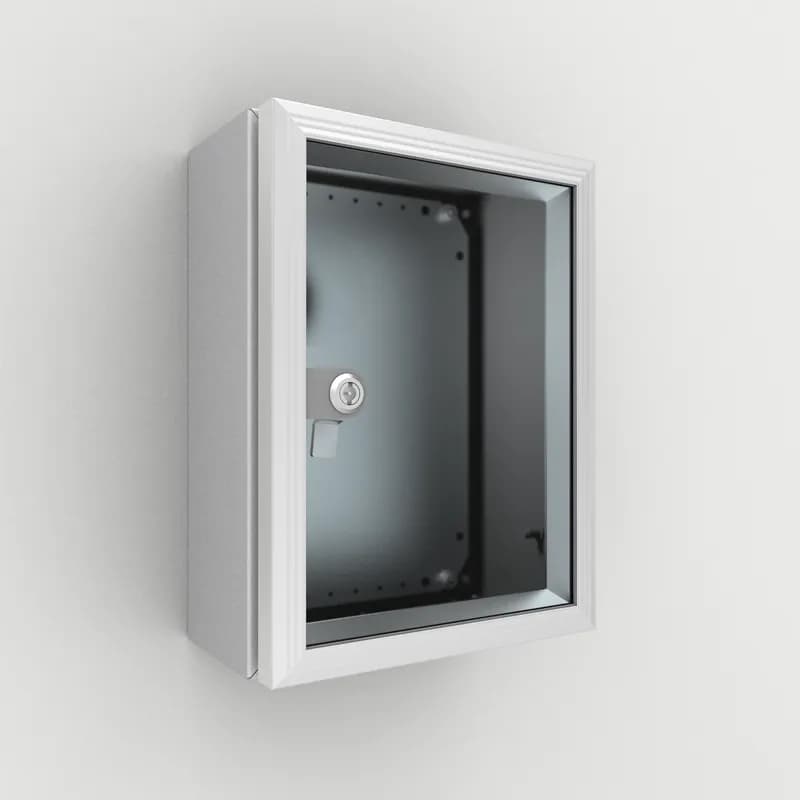

nVent ADAB06080 - Transparent door, 600x800, Aluminium, 3mm double bit lock, IP54

nVent ADAB06080 Transparent door, 600x800, Aluminium, 3mm double bit lock, IP54

UPC: 783510114282

Documents & Media
Specification SheetManufacturer Product Website

Contact for Pricing

Call +1 (262) 252-1600 (toll-free 877-268-3700) or email [email protected] for pricing and availability.

Overview

The nVent ADAB06080 is a transparent door designed for industrial enclosures, measuring 600x800mm. Constructed from durable aluminum, this door features a 3mm thick viewing window, allowing for visual inspection of internal components without compromising environmental protection. It is equipped with a double bit lock for secure access, ensuring that components mounted on the door are safeguarded from the environment and accidental or unauthorized operations. The IP54 rating signifies protection against dust ingress and splashing water, making it suitable for various industrial settings. This design allows for easy operation of components visible through the window by opening only the window itself, while the main enclosure door can remain closed. This feature enhances operational efficiency and maintains the integrity of the enclosure's protective environment. Manufactured by nVent, this transparent door provides a practical solution for monitoring and accessing equipment within industrial enclosures while maintaining a high level of protection. The aluminum construction offers inherent strength and corrosion resistance, further contributing to its longevity in demanding applications. The transparent panel is robust and designed for clarity, ensuring clear visibility of indicators, controls, and other mounted devices.
  • Description: Viewing window when used in combination with mounting kit ADAMK. The double-bit 3 mm lock can be replaced by any optional insert or handle. It increases the enclosure depth by 10 mm.
  • Material: Aluminium and 3 mm acrylic glass.
  • Finish: Anodised aluminium.
  • Protection: Complies with IP 54.
  • Pack quantity: 1 viewing window.
  • To replace the standard door
  • Can be used in combination with swing frame, modular chassis or inner door
  • The double-bit 3 mm lock can be replaced by any optional insert or handle
  • It increases the enclosures depth by 10 mm (ADA) or 35 mm (ADAB)
  • Can also be used as a viewing window when used in combination with mounting kit ADAMK/ADABMK

Specifications

Depth
1.18 in
Depth
30 mm
Enclosure Material
Mild Steel
Finish
Mill
Height
44 IN
Height
23.62 in
Latch Quantity
2
Material
Aluminum
Number of Locking Devices
2
Product Family
Free-Standing
Type
Doors
Width
800 mm
Width
31.5 in
Window Size
343 x 366 mm
Window Size
20.55 x 28.43 in
Works With
IEC
Package Dimensions (L x W x H)
31.87 IN x 24 IN x 32.12 IN
Package Dimensions (L x W x H)
80.9498 cm x 60.96 cm x 81.5848 cm
Package Weight (Imperial)
23.300 L
Package Weight (Metric)
10.569 kg
Transparent door, 600x600, Aluminium, 3mm double bit lock, IP54

ADAB06060

Transparent door, 600x600, Aluminium, 3mm double bit lock, IP54
C ALUMINUM PROFIL 29X19 ADAPTED FOR CADRYS DELTA WIDTH 600

51106032

C ALUMINUM PROFIL 29X19 ADAPTED FOR CADRYS DELTA WIDTH 600
Universal raintight hubs are rated for outdoor enclosures and come in a variety of sizes for every ABB load center or panel. The TC150 has a diameter of 1.50" and has a base size of 3".

TC150

Universal raintight hubs are rated for outdoor enclosures and come in a variety of sizes for every ABB load center or panel. The TC150 has a diameter of 1.50" and has a base size of 3".
IME VENTED PAGODA TOP 600X800

IPT68

IME VENTED PAGODA TOP 600X800
PVC Coated F Service Head, Threaded Rigid, Conduit Size 1 Inch, Number and Diameter of Knockouts Two at 7/16 Inch, Three at 1/2 Inch, Aluminum,Gray

F385-G

PVC Coated F Service Head, Threaded Rigid, Conduit Size 1 Inch, Number and Diameter of Knockouts Two at 7/16 Inch, Three at 1/2 Inch, Aluminum,Gray
Inspection Window 6.38 x 3.03 x 0.04"

L 08

Inspection Window 6.38 x 3.03 x 0.04"
Support fasteners designed to secure conduit and electrical boxes to most structures. Manufactured from steel and spring steel with a pre-galvanized steel construction and Black Claw spring steel fasteners riveted to the part. The product measures 18 in wide, 2-1/8 in high, and 2 in deep, and is designed to mount 4 in square boxes to 1/2 in and 3/4 in conduit.

CBS18KC1234

Support fasteners designed to secure conduit and electrical boxes to most structures. Manufactured from steel and spring steel with a pre-galvanized steel construction and Black Claw spring steel fasteners riveted to the part. The product measures 18 in wide, 2-1/8 in high, and 2 in deep, and is designed to mount 4 in square boxes to 1/2 in and 3/4 in conduit.
Plain door 350x250

ADP03525R5

Plain door 350x250

Frequently Asked Questions

What are the dimensions of the ADAB06080 viewing window?

The viewing window has a height of 23.62 inches and a width of 31.5 inches. The depth it adds to the enclosure is 1.18 inches.

What material is the ADAB06080 viewing window made of?

The viewing window is constructed from anodised aluminium and 3 mm acrylic glass.

What type of lock does the ADAB06080 viewing window use?

It comes with a double-bit 3 mm lock, which can be replaced by optional inserts or handles.

What is the window size of the ADAB06080?

The window size is 20.55 x 28.43 inches.

What is the protection rating of this viewing window?

The viewing window complies with IP 54 protection rating.

How does this viewing window affect enclosure depth?

This viewing window increases the enclosure depth by 10 mm.

What is the latch quantity for this product?

The product has a latch quantity of 2.

How many locking devices are included?

There are 2 locking devices included with this product.

Can components be operated without fully opening the enclosure door?

Yes, components mounted on the enclosure door are protected by the viewing window but can be operated by opening only the viewing window.
