nVent AC03025R5 - Modular Chassis, AC, 280x210x98mm, Light Gray, Mild Steel
nVent

AC03025R5

UPC: 783510113520

Documents & Media
Installation InstructionsVideo Clip

Contact for Pricing

Overview

The nVent AC03025R5 is a mild steel modular chassis designed for industrial control and automation applications. Measuring 280x210x98mm, this chassis provides a secure housing for DIN-rail mountable components. Its construction from robust mild steel ensures durability for demanding industrial settings. The light gray, RAL 7035 structured powder coating offers a clean aesthetic and protection. This chassis facilitates efficient system integration and maintenance by allowing quick mounting of components like PLCs, power supplies, and terminal blocks. The 25mm hole pattern on the frame, according to DIN 43660, aids in component layout and cable management. nVent, a leader in electrical enclosure solutions, ensures this product meets stringent industry standards. Ideal for panel building and field installations, the AC03025R5 contributes to the safety and performance of automation infrastructure.
  • Description: Used for easy mounting of DIN-rail components with a maximum height of 68 mm. Distance between rows 125 mm. If required, the standard enclosure door can be replaced with a glazed door. Usable depth between front cover and external door: 35 mm
  • Material: DIN-rails PP0735 made of 1.2 mm galvanized steel, vertical profiles 1.5 mm mild steel, and front cover 1.5 mm mild steel.
  • Finish: RAL 7035 structured powder coating.
  • Pack quantity: Slotted front panel, two vertical profiles, top and bottom blank panels, one DIN-rail per row, and mounting accessories.
  • Mounting requirements: To be assembled on MAS and ASR enclosures.
  • Mounting requirements: To be assembled on MAS and ASR enclosures

Specifications

Application
Power Distribution; Controls and Drives; Factory Automation and Process Control
Application
Controls and Drives; Factory Automation and Process Control
Color
Light Gray
Color Code
RAL 7035
Depth
3.86 in
Depth
98 mm
Enclosure Material
Mild Steel
Finish
Powder Coated
Height
300 mm
Height
11.02 in
Height
11.81 in
Material
Mild Steel
Module Quantity
16
Mounting Type
DIN-Rail
Package Quantity
1
Product Family
Wall Mounted
Row Quantity
2
Size
280x210x98mm
Thickness
1.2 mm
Thickness
18 ga
Type
IEC Enclosure Accessories
Type
Mounting
Weight
5 lb
Weight
2.3 kg
Width
250 mm
Width
9.84 in
Width
8.27 in
Works With
IEC
Package Dimensions (L x W x H)
12.19 IN x 10.22 IN x 10.47 IN
Package Dimensions (L x W x H)
30.9626 cm x 25.9588 cm x 26.5938 cm
Package Weight (Imperial)
5.000 L
Package Weight (Metric)
2.268 kg
Modular Chassis, AC, 580x360x98mm, Light Gray, Mild Steel

AC06040R5

Modular Chassis, AC, 580x360x98mm, Light Gray, Mild Steel
Modular Chassis, AC, 380x260x98mm, Light Gray, Mild Steel

AC04030R5

Modular Chassis, AC, 380x260x98mm, Light Gray, Mild Steel

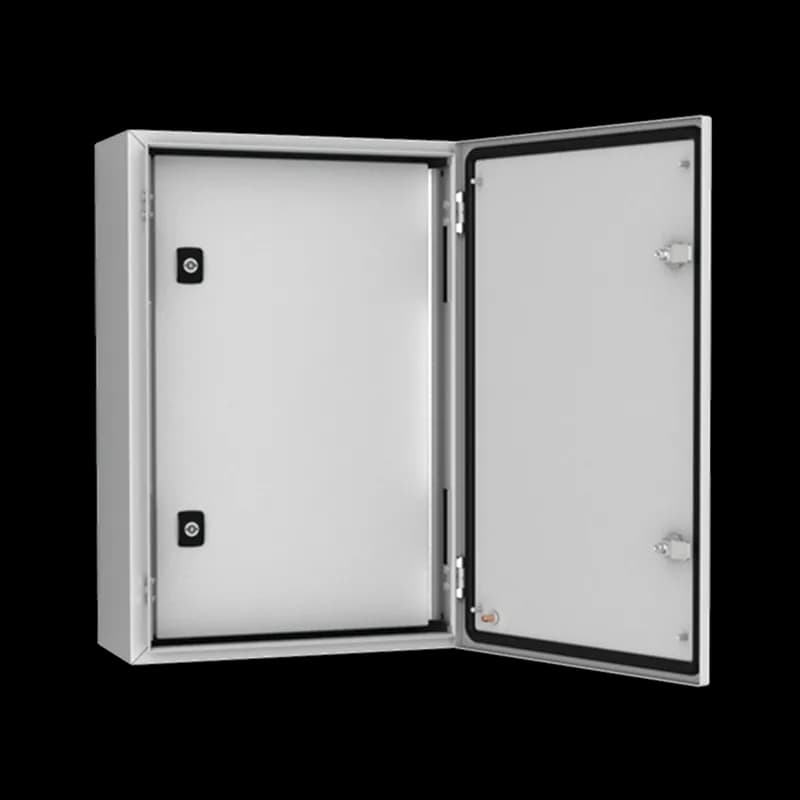

Inner Doors, ADI, 374x261x71mm, Light Gray, Mild Steel
