Contact for Pricing

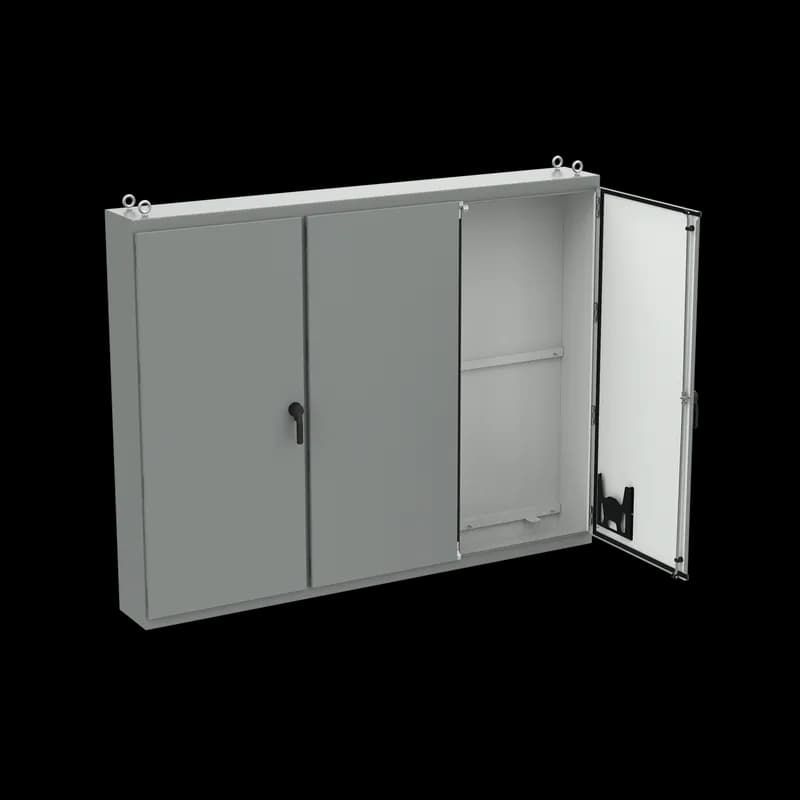

Overview
- Seams continuously welded and ground smooth; no holes or knockouts
- Heavy steel back stiffeners maintain flatness and increase rigidity
- Heavy-duty lifting eyes anchored into reinforced top
- Overlapping, gasketed openings on two-door centerposts
- At two-door openings, gasketed overlapping doors eliminate need for centerposts
- Three-point latches operated by padlocking handle
- Concealed, easy-to-remove hinges
- Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
- Mechanical interlock standard on each enclosure with right-hand door serving as master door; doors can be closed in any order
- Large data pocket is high-impact thermoplastic
Specifications
Application | Controls and Drives;Power Distribution |
Color | Gray |
Color Code | ANSI 61 |
Depth | 511 mm |
Depth | 20.12 |
Depth | 511 |
Door Quantity | 3 |
Door Quantity | 3-3 |
Finish | Powder Coated |
Height | 2,187 mm |
Height | 86.12 |
Height | 2,187 |
Interior Color | White |
IP Rating | IP55 |
Large Panel Quantity | 1 |
Large Panel Size | 1981 x 1778 mm |
Large Panel Size | 78.00 x 70.00 in |
Lifting Eye Quantity | 4 |
Material | Steel |
Material | Mild Steel |
Modification Services | Yes |
NEMA Rating | 12 |
Nema Rating | Type 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Protection Rating | NEMA Type 12 |
Size | 86.12x112.00x20.12 |
Size | 86.12x112.00x20.12 in |
Small Panel Quantity | 1 |
Small Panel Size | 78.00 x 34.00 in |
Small Panel Size | 1981 x 864 mm |
Thickness | 11 ga |
Thickness | 3.04 mm |
Thickness | 51.40mm (2.024") |
Type | Mild Steel Freestanding Industrial Enclosures |
Type Number | Type 12 |
Weight | 1,780 lb |
Width | 112 |
Width | 2,845 |
Width | 2,845 mm |
Package Dimensions (L x W x H) | 124 IN x 28 IN x 93.5 IN |
Package Dimensions (L x W x H) | 314.96 cm x 71.12 cm x 237.49 cm |
Package Weight (Imperial) | 1780.000 L |
Package Weight (Metric) | 807.408 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the Large Grounding Kit
This guide provides step-by-step instructions for installing the Large Grounding Kit securely and correctly.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Terminal connectors
- Mount the grounding kit
Secure the grounding kit to the designated panel using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the grounding wire
Attach the grounding wire to the grounding kit using the terminal connectors. Ensure the connection is tight and secure.
- Verify the installation
Use a multimeter to check the continuity of the grounding connection. Ensure that there are no loose connections and that the grounding is effective.
