Overview

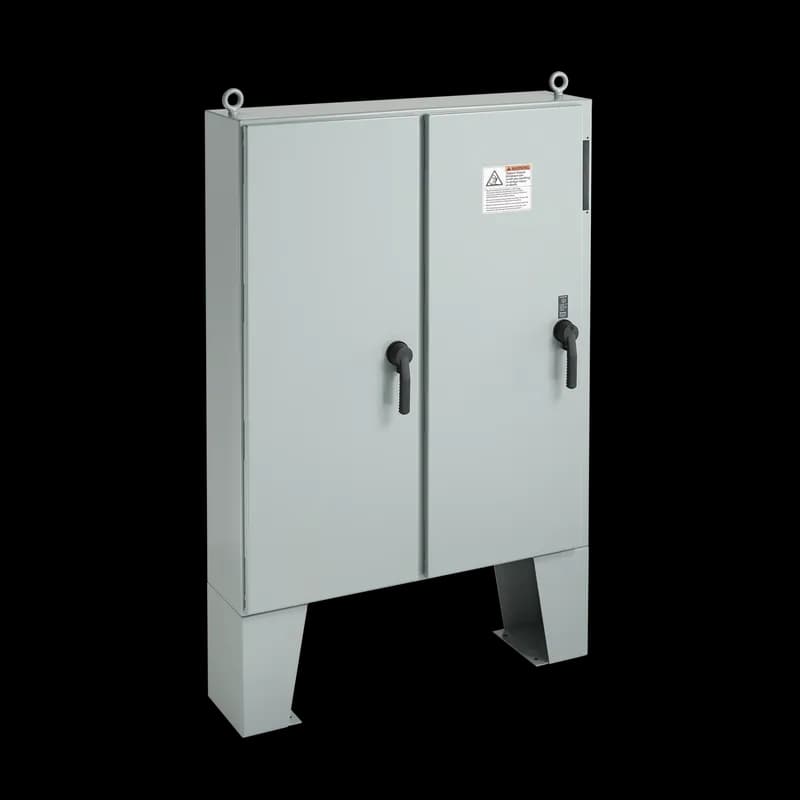

- Seams continuously welded and ground smooth
- Body stiffeners in larger enclosures for extra rigidity
- Body flange trough excludes liquids and contaminants
- Removable centerposts permit easy panel installation
- Concealed, easy-to-remove hinges
- Heavy-duty 3-point latching mechanism operated by padlocking handle on all doors
- Heavy-duty lifting eyes anchor into reinforced top
- Data pocket is high impact thermoplastic
- 15-inch floor stands are bolted-on to enclosure
- Provisions for mounting lights
Specifications
Application | Arc Flash Safety;Controls and Drives;Power Distribution |
Color | Gray |
Conductive Panel | A60P48G |
Depth | 613 mm |
Depth | 24.12 |
Depth | 613 |
Exterior Color | Gray |
Exterior Color Code | ANSI 61 |
Finish | Powder Coated |
Height | 60.12 |
Height | 1,527 |
Height | 1,527 mm |
Interior Color | White |
Ip Rating | IP12 |
IP Rating | IP55 |
Material | Mild Steel |
Material | Steel |
Modification Services | Yes |
Mounting Type | Floorstand |
NEMA Rating | 12 |
Nema Rating | Type 12 |
NEMA Rating | 12 Indoor, dust-resistant |
Panel | A60P48 |
Panel Size | 1422 x 1118 mm |
Panel Size | 56.00 x 44.00 in |
Protection Rating | NEMA Type 12 |
Size | 60.12x49.75x24.12 in |
Size | 60.12x49.75x24.12 inches |
Stiffener Position | None in |
Thickness | 51.40mm (2.024") |
Thickness | 11 ga |
Thickness | 3.04 mm |
Type | Mild Steel Freestanding Industrial Disconnect Enclosures |
Type Number | Type 12 |
Weight | 540 lb |
Width | 1,264 mm |
Width | 49.75 |
Width | 1,264 |
Package Dimensions (L x W x H) | 49.75 IN x 24.12 IN x 60.12 IN |
Package Dimensions (L x W x H) | 126.365 cm x 61.2648 cm x 152.7048 cm |
Package Weight (Imperial) | 540.000 L |
Package Weight (Metric) | 244.944 kg |
BX4
Sealable and transparent protective covers BX4 and non-removable BX4-CA to protect the devices against accidental contact.
LT20D-NEW
1/2 Inch, 90 Degree, Two-Piece Liquidtight Non-Metallic Fitting, UL E32447, Temperatures up to 107 Degrees C, Nitril Rubber O-Ring, PVC, Grey
LN43DA
1/2 Inch, Straight, One-Piece Liquidtight Non-Metallic Fitting, CSA, UL E32447, Temperatures up to 60 Degrees C, PVC, Grey
LH38
Cord Grip with NPT Threads, Locknut Included, NPT Thread Size 3/8 Inch, Cable Range 0.181 Inch/4.6mm to 0.312 Inch/7.9mm, Hole Clearance 0.670 Inch/17.0mm, Thread Length 0.53 Inch/13.5mm, IP68 Rating, Nylon, Black
How to Install the A24R208NK Controller
This guide provides step-by-step instructions for installing and configuring the A24R208NK Controller.
Estimated time: 45m
Tools needed:
Screwdriver, Wire strippers, Multimeter
Supplies needed:
Mounting screws, Wire connectors
- Mount the controller
Secure the A24R208NK controller to the designated mounting surface using the provided mounting screws. Ensure it is level and firmly attached.
- Connect the power supply
Using wire connectors, connect the power supply wires to the designated terminals on the controller. Ensure that the connections are secure and insulated.
- Verify the connections
Use a multimeter to check the voltage at the power terminals to ensure the controller is receiving the correct voltage as specified in the manual.
- Configure the controller settings
Access the controller's configuration menu using the interface. Set the desired parameters according to your application requirements.
- Calibrate the controller
Follow the calibration procedure outlined in the manual to ensure the controller operates accurately. This may involve adjusting settings based on feedback from connected sensors.
